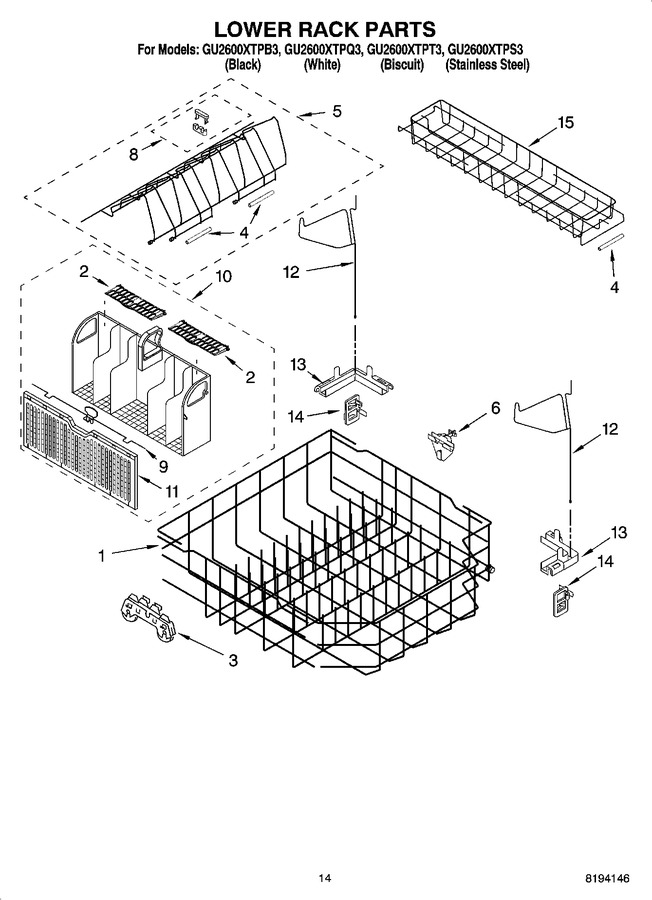

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10311986		Lower Rack Assembly (includes Items 3 & 5)   (Replaces: 8561713)			Immediately	$ 188.14
2	8535078		Lid, Small Items				$ 68.72
3	WP8268645		Wheel & Transport Assembly   (Replaces: 8268645)			Immediately	$ 62.31
4	8539154		Indicator		Appelez-nous	-
5	8562006		Holder, Plate				$ 66.70
6	8269308		Clip, Silverware Basket				$ 94.17
8	3377426		Clip, Plate Holder		Appelez-nous	-
9	8539118		Latch Assembly				$ 31.78
10	W11158802		Silverware Basket Assembly   (Replaces: 8535075)			Immediately	$ 99.66
11	8535077		Door, Silverware Basket				$ 45.49
12	3385108		Support, 3rd Level		Appelez-nous	-
13	3385109		Pivot, Support Top				$ 39.04
14	3385110		Pivot, Support Lower				$ 30.45
15	8562007		Basket,3rd Level (includes Item 4)		Appelez-nous	-
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	N/A		Anti-tip Kit		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 27.77
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)				$ 59.89
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	4317824		Power Cord Kit (includes Powercord & Misc.hardware)			Immediately	$ 19.77
	4396194		Floor Mount Kit				$ 44.03

    View Diagram in Separate Window       Print Part List
