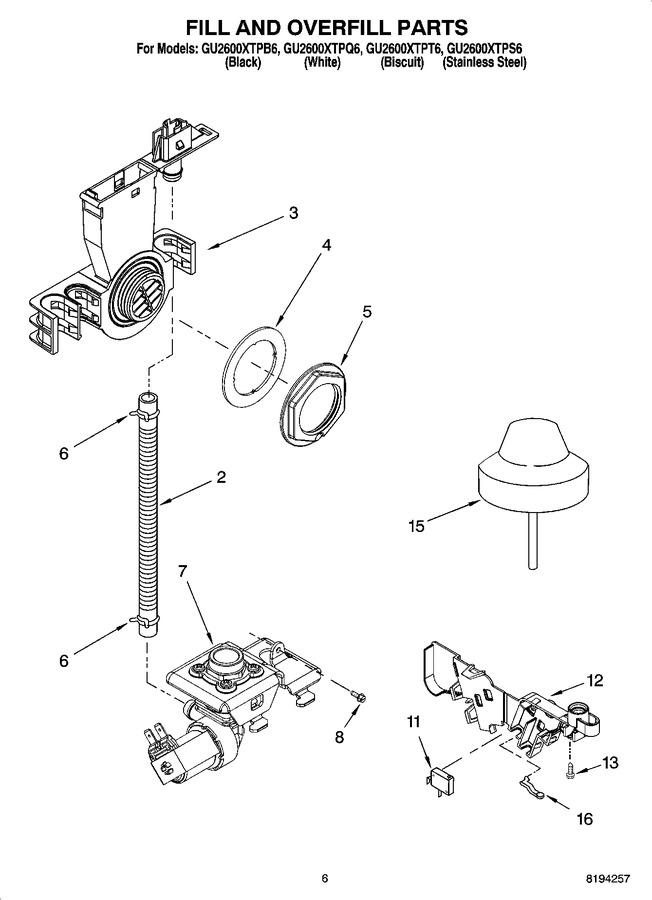

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | W10878507 | Hose, Inlet (Replaces: 8531412) |
|
Immediately | $ 77.06 | ||||
| 3 | WPW10195536 | Water Inlet (also Order Item 4) (Replaces: 8531325) |
|
Immediately | $ 86.31 | ||||
| 4 | WP8531323 | Gasket (Replaces: 8531323) |
|
Immediately | $ 39.11 | ||||
| 5 | WPW10508676 | Nut, Inlet (also Order Item 4) (Replaces: 8531326) |
|
$ 18.43 | |||||
| 6 | WP596669 | Clamp, Hose (Replaces: 371505) |
|
Immediately | $ 8.40 | ||||
| 7 | WP8531669 | Fill Valve Assembly (Replaces: 8531671) |
|
Immediately | $ 72.43 | ||||
| 8 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 7.86 | ||||
| 11 | WP8268909 | Switch, Overfill Control (Replaces: 8268909) |
|
$ 78.15 | |||||
| 12 | WPW10175383 | Standpipe, Overfill (Replaces: 8545881) |
|
$ 85.02 | |||||
| 13 | WP304231 | Screw, (Replaces: 304231) |
|
Immediately | $ 7.75 | ||||
| 15 | WP8268913 | Float & Retainer Assembly (Replaces: 8268913) |
|
Immediately | $ 103.77 | ||||
| 16 | WP8268892 | Lever, Overflow Switch (Replaces: 8268892) |
|
Immediately | $ 54.72 |
