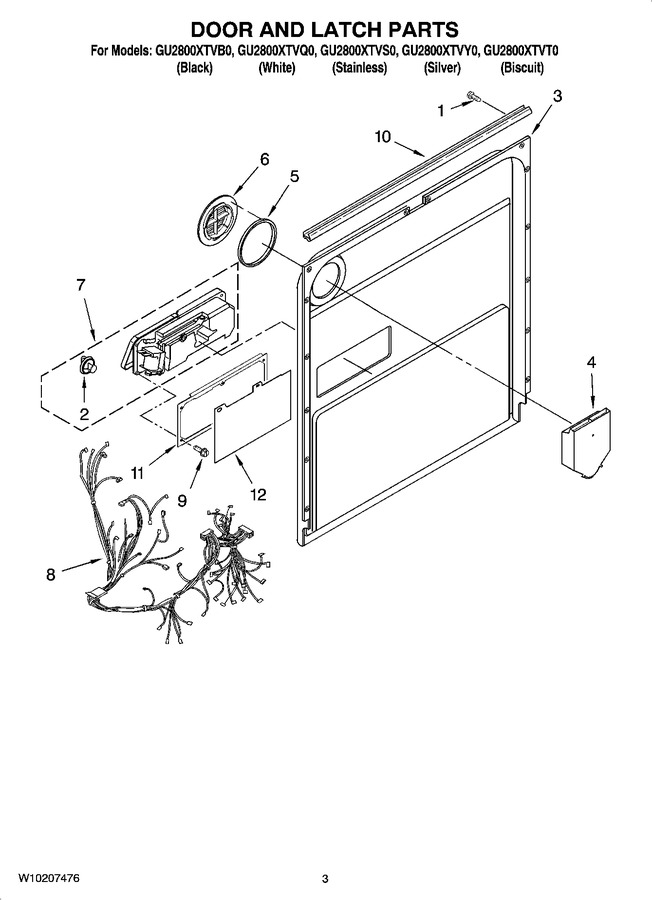

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10348409 | Screw, Door (Replaces: 3369051) |
|
Immediately | $ 7.76 | ||||
| 2 | WP8558307 | Cap, Rinse Aid (Replaces: 8558307) |
|
Immediately | $ 21.27 | ||||
| 3 | W11513966 | Inner Door Mastic Assembly (also Order Item 6) (Replaces: 8575895) |
|
$ 266.67 | |||||
| 4 | WPW10164259 | Vent Assembly (also Order Item 5) (Replaces: W10164259) |
|
$ 198.95 | |||||
| 5 | WP8269259 | Gasket, Vent (Replaces: 8269259) |
|
Immediately | $ 63.50 | ||||
| 6 | 8575893 | Deflector, Vent (also Order Item 5) |
|
$ 30.65 | |||||
| 7 | WPW10199696 | Dispenser, Assembly (Replaces: 8565815) |
|
$ 174.06 | |||||
| 8 | W10137561 | Wiring Harness Main |
|
- | |||||
| 9 | WPW10177098 | Screw (Replaces: 8281154) |
|
Immediately | $ 7.64 | ||||
| 10 | WP8269296 | Seal, Console/door (Replaces: 8269296) |
|
Immediately | $ 179.21 | ||||
| 11 | WPW10462232 | Bracket, Dispenser (Replaces: 8535637) |
|
$ 36.04 | |||||
| 12 | WP8531865 | Shield, Dispenser (Replaces: 8531865) |
|
$ 107.76 |
