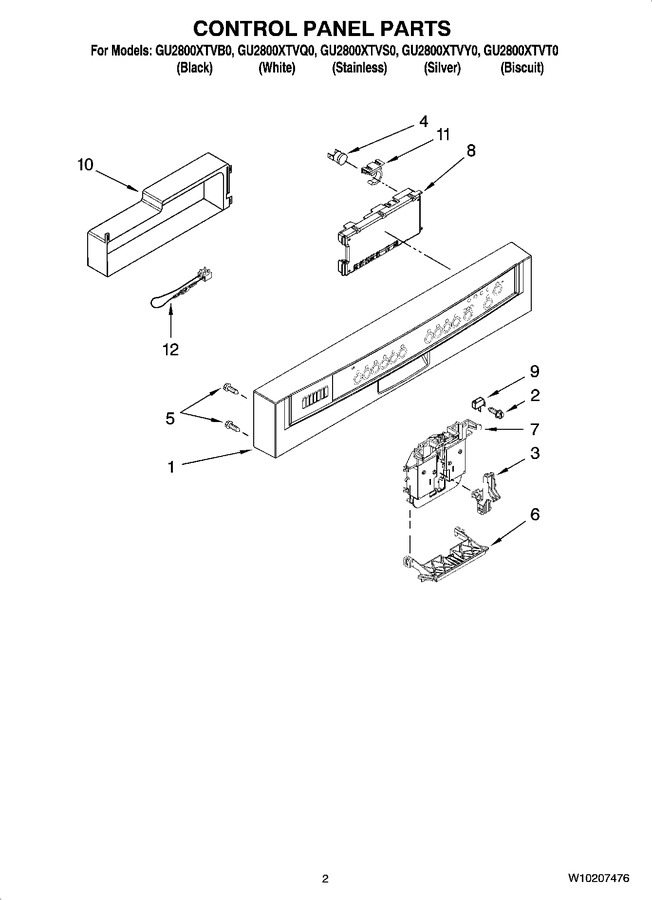

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10175295		Console Asm. (includes Active Overlay & Insert) (white)		Appelez-nous	-
1	W10175297		Console Asm. (includes Active Overlay & Insert) (silver)		Appelez-nous	-
1	W10175296		Console Asm. (includes Active Overlay & Insert) (biscuit)		Appelez-nous	-
1	W10175294		Console Asm. (includes Active Overlay & Insert) (black)		Appelez-nous	-
2	WP3400412		Screw   (Replaces: 3400412)			Immediately	$ 7.56
3	WP8524471		Actuator, Latch   (Replaces: 8524471)			Immediately	$ 96.46
4	W10258275		Bi-metal   (Replaces: 661663)			Immediately	$ 41.71
5	WPW10348409		Screw   (Replaces: 3369051)			Immediately	$ 7.76
6	8575331		Handle, Latch (black)				$ 92.87
6	8575333		Handle, Latch (biscuit)		Appelez-nous	-
6	8575334		Handle, Latch (gray)				$ 101.00
6	8575332		Handle, Latch (white)				$ 41.02
7	8193882		Bolt, Latch   (Replaces: 8524476)			Immediately	$ 114.47
8	WPW10285178		Control, Electronic   (Replaces: W10193580)				$ 263.40
9	WP8269209		Switch, Door   (Replaces: 8269209)			Immediately	$ 41.24
10	W10158350		Cover, Control Shield				$ 26.50
11	8546546		Clip, Bi-metal				$ 7.82
12	WPW10083167		Fuse In-line   (Replaces: W10083167)				$ 66.45
