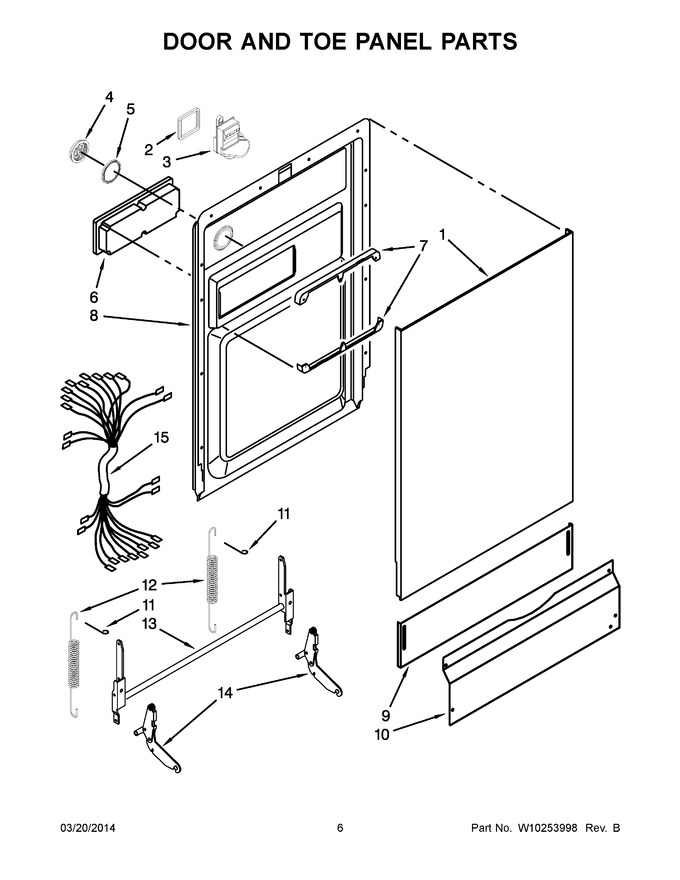

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10221937 | Panel, Door (black) |
|
- | |||||
| 1 | W10221936 | Panel, Door (white) |
|
- | |||||
| 1 | W10221938 | Panel, Door (stainless) |
|
- | |||||
| 2 | W10221906 | Gasket, Vent |
|
- | |||||
| 3 | W10221901 | Vent |
|
- | |||||
| 4 | W10693380 | Deflector |
|
- | |||||
| 5 | W10181554 | Gasket |
|
- | |||||
| 6 | W10221946 | Dispenser |
|
$ 171.95 | |||||
| 7 | W10181616 | Bracket Dispenser |
|
- | |||||
| 8 | W10221995 | Inner Door |
|
- | |||||
| 9 | W10221888 | Panel, Toe (white) |
|
- | |||||
| 9 | W10221889 | Panel, Toe (black) |
|
- | |||||
| 10 | W10221887 | Panel, Access (black) |
|
- | |||||
| 10 | W10221886 | Panel, Access (white) |
|
- | |||||
| 11 | W10221939 | Pin |
|
- | |||||
| 12 | W10221940 | Spring, Door |
|
- | |||||
| 13 | W10221943 | Bracket, Hinge |
|
- | |||||
| 14 | W10181621 | Hinge, Door (left) |
|
- | |||||
| 14 | W10181622 | Hinge, Door (right) |
|
- | |||||
| 15 | W10221957 | Wiring Harness |
|
- |
