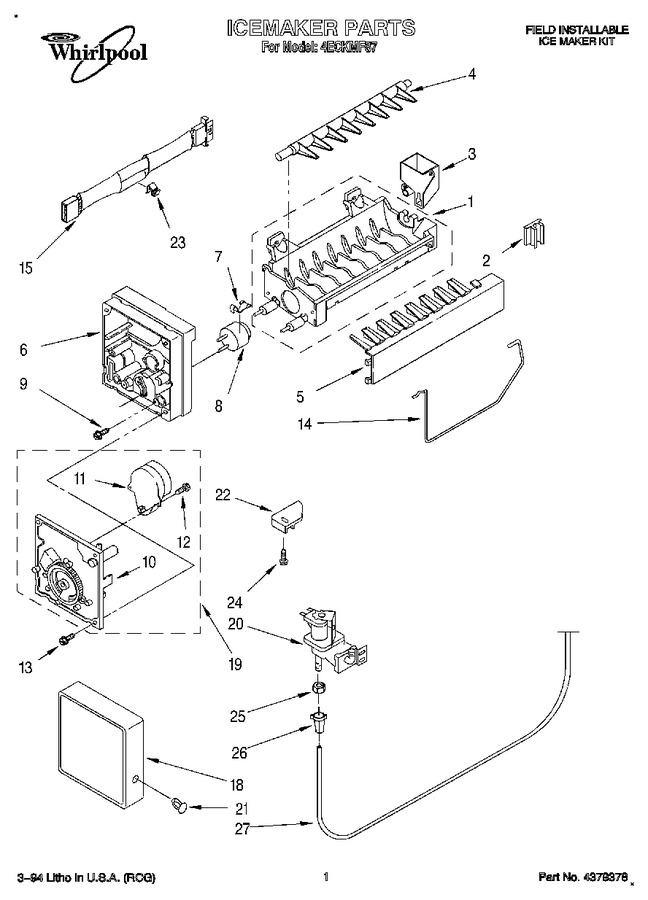

01 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 628282 | Mold & Heater Assembly |
|
- | |||||
| 2 | W11501419 | Clip (Replaces: 2154101) |
|
Immediately | $ 11.52 | ||||
| 3 | WP628356 | Bearing & Inlet (Replaces: 628356) |
|
$ 51.19 | |||||
| 4 | WP627843 | Ejector (Replaces: 627843) |
|
$ 83.60 | |||||
| 5 | WP2182124 | Ice Stripper (Replaces: 627788) |
|
$ 86.05 | |||||
| 6 | WP2195914 | Support (Replaces: 627790) |
|
$ 104.57 | |||||
| 7 | WP2315522 | Retainer, Thermostat (2) (Replaces: 627796) |
|
$ 11.05 | |||||
| 8 | WP627985 | Thermostat (also Order) (Replaces: 627985) |
|
$ 109.18 | |||||
| 8 | 542369 | Cememnt Alumilastic |
|
- | |||||
| 9 | 8533917 | Screw (2) (Replaces: 489322) |
|
$ 13.37 | |||||
| 10 | 628358 | Module, Assembly |
|
- | |||||
| 11 | 11006502 | Motor (Replaces: 628304) |
|
Immediately | $ 19.01 | ||||
| 12 | 489136 | Screw, (2) |
|
$ 10.29 | |||||
| 13 | WP681249 | Screw, (3) (Replaces: 489276) |
|
Immediately | $ 7.86 | ||||
| 14 | WP627792 | Shut Off Arm (Replaces: 627792) |
|
$ 84.53 | |||||
| 15 | WP2187464 | Harness, Wiring (Replaces: 628281) |
|
$ 124.57 | |||||
| 18 | 628329 | Cover |
|
- | |||||
| 19 | 628378 | Module Assembly (includes Items 10, 11 & 12) |
|
- | |||||
| 20 | 2166614 | Valve, Solenoid |
|
- | |||||
| 21 | 489115 | Clip |
|
$ 5.51 | |||||
| 22 | W11500948 | Bracket (Replaces: 628320) |
|
Immediately | $ 32.17 | ||||
| 23 | WP628379 | Clip, Thermal Fuse (Replaces: 628379) |
|
$ 10.57 | |||||
| 24 | WP489478 | Screw (Replaces: 489242) |
|
$ 7.75 | |||||
| 25 | WP627018 | Compression Nut (Replaces: 627018) |
|
$ 10.97 | |||||
| 26 | 4387491 | Insert, Tube (Replaces: 841707) |
|
$ 7.84 | |||||
| 27 | WP627018 | Nut, Compression (Replaces: 627018) |
|
$ 10.97 | |||||
| 27 | 549193 | Clamp, Tube |
|
$ 13.39 | |||||
| 27 | WP488366 | Clamp, Tube (Replaces: 488366) |
|
$ 11.18 | |||||
| 27 | W11501419 | Clip (Replaces: 2154101) |
|
Immediately | $ 11.52 | ||||
| 27 | WP488878 | Clamp, Tube (Replaces: 488878) |
|
$ 11.60 | |||||
| 27 | WP489069 | Screw (Replaces: 489069) |
|
Immediately | $ 7.86 | ||||
| 27 | 1129619 | Accessory Bag, Inside Parts |
|
- | |||||
| 27 | 939027 | Tube, Inlet |
|
- | |||||
| 27 | WP488163 | Screw (2) (Replaces: 488208) |
|
$ 7.54 | |||||
| 27 | WP627712 | Support Clip (Replaces: 627712) |
|
$ 8.72 | |||||
| 27 | W10823511 | Tube, Water (Replaces: 653499) |
|
Immediately | $ 32.41 | ||||
| 27 | W11625904 | Ice Cube Pan (Replaces: 837121) |
|
$ 64.60 | |||||
| 27 | 837122 | Trim Ice Cube Pan |
|
- | |||||
| 27 | 1121997 | Accessory Bag, Outside Parts |
|
- | |||||
| 27 | WP2196157 | Fitting, Water Tube (Replaces: 836489) |
|
Immediately | $ 11.99 | ||||
| 27 | WP1106508 | Seal Gasket (Replaces: 1106508) |
|
Immediately | $ 9.93 | ||||
| 27 | WP489478 | Screw (6) (Replaces: 489242) |
|
$ 7.75 | |||||
| 27 | WPW10141625 | Screw (2) (Replaces: 488649) |
|
$ 21.16 | |||||
| 27 | 4387491 | Insert, Tube (Replaces: 841707) |
|
$ 7.84 | |||||
| 27 | 627858 | Tube Assembly |
|
- | |||||
| 27 | 537588 | Nut, Inlet Valve |
|
- | |||||
| 27 | 628337 | Washer |
|
- | |||||
| 27 | WP2158826 | Dampener (Replaces: 836074) |
|
$ 1.73 | |||||
| 27 | 510716 | Clamp, Tube (zinc) |
|
- | |||||
| LIT2155462 | Instruction Booklet |
|
- | ||||||
| LIT628371 | Modular Icemaker Service Sheet |
|
- |
