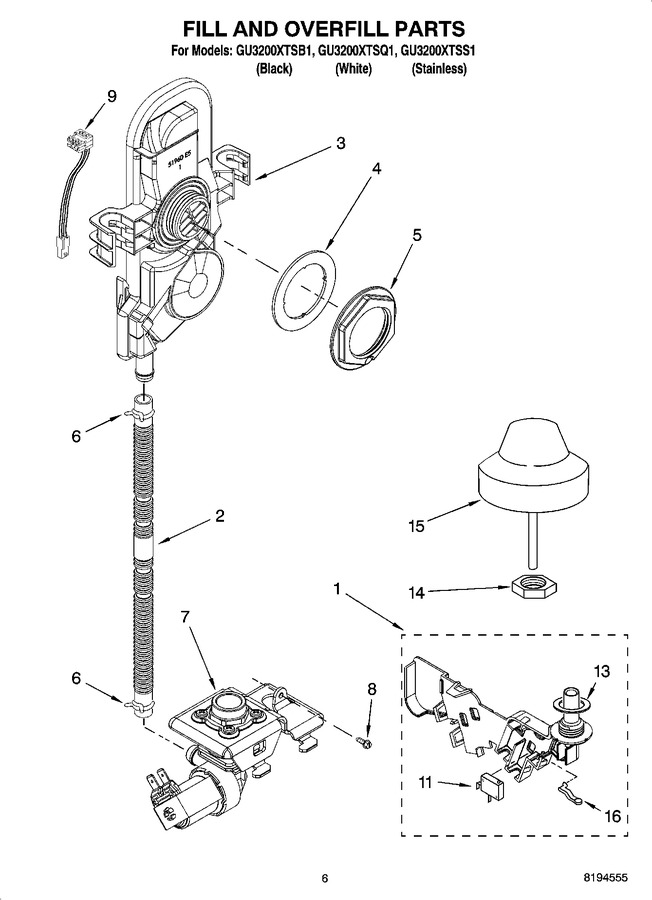

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8193506 | Control, Overfil Assembly (Replaces: 8545946) |
|
Immediately | $ 126.20 | ||||
| 2 | W10041920 | Hose, Inlet |
|
$ 41.43 | |||||
| 3 | W10041900 | Water Inlet (also Order Item 4) |
|
$ 71.36 | |||||
| 4 | WP8531323 | Gasket (Replaces: 8531323) |
|
Immediately | $ 41.07 | ||||
| 5 | WPW10508676 | Nut, Inlet (also Order Item 4) (Replaces: 8531327) |
|
$ 19.35 | |||||
| 6 | WP596669 | Clamp, Hose (Replaces: 371505) |
|
Immediately | $ 8.82 | ||||
| 7 | WPW10158389 | Fill Valve Assembly (Replaces: 8563405) |
|
Immediately | $ 68.49 | ||||
| 8 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 9 | W10070120 | Wire, Jumper |
|
$ 41.30 | |||||
| 11 | WP8268909 | Switch, Overfill Control (Replaces: 8268909) |
|
$ 82.06 | |||||
| 13 | WP8531743 | Gasket, Flat (Replaces: 8531743) |
|
Immediately | $ 47.27 | ||||
| 14 | WP9741998 | Nut, Standpipe (Replaces: 9741998) |
|
$ 7.97 | |||||
| 15 | WP8268895 | Float & Retainer Assembly (Replaces: 8268895) |
|
$ 105.41 | |||||
| 16 | WP8268892 | Lever, Overflow Switch (Replaces: 8268892) |
|
Immediately | $ 57.46 |
