SELECT A DIAGRAM

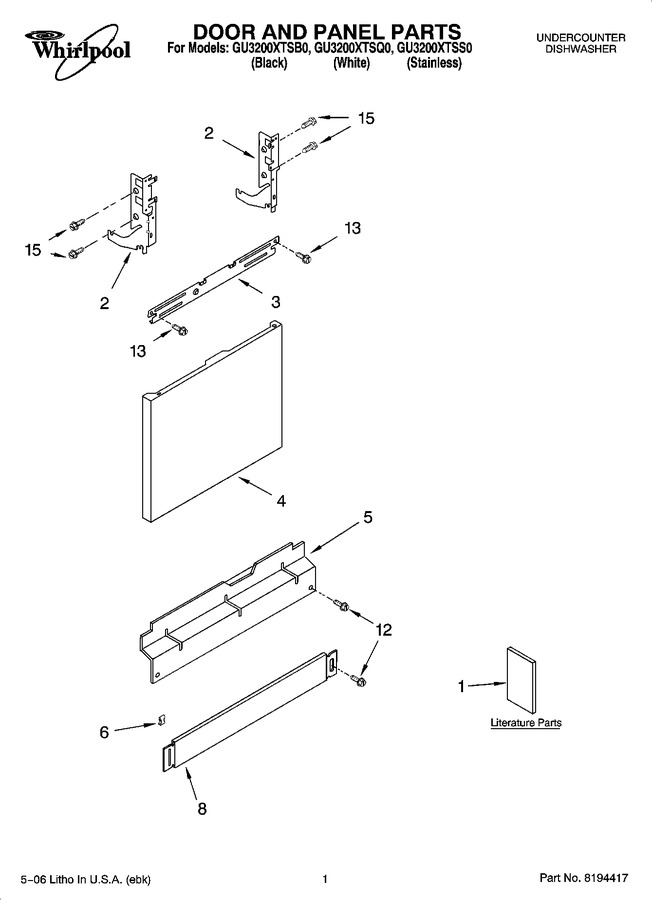

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10021240		Energy Guide		Appelez-nous	-
1	W10021230		Instructions, Installation		Appelez-nous	-
1	8575899		Guide, Use & Care		Appelez-nous	-
1	8572216		Tech Sheet English/french		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 130.98
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 130.98
3	8268983		Stiffener, Door				$ 38.77
4	8269842		Panel Front (white)		Appelez-nous	-
4	W10301571		Panel Front (black)   (Replaces: 8269841)				$ 357.77
4	W10301577		Panel Front (stainless)   (Replaces: 8269845)				$ 365.45
5	WPW10441007		Access Panel (white)   (Replaces: 8573256)				$ 162.80
5	W11763736		Access Panel Black   (Replaces: 8573255)			Immediately	$ 38.79
6	WP8269016		Clip, Grounding   (Replaces: 8269016)				$ 10.68
8	W10871196		Toe Panel (includes Item 6) (black)   (Replaces: 8573286)				$ 165.75
8	WP8573287		Toe Panel (includes Item 6) (white)   (Replaces: 8573287)				$ 165.12
12	WP3400836		Screw (white)   (Replaces: 3400836)				$ 7.53
12	WP302868		Screw Black   (Replaces: 302868)			Immediately	$ 7.75
13	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.86
15	WP3400071		Screw (2)   (Replaces: 3400071)				$ 7.82

    View Diagram in Separate Window       Print Part List
