SELECT A DIAGRAM

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts

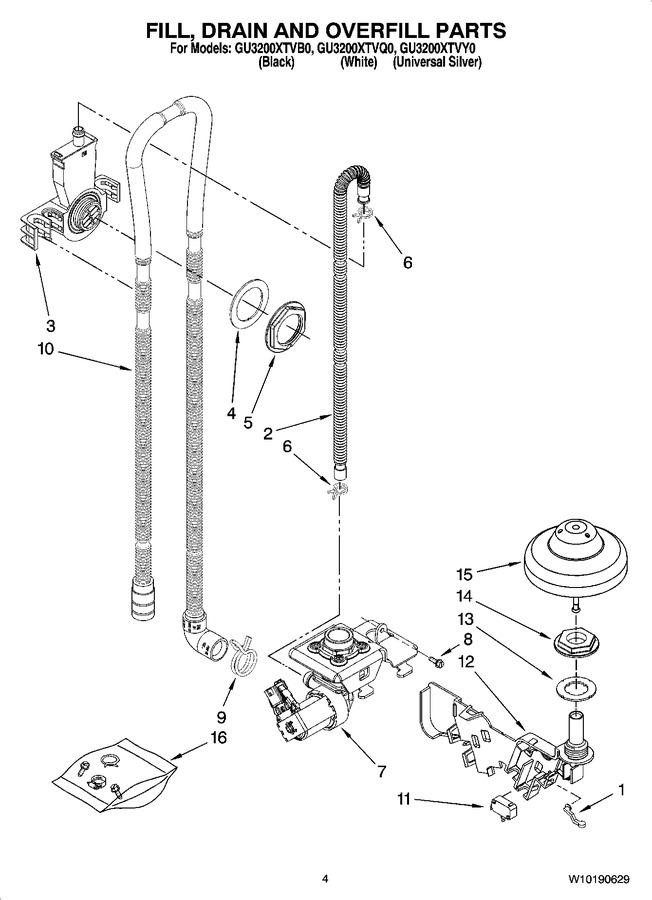

04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8268892		Lever, Overflow   (Replaces: 8268892)			Immediately	$ 57.46
2	W10878507		Hose, Inlet   (Replaces: 8531412)			Immediately	$ 77.06
3	WPW10195536		Water Inlet (also Order Item 4)   (Replaces: 8531325)			Immediately	$ 86.31
4	WP8531323		Gasket   (Replaces: 8531323)			Immediately	$ 41.07
5	WPW10508676		Nut, Inlet (also Order Item 4)   (Replaces: 8531327)				$ 19.35
6	WP596669		Clamp, Hose   (Replaces: 371505)			Immediately	$ 8.82
7	WPW10158389		Fill Valve Assembly   (Replaces: 8563405)			Immediately	$ 68.49
8	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
9	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
10	WPW10545278		Drain Loop With Check Valve   (Replaces: W10137608)			Immediately	$ 74.41
11	WP8268909		Switch, Overfill   (Replaces: 8268909)				$ 82.06
12	8193506		Standpipe, Overfill (also Includes Item 13)   (Replaces: 8545946)			Immediately	$ 126.20
13	WP8531743		Gasket, Flat   (Replaces: 8531743)			Immediately	$ 47.27
14	WP9741998		Nut, Standpipe   (Replaces: 9741998)				$ 7.97
15	WP8268895		Float & Retainer Assembly   (Replaces: 8268895)				$ 105.41
16	WPW10292170		Miscellaneous Parts Bag (includes 2 Screws &2 Hose Clamps)   (Replaces: 8269297)				$ 96.92

    View Diagram in Separate Window       Print Part List
