Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10219606 Console Asm. (includes Active Overlay & Insert) (black) Appelez-nous -
1 W10219607 Console Asm. (includes Active Overlay & Insert) (white) Appelez-nous -
1 W10219608 Console Asm. (includes Active Overlay & Insert) (ultimate Silver) Appelez-nous -
2 8546546 Clip, Bi-metal Special Order $ 7.82

3 WPW10285179 Control, Electronic   (Replaces: W10130968) In-Stock Immediately $ 301.60

4 WPW10134019 Switch, Door   (Replaces: W10134019) Special Order $ 78.79

5 WPW10404412 Latch Assembly   (Replaces: W10077360) In-Stock Immediately $ 81.43

6 W10258275 Bi-metal   (Replaces: 661663) In-Stock Immediately $ 41.71

7 WP8533965 Screw   (Replaces: 8533965) Special Order $ 15.40


    View Diagram in Separate Window     Print Icon   Print Part List

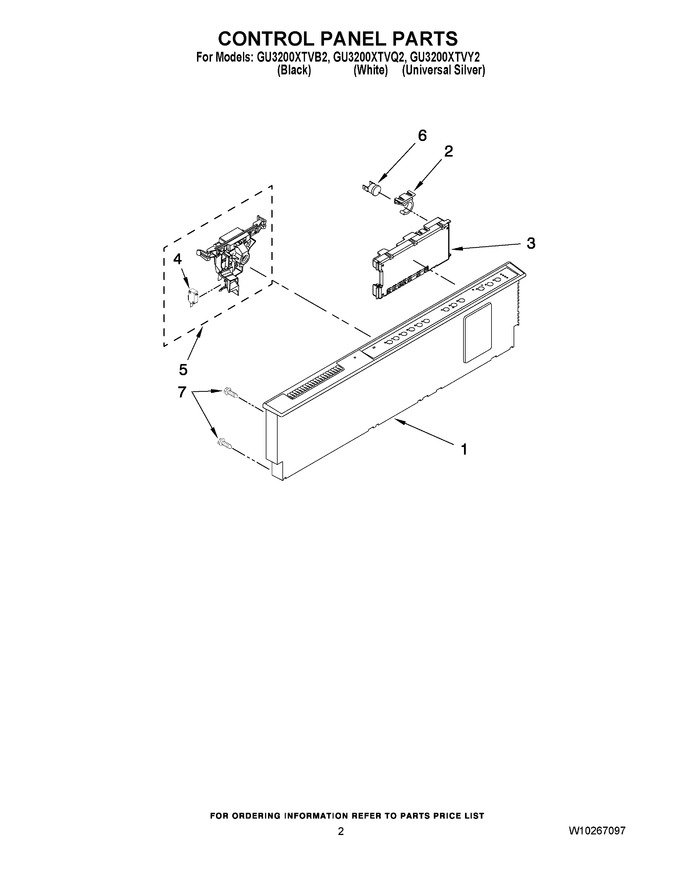

Diagram for GU3200XTVY2
