SELECT A DIAGRAM

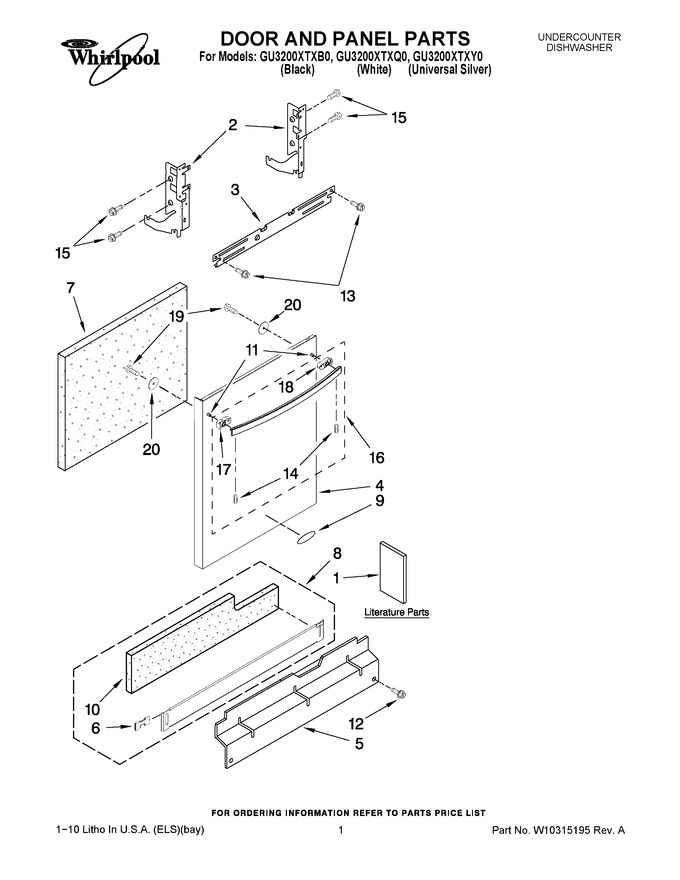

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10142800		Tech Sheet		Appelez-nous	-
1	W10021230		Instructions, Installation		Appelez-nous	-
1	W10290260		Energy Guide		Appelez-nous	-
1	W10142781		Guide, Use & Care English/french		Appelez-nous	-
1	W10142908		Guide, Use & Care Spanish		Appelez-nous	-
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
3	8268983		Stiffener, Door				$ 38.77
4	W10142938		Panel Front (includes Items 9 & 19) (stainless)				$ 170.59
4	W10142936		Panel Front (includes Items 9 & 19) (black)				$ 144.56
4	W10142937		Panel Front (includes Items 9 & 19) (white)				$ 139.46
5	WPW10441007		Access Panel (includes Item 11) (white)   (Replaces: 8573256)				$ 170.94
5	W11763736		Access Panel (includes Item 11) (black)   (Replaces: 8573255)			Immediately	$ 42.25
6	WP8269016		Clip, Grounding   (Replaces: 8269016)				$ 11.21
7	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 96.23
8	W10799406		Toe Panel (includes Items 6 & 10) (white)   (Replaces: W10205337)				$ 170.13
8	W10871196		Toe Panel (includes Items 6 & 10) (black)   (Replaces: W10205336)				$ 174.04
9	W10175320		Name Plate				$ 41.71
10	W10831329		Insulation Toe Panel   (Replaces: W10073540)			Immediately	$ 43.30
11	WP8564951		Studs   (Replaces: 8564951)			Immediately	$ 19.33
12	WP3400836		Screw (white)   (Replaces: 3400836)				$ 8.10
12	WP302868		Screw Black   (Replaces: 302868)			Immediately	$ 8.18
13	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
14	WP8534008		Screw   (Replaces: 8534008)				$ 9.37
15	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
16	W10142999		Handle (black)		Appelez-nous	-
16	W10142998		Handle (stainless)				$ 91.71
16	W10143000		Handle (white)		Appelez-nous	-
17	W10164250		Endcap, Left (midnight Grey)				$ 90.92
17	W10131030		Endcap, Left (white)				$ 55.90
17	W10131028		Endcap, Left (black)				$ 37.29
18	W10130962		Endcap, Right (black)				$ 53.36
18	W10131029		Endcap, Right (white)				$ 54.03
18	W10164249		Endcap, Right (midnight Grey)				$ 49.32
19	W10123421		Screw				$ 12.83
20	W10142904		Plate-backing				$ 50.57

    View Diagram in Separate Window       Print Part List
