Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10727679 Lower Rack Assembly   (Replaces: 8561749) In-Stock Immediately $ 191.39

2 8535078 Lid, Small Items Special Order $ 68.72

3 WP8268713 Wheel & Transport Assembly   (Replaces: 8268713) Special Order $ 94.97

4 8539154 Indicator Appelez-nous -
5 8562068 Tine Row Special Order $ 36.00

6 WP8562058 Clip, Silverware Basket   (Replaces: 8562058) Special Order $ 28.98

7 WP8539124 Retainer, Tinerow   (Replaces: 8539124) Special Order $ 8.26

9 8539118 Latch Assembly Special Order $ 31.78

10 W11158804 Silverware, Basket Assembly   (Replaces: 8562061) In-Stock Immediately $ 79.86

11 8562060 Door, Silverware Basket Special Order $ 7.54

12 8562064 Support, Third Level Appelez-nous -
13 8562065 Pivot, Support Top Appelez-nous -
14 8562066 Pivot, Support Lower Appelez-nous -
15 8562062 Basket, Third Level Appelez-nous -
4392901 Paint, Pressurized Spray (12oz.) (biscuit) Appelez-nous -
72032 Paint, Touch-up 1/2 Oz. (black) In-Stock Immediately $ 18.69

350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 40.12

285006 Paint, Pressurized Spray 12 Oz.) (superior Black) Special Order $ 59.89

799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

4392900 Paint, Bulk (1 Qt.) (biscuit) (uncut) Appelez-nous -
4317824 Power Cord Kit (includes Powercord & Misc.hardware) In-Stock Immediately $ 19.77

N/A Anti-tip Kit Appelez-nous -
8171477 Floor Mount Kit Special Order $ 62.44

8171656 Accessories Side Panel Kits (white) Special Order $ 418.17

8171657 Accessories Side Panel Kits (black) Special Order $ 625.77

72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 12.30

8171658 Accessories Side Panel Kits (biscuit) Appelez-nous -
8171659 Accessories Side Panel Kits (stainless Steel Custom Panel Kits) Special Order $ 705.00

8171555 Accessories Side Panel Kits (black) Appelez-nous -
8171556 Accessories Side Panel Kits (white) Appelez-nous -
8171557 Accessories Side Panel Kits (biscuit) Appelez-nous -
8171558 Accessories Side Panel Kits (grey) Appelez-nous -
4392899 Accessories Side Panel Kits Paint, Touch-up (1/2oz.) (biscuit) In-Stock Immediately $ 27.77

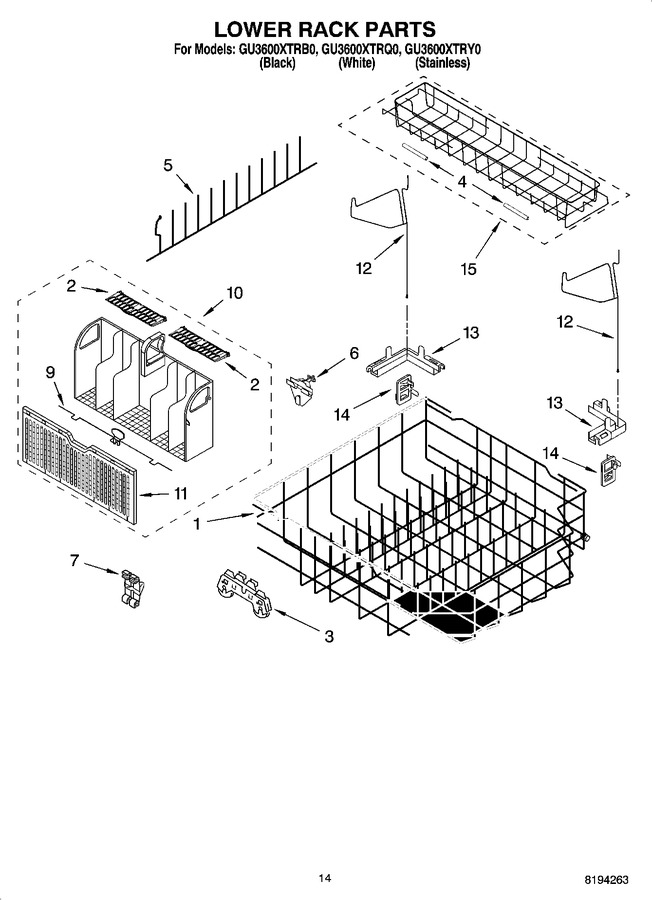

    View Diagram in Separate Window     Print Icon   Print Part List
