SELECT A DIAGRAM

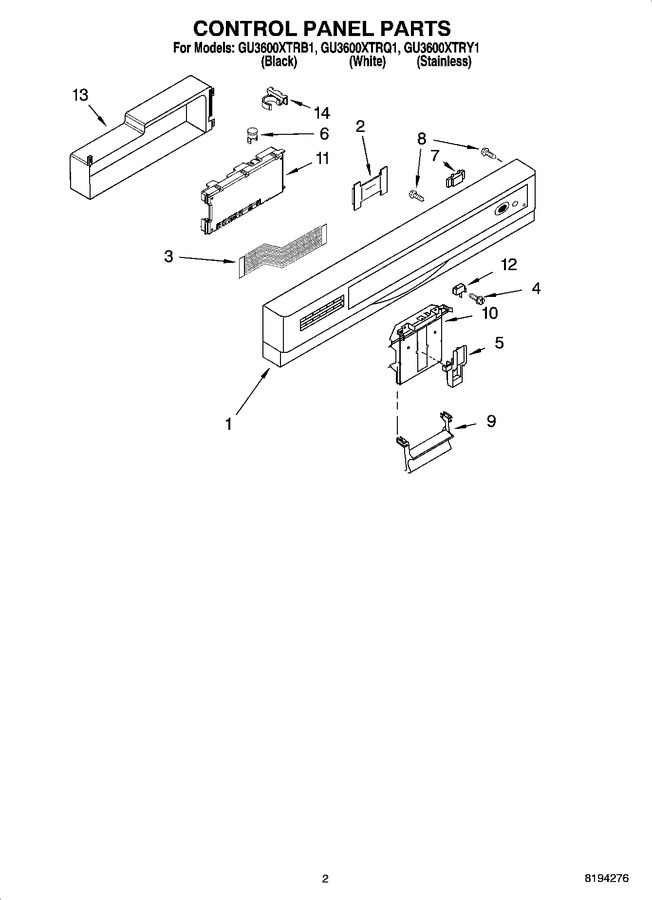

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8575806		Console Asm. (includes Active Overlay & Insert) (black)		Appelez-nous	-
1	8575807		Console Asm. (includes Active Overlay & Insert) (white)		Appelez-nous	-
1	8575808		Console Asm. (includes Active Overlay & Insert) (stainless)		Appelez-nous	-
2	8535571		Board, Interconnect				$ 38.76
3	8535412		Cable, Ribbon		Appelez-nous	-
4	WP3400412		Screw   (Replaces: 3400412)			Immediately	$ 7.56
5	WP8524471		Actuator, Latch   (Replaces: 8524471)			Immediately	$ 96.46
6	W10258275		Fuse, Thermal Electronic   (Replaces: 661663)			Immediately	$ 41.71
7	WP8269206		Display, Dual Digit   (Replaces: 8269206)				$ 128.71
8	WPW10348409		Screw (6)   (Replaces: 3369051)			Immediately	$ 7.76
9	WP8534985		Handle, Latch (white)   (Replaces: 8534985)				$ 121.08
9	WP8534984		Handle, Latch (black)   (Replaces: 8534984)				$ 124.82
10	8193882		Bolt, Latch   (Replaces: 8524476)			Immediately	$ 109.02
11	WPW10084141		Control, Electronic   (Replaces: 8562997)			Immediately	$ 298.74
12	WP8269209		Switch, Door   (Replaces: 8269209)			Immediately	$ 41.24
13	8283512		Cover, Control Shield		Appelez-nous	-
14	8546546		Clip, Bi-metal				$ 7.82

    View Diagram in Separate Window       Print Part List
