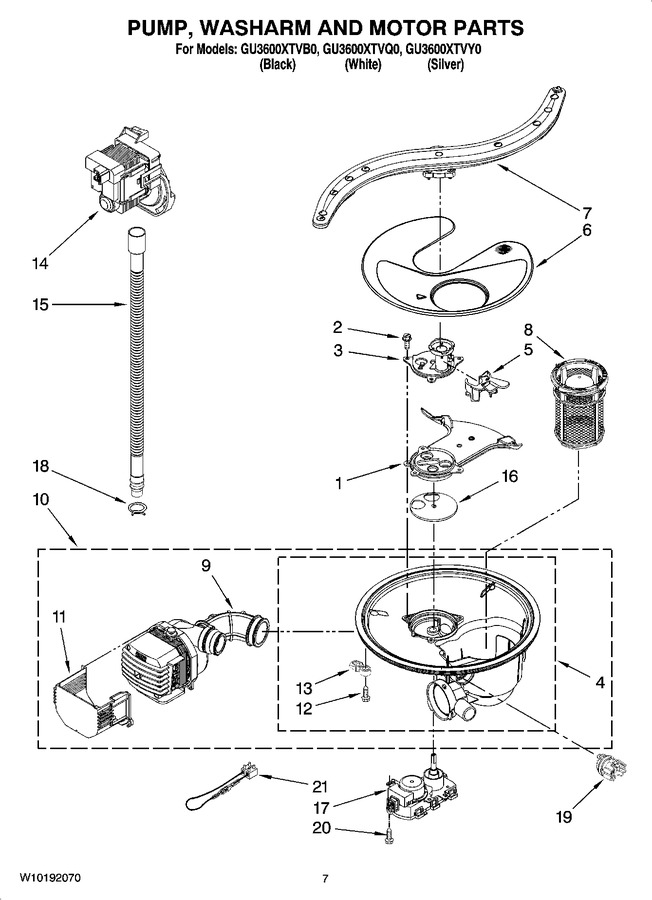

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8579273 | Cover Sleeve |
|
$ 9.47 | |||||
| 2 | 3400069 | Screw |
|
- | |||||
| 3 | 8579234 | Cover, Outlet |
|
$ 6.78 | |||||
| 4 | W10168822 | Sump With Seal (includes Items 12, 13, & 2 Hose Clamps) (Replaces: W10134035) |
|
Immediately | $ 214.98 | ||||
| 5 | 8579246 | Retainer, Feed Tube |
|
$ 8.74 | |||||
| 6 | WP8579253 | Screen (Replaces: 8579253) |
|
Immediately | $ 85.24 | ||||
| 7 | W10142900 | Wash Arm Assembly |
|
$ 163.88 | |||||
| 8 | W10872845 | Filter Cup, Assembly (Replaces: W10056426) |
|
Immediately | $ 55.08 | ||||
| 9 | 8579311 | Hose, Inlet (includes 3 Hose Clamps) |
|
- | |||||
| 10 | W10056431 | Motor & Sump Assy. (includes Item 21) |
|
$ 275.91 | |||||
| 11 | 8579272 | Shield, Motor |
|
$ 85.75 | |||||
| 12 | WPW10348407 | Screw (Replaces: 3400072) |
|
$ 7.69 | |||||
| 13 | WPW10372113 | Tab, Sump (Replaces: 8579289) |
|
Immediately | $ 27.96 | ||||
| 14 | WPW10348269 | Pump, Drain (Replaces: W10158351) |
|
Immediately | $ 97.46 | ||||
| 15 | 8269144A | Hose, Drain (Replaces: 8269144) |
|
Immediately | $ 27.66 | ||||
| 16 | 8579251 | Disc-valve Diverter |
|
$ 12.46 | |||||
| 17 | W10155344 | Motor, Diverter Valve (includes Item 21) (Replaces: W10208691) |
|
Immediately | $ 132.94 | ||||
| 18 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 19 | WPW10705575 | Optical Water Indicator (Replaces: W10134017) |
|
Immediately | $ 43.81 | ||||
| 20 | WP9741232 | Screw (Replaces: 9741232) |
|
Immediately | $ 5.07 | ||||
| 21 | WPW10083167 | Fuse In-line (Replaces: W10083167) |
|
$ 66.45 |
