SELECT A DIAGRAM

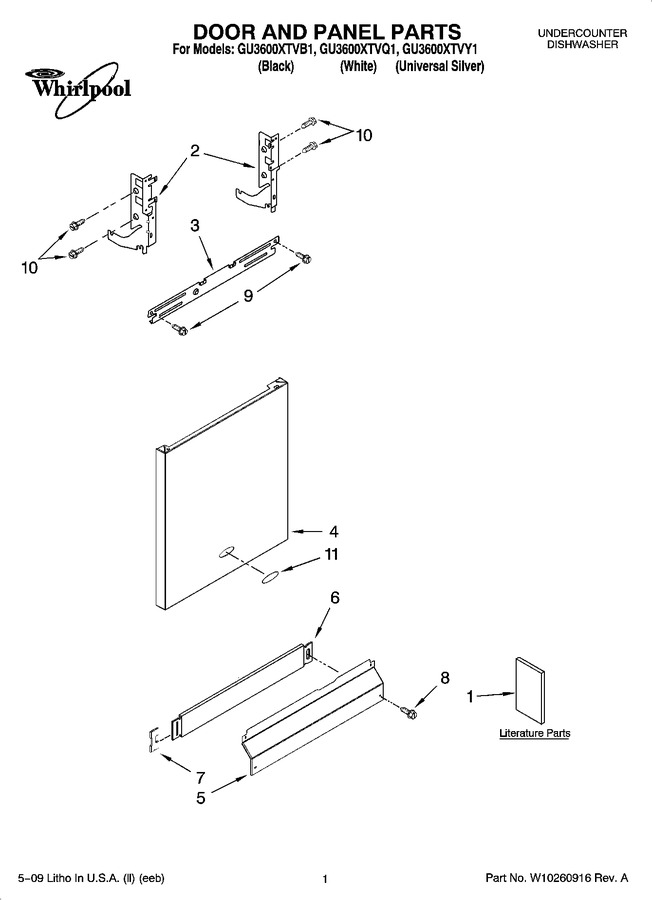

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump, Washarm And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10021230		Instructions, Installation		Appelez-nous	-
1	W10142784		Energy Guide		Appelez-nous	-
1	W10142816		Guide, Use & Care (english/french)		Appelez-nous	-
1	W10142909		Guide, Use & Care (spanish)		Appelez-nous	-
1	W10142826		Tech Sheet (english)		Appelez-nous	-
1	W10158347		Tech Sheet (french)		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
3	8268983		Stiffener, Door				$ 38.77
4	W10102677		Panel Front (white)		Appelez-nous	-
4	W10102676		Panel Front (black)		Appelez-nous	-
4	W10102680		Panel Front (stainless)		Appelez-nous	-
5	W11763736		Access Panel Black   (Replaces: 8573255)			Immediately	$ 42.25
5	WPW10441007		Access Panel (white)   (Replaces: 8573256)				$ 170.94
6	W10871196		Toe Panel (includes Item 7) (black)   (Replaces: 8573286)				$ 174.04
6	WP8573287		Toe Panel (includes Item 7) (white)   (Replaces: 8573287)				$ 177.69
7	WP8269016		Clip, Grounding   (Replaces: 8269016)				$ 11.21
8	WP302868		Screw Black   (Replaces: 302868)			Immediately	$ 8.18
8	WP3400836		Screw (white)   (Replaces: 3400836)				$ 8.10
9	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
10	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
11	W10175320		Name Plate				$ 41.71

    View Diagram in Separate Window       Print Part List
