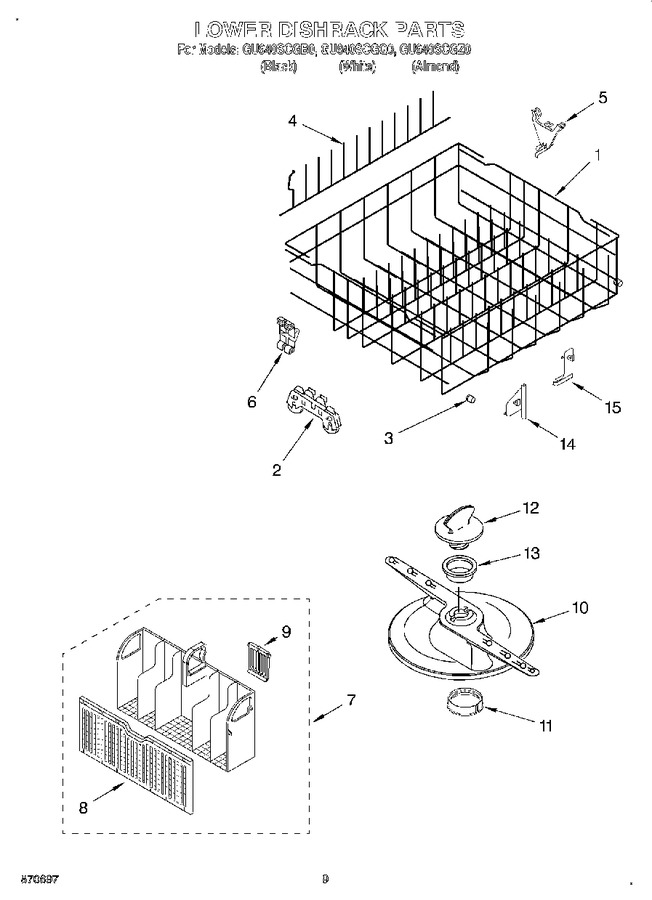

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10311986 | Dishrack, Lower (Replaces: 8051113) |
|
Immediately | $ 188.14 | ||||
| 2 | WP3376961 | Wheel & Transport Assembly (Replaces: 3376961) |
|
$ 98.69 | |||||
| 3 | WP3385142 | Bumper (Replaces: 3368006) |
|
$ 94.82 | |||||
| 4 | W10728160 | Tinerow, Folding (Replaces: 8051250) |
|
Immediately | $ 49.07 | ||||
| 5 | 3379955 | Pivot, Folddown |
|
$ 25.40 | |||||
| 6 | 3368629 | Retainer, Tinerow |
|
$ 5.84 | |||||
| 7 | 3380872 | Silverware Basket Asembly |
|
- | |||||
| 8 | 3380874 | Door, Silverware Basket |
|
- | |||||
| 9 | 3380876 | Lid, Silverware Basket |
|
- | |||||
| 10 | WP8268874 | Sprayarm, Lower (Replaces: 3379363) |
|
$ 127.32 | |||||
| 11 | WP3376846 | Seal, Lower Sprayarm (Replaces: 3376846) |
|
Immediately | $ 10.12 | ||||
| 12 | WP9742945 | Nut, Sprayarm (Replaces: 9742945) |
|
Immediately | $ 5.93 | ||||
| 13 | WP9742946 | Bearing, Radial (Replaces: 9742946) |
|
Immediately | $ 26.80 | ||||
| 14 | 8051187 | Clip, Silverware Basket (left) |
|
- | |||||
| 15 | 8051188 | Clip, Silverware Basket (right) |
|
- |
