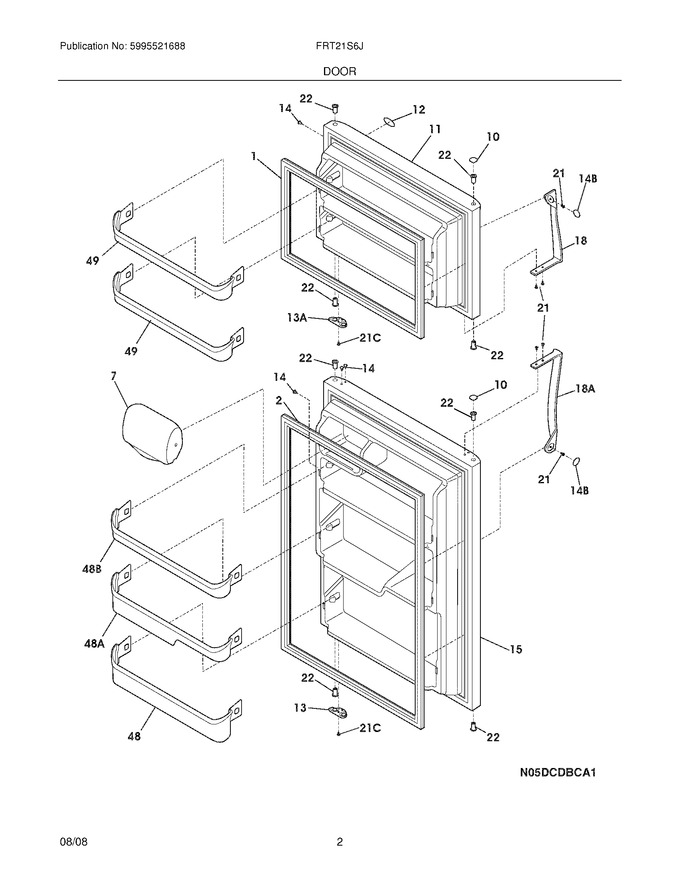

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241872505		Gasket-frzr Door,white ,magnetic				$ 219.04
7	240337712		Door-dairy,w/o Graphics ,clear   (Replaces: 240337703)			Immediately	$ 40.45
10	240381302		Plug-button,bisque ,hinge Brg Hole ,(2)				$ 19.06
11	241798406		Door-frzr,bisque ,complete Assy		Appelez-nous	-
12	241808601		Label-nameplate				$ 14.10
13	240312423		Door Stop,bisque ,ref   (Replaces: 240312407)				$ 13.48
14	240494002		Plug-button,bisque				$ 41.12
15	241798506		Door-refr,bisque ,complete Assy		Appelez-nous	-
18	240339204		Handle-door,bisque Refr-lh/frzr-rh		Appelez-nous	-
21	5304515677		Screw,truss Hd Quad ,no.10-16 X .500 ,zinc   (Replaces: 240383406)			Immediately	$ 21.37
22	5304507146		Bearing-hinge,natural Color   (Replaces: 240527101)			Immediately	$ 8.43
48	240338101		Bin-door,pseudo ,bottom			Immediately	$ 58.19
49	240495804		Bin-door,pseudo ,frzr			Immediately	$ 48.10
13A	240312408		Door Stop,bisque ,frzr		Appelez-nous	-
14B	240383602		Plug-button,bisque ,door Handle				$ 8.84
18A	240339209		Handle-door,bisque Refr-rh/frzr-lh		Appelez-nous	-
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 15.75
48A	240337901		Bin-door,refr			Immediately	$ 57.92
48B	240338001		Bin-door,pseudo ,gallon ,refr			Immediately	$ 38.84
F2	242193213		Gasket,refr Door Seal ,white ,magnetic   (Replaces: 241872513)			Immediately	$ 211.36
