Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP3351614 Screw, 10-24 X 3/8   (Replaces: 3428971) In-Stock Immediately $ 7.30

2 8054767 Switch, Pressure (recirculation-marked ``fld``) Appelez-nous -
3 WP304231 Screw, 8-16 X 1/2   (Replaces: 304231) In-Stock Immediately $ 8.14

4 8299690 Bracket, Control Appelez-nous -
5 661646 Control, Motor (electronic) Appelez-nous -
6 WP353244 Hose, Pressure Switch (2)   (Replaces: 8054454) In-Stock Immediately $ 59.93

7 8299683 Cap, End (l.h.) (white) Appelez-nous -
7 8299684 Cap, End (l.h.) (biscuit) Appelez-nous -
7 8299685 Cap, End (l.h.) (pewter) Appelez-nous -
8 8054766 Switch, Pressure (operating - Marked ``opr``) Appelez-nous -
9 8299673 Panel, Console (pewter) Appelez-nous -
9 8299672 Panel, Console (pearl) Appelez-nous -
10 8299686 Cap, End (r.h.) (white) Appelez-nous -
10 8299687 Cap, End (r.h.) (biscuit) Appelez-nous -
10 8299688 Cap, End (r.h.) (pewter) Appelez-nous -
11 661640 Control, Machine (electronic) Appelez-nous -
12 1166054 Screw Appelez-nous -
14 8299818 Harness, Wiring Appelez-nous -
15 8299987 Panel, Rear (console) Appelez-nous -
16 WP693995 Screw   (Replaces: 693995) In-Stock Immediately $ 7.55

18 8055297 Clip, Pressure Hose Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

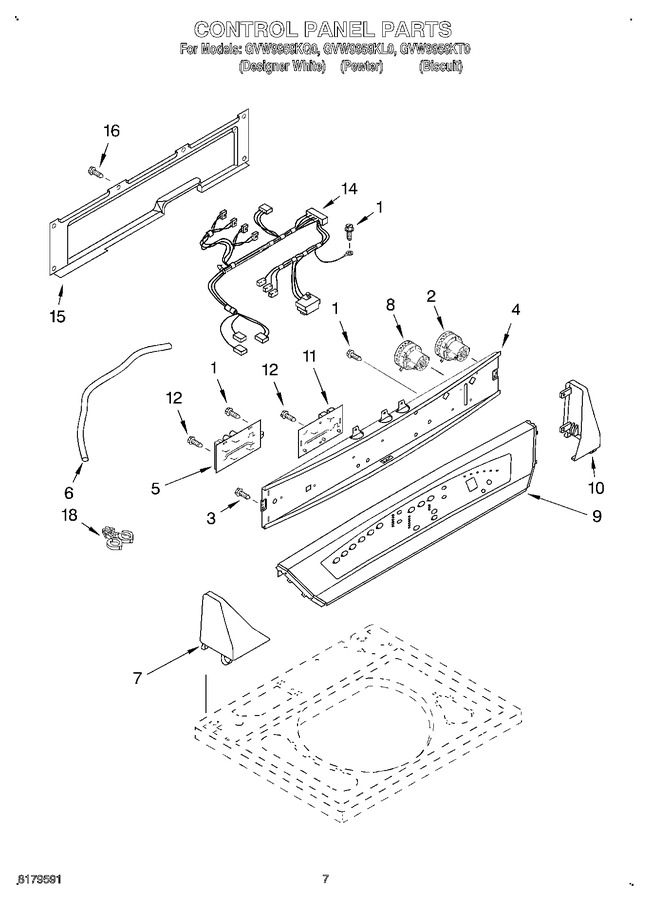

Diagram for GVW9959KL0
