01 - Top And Lid Parts


02 - Cabinet And Frame Parts


03 - Washplate, Basket And Tub Parts


04 - Control Panel Parts


05 - Brake, Motor And Pump Parts


06 - Suspension Parts


07 - Brake And Drive Tube Parts

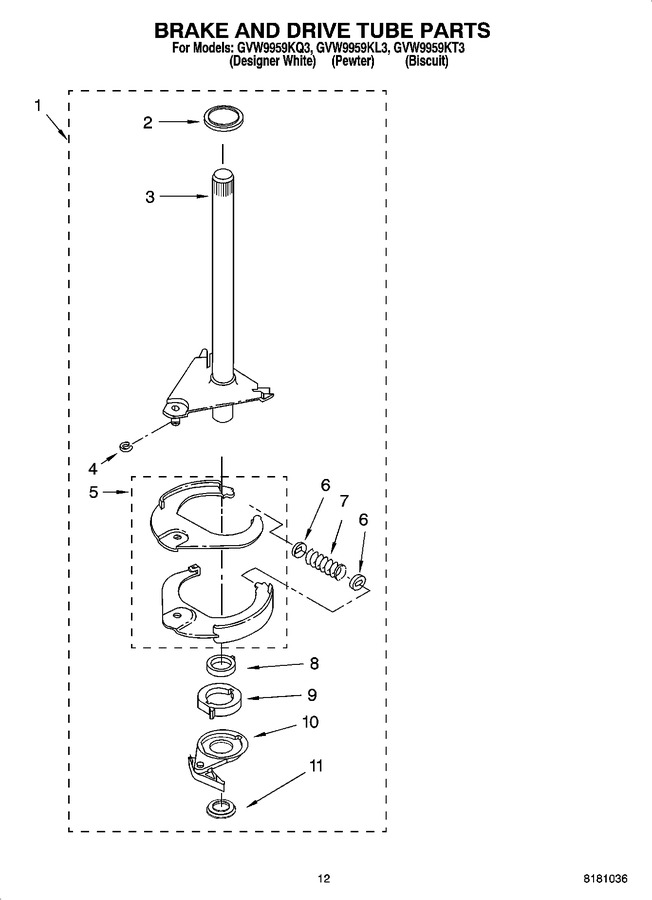

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8271972		Tube Assembly (complete)				$ 175.48
2	9724189		Ring, Thrust		Appelez-nous	-
3	8318243		Tube, Spin				$ 125.90
4	W10083190		Ring, ``e``   (Replaces: 64035)				$ 11.70
5	8271887		Shoe, Brake		Appelez-nous	-
6	8055260		Cap, Brake Spring (2)		Appelez-nous	-
7	8271969		Spring, Brake		Appelez-nous	-
8	8055314		Sleeve, Cam		Appelez-nous	-
9	8546463		Cam, Brake Release				$ 7.27
10	8054992		Driver, Brake Cam		Appelez-nous	-
11	8282568		Bearing, Thrust (upper)		Appelez-nous	-
	WP384496		Coupling, Hose   (Replaces: 384496)				$ 90.39
	WP285195		Sealer, Gasket (20 Fl. Oz.) (6 Ml)   (Replaces: 285195)			Immediately	$ 109.61
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	285208		Lubricant (use Only In Brake Shoe Assembly On Roller An D Pin)				$ 41.86
	285834		Siphon Break				$ 115.42
	285835		Hose Connector			Immediately	$ 64.18
	N/A		Installation Kit		Appelez-nous	-
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	WP4396174		Paint, Touch-up (1/2oz.) (pewter)   (Replaces: 4396174)				$ 29.61
	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 27.77
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	4396175		Paint, Pressurized Spray (12 Oz.) (pewter)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
