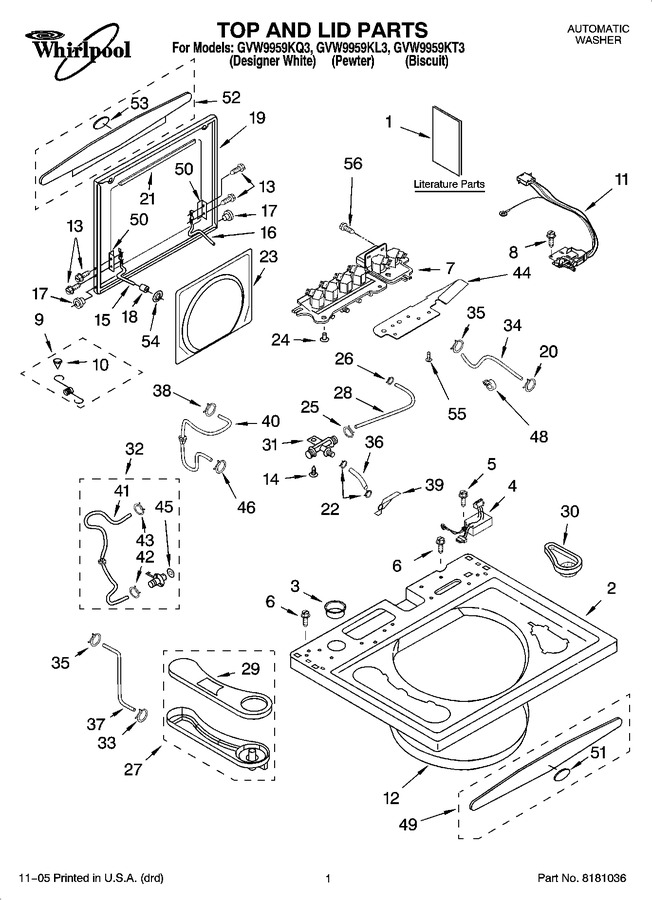

01 - Top And Lid Parts


02 - Cabinet And Frame Parts


03 - Washplate, Basket And Tub Parts


04 - Control Panel Parts


05 - Brake, Motor And Pump Parts


06 - Suspension Parts


07 - Brake And Drive Tube Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8530143		Tech Sheet		Appelez-nous	-
1	3957469		Energy Guide		Appelez-nous	-
1	8530145		Wiring Diagram		Appelez-nous	-
1	8578239		Use & Care Guide		Appelez-nous	-
2	8318131		Top (biscuit)		Appelez-nous	-
2	8318132		Top (pewter)		Appelez-nous	-
2	8318130		Top (white)		Appelez-nous	-
3	8300010		Bushing, Harness		Appelez-nous	-
4	8528338		Filter, Line				$ 121.58
5	1166054		Screw 8-18 X 5/8		Appelez-nous	-
6	WP3351614		Screw, 10-24 X 3/8   (Replaces: 3351614)			Immediately	$ 7.30
7	9724754		Valve, Water Inlet				$ 135.43
8	3400611		Screw, Lid Switch		Appelez-nous	-
9	384463		Lid Spring (includes Item 10)		Appelez-nous	-
10	54690		Plug, Button		Appelez-nous	-
11	8272124		Switch, Lid				$ 49.30
12	8055191		Splash Shield Assembly				$ 55.77
13	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: 355274)			Immediately	$ 7.55
14	W10000080		Clip, Push-in Retainer		Appelez-nous	-
15	8055257		Hinge, Lid (left)				$ 6.31
16	8055256		Hinge, Lid (right)				$ 23.30
17	8319539		Bearing, Lid Hinge (2)				$ 5.51
18	19119		Bumper, Lid Hinge				$ 5.75
19	8318138		Lid Assembly (includes Items 13, 15, 21, 23, 50, 52 & 53) (pewter)				$ 238.14
19	8318136		Lid Assembly (includes Items 13, 15, 21, 23, 50, 52 & 53) (white)				$ 121.92
19	8318137		Lid Assembly (includes Items 13, 15, 21, 23, 50, 52 & 53) (biscuit)		Appelez-nous	-
20	WP596669		Clamp, Hose   (Replaces: 8318492)			Immediately	$ 8.82
21	8054939		Seal, Lid				$ 50.57
22	WP596669		Clamp, Hose   (Replaces: 370452)			Immediately	$ 8.82
23	8316688		Lid, Inner		Appelez-nous	-
24	8299698		Clip, Two Stage		Appelez-nous	-
25	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 8.82
26	WP596669		Clamp, Hose   (Replaces: 8318451)			Immediately	$ 8.82
27	8055022		Dispenser, Bleach & Fabric Softener				$ 32.63
28	8054366		Hose, Diverter To Venturi		Appelez-nous	-
29	8571813		Cover, Dispenser		Appelez-nous	-
30	8571812		Dispenser, Detergent		Appelez-nous	-
31	8055168		Venturi		Appelez-nous	-
32	8542373		Nozzle Assembly (bleach)				$ 49.75
33	WP596669		Clamp, Hose   (Replaces: 8541009)			Immediately	$ 8.82
34	8530273		Hose, Detergent		Appelez-nous	-
35	WP596669		Clamp, Hose   (Replaces: 8055019)			Immediately	$ 8.82
36	8538442		Hose, Venturi To Bleach		Appelez-nous	-
37	8054365		Hose, Fabric Softener				$ 7.77
38	WP596669		Clamp, Hose   (Replaces: 9724996)			Immediately	$ 8.82
39	8271943		Restraint		Appelez-nous	-
40	8316761		Hose, Fresh Rinse				$ 5.81
41	8316762		Hose, Tub To Venturi		Appelez-nous	-
42	WP596669		Clamp, Hose   (Replaces: 301958)			Immediately	$ 8.82
43	WP596669		Clamp, Hose   (Replaces: 370450)			Immediately	$ 8.82
44	8529937		Shield, Splash		Appelez-nous	-
45	8563776		Gasket, Nozzle (bleach)		Appelez-nous	-
46	WP596669		Clamp, Hose   (Replaces: 371505)			Immediately	$ 8.82
48	8559320		Clip, Push In   (Replaces: 3352501)				$ 48.14
49	8527686		Medallion Assembly (sage)		Appelez-nous	-
49	8527687		Medallion Assembly (pewter)		Appelez-nous	-
50	WP21097		Pad, Lid Hinge (2)   (Replaces: 21097)				$ 8.19
51	8316751		Medallion Insert		Appelez-nous	-
52	8520850		Handle, Lid (sage)		Appelez-nous	-
52	8520851		Handle, Lid (pewter)		Appelez-nous	-
53	8519764		Insert, Handle		Appelez-nous	-
54	8532031		Ring, Retaining		Appelez-nous	-
55	8530271		Clip, Splash Shield		Appelez-nous	-
56	W11544659		Screw, 8-18 X 1 1/4   (Replaces: 489415)				$ 14.35
