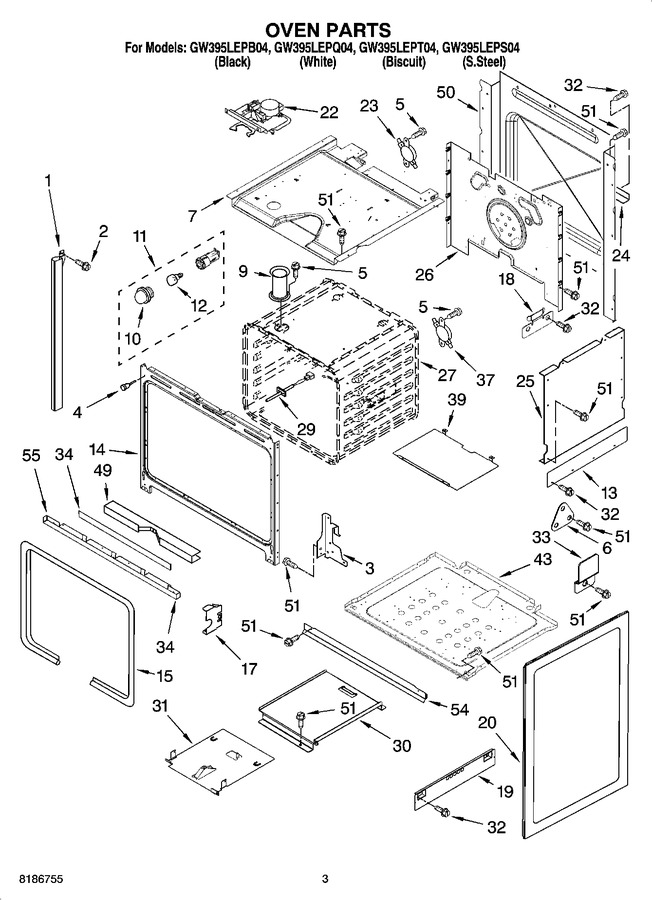

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9757734SS | Trim, Side (left Hand) (s.steel) |
|
- | |||||
| 1 | 9757735WH | Trim, Side (right Hand) (white) |
|
- | |||||
| 1 | 9757735BT | Trim, Side (right Hand) (biscuit) |
|
- | |||||
| 1 | 9757735BL | Trim, Side (right Hand) (black) |
|
- | |||||
| 1 | 9757735SS | Trim, Side (right Hand) (s.steel) |
|
- | |||||
| 1 | 9757734WH | Trim, Side (left Hand) (white) |
|
- | |||||
| 1 | 9757734BT | Trim, Side (left Hand) (biscuit) |
|
- | |||||
| 1 | 9757734BL | Trim, Side (left Hand) (black) |
|
- | |||||
| 2 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 8.18 | ||||
| 3 | WP4455605 | Hinge Receiver (left) (Replaces: 4455605) |
|
Immediately | $ 127.70 | ||||
| 3 | WP4455606 | Hinge Receiver (right) (Replaces: 4455606) |
|
Immediately | $ 131.74 | ||||
| 4 | W10105790 | Bumper, Door (Replaces: 9760749) |
|
$ 7.41 | |||||
| 5 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 6 | 9757461 | Bracket, Side Panel |
|
$ 37.11 | |||||
| 7 | 8303099 | Top Chassis |
|
$ 70.97 | |||||
| 9 | 9761062 | Tube, Vent |
|
- | |||||
| 10 | W10067870 | Lens, Light |
|
$ 65.50 | |||||
| 11 | WPW10734065 | Oven Light Assy (Replaces: W10009930) |
|
$ 101.46 | |||||
| 12 | WP4173175 | Bulb, Light (Replaces: 4452166) |
|
Immediately | $ 53.62 | ||||
| 13 | 9757732 | Shield, Heat |
|
- | |||||
| 14 | WPW10115831 | Frame, Front (Replaces: 9760756) |
|
$ 351.89 | |||||
| 15 | W11675844 | Gasket, Door (Replaces: W10074200) |
|
Immediately | $ 74.56 | ||||
| 17 | 4452152 | Bracket, Mounting |
|
$ 35.18 | |||||
| 18 | 9757685 | Guide, Side Panel |
|
$ 36.23 | |||||
| 19 | 9757811 | Brace, Side Panel |
|
- | |||||
| 20 | 9760723PB | Oven, Side Panel (black) |
|
- | |||||
| 20 | 9760723PW | Oven, Side Panel (white) |
|
- | |||||
| 20 | 9760723PC | Oven, Side Panel (biscuit) |
|
- | |||||
| 22 | WP9760889 | Latch, Motorized (Replaces: 9760888) |
|
Immediately | $ 345.08 | ||||
| 23 | WP9757807 | Thermostat Spst (230) (Replaces: 9757807) |
|
Immediately | $ 112.22 | ||||
| 24 | 8053971 | Brace, Main Back |
|
$ 7.82 | |||||
| 25 | W10782197 | Side, Chassis (r.h. & L.h.) (Replaces: 4455641) |
|
$ 150.69 | |||||
| 26 | 9759762 | Back, Chassis |
|
- | |||||
| 29 | WPW10131825 | Sensor (Replaces: 4455636) |
|
Immediately | $ 95.83 | ||||
| 30 | 9756454 | Bracket, Goc |
|
$ 68.50 | |||||
| 31 | 9760223 | Slide, Goc |
|
$ 8.06 | |||||
| 32 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 33 | 9759890 | Clip, Side Panel |
|
$ 9.71 | |||||
| 34 | 9757717 | Insulation |
|
- | |||||
| 37 | WP8300802 | Thermostat (tod) (temp.) Spst (Replaces: 8300802) |
|
Immediately | $ 126.65 | ||||
| 39 | 9757070 | Plate, Relectance |
|
$ 27.54 | |||||
| 43 | 9756637 | Gasket |
|
- | |||||
| 43 | W10045340 | Base, Chassis |
|
- | |||||
| 49 | WP4448933 | Retainer, Gasket (Replaces: 4448933) |
|
$ 9.30 | |||||
| 50 | 9758583 | Cover, Back |
|
$ 215.30 | |||||
| 51 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 54 | 9756481BT | Vent, Bottom Upper (biscuit) |
|
- | |||||
| 54 | 9756481SS | Vent, Bottom Upper (s. Steel) |
|
- | |||||
| 54 | 9756481BL | Vent, Bottom Upper (black) |
|
- | |||||
| 54 | 9756481WH | Vent, Bottom Upper (white) |
|
- | |||||
| 55 | 9756470 | Insulation, Back |
|
$ 68.08 | |||||
| 55 | 9756485SS | Trim, Btm Vent (s.steel) |
|
- | |||||
| 55 | 9756817 | Insulation, Wrap |
|
$ 76.03 | |||||
| 55 | 9756485WH | Trim, Btm Vent (white) |
|
- | |||||
| 55 | 9756485BT | Trim, Bottom Vent (biscuit) |
|
- | |||||
| 55 | 9756485BL | Vent, Bottom Lower (black) |
|
- |
