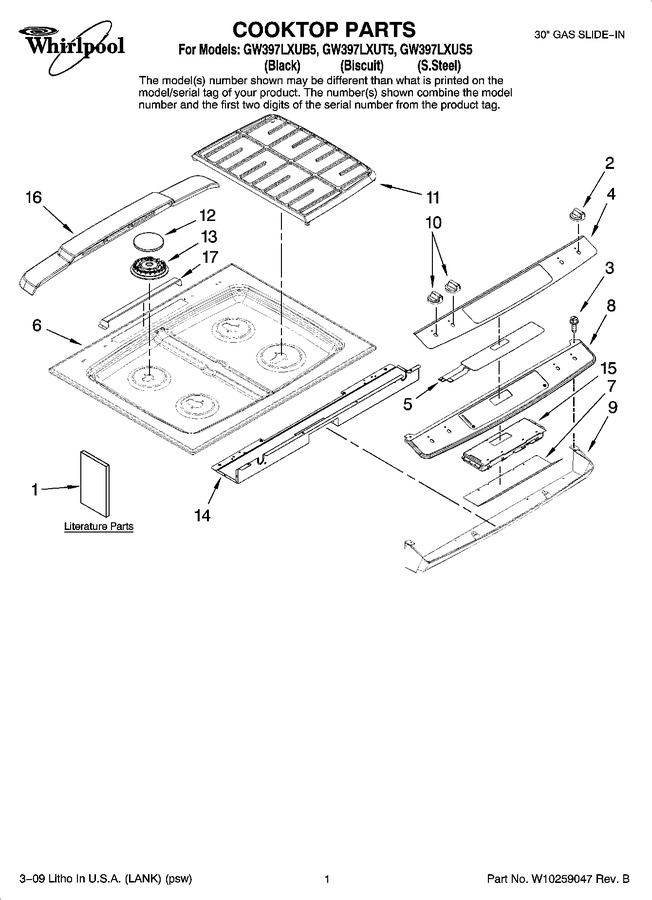

01 - Cooktop Parts
02 - Chassis Parts
03 - Manifold Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8113P681-60 | Installation Instructions |
|
- | |||||
| 1 | 8113P679-60 | Owners Manual |
|
- | |||||
| 2 | 7733P534-60 | Knob, Accusimmer (biscuit) |
|
- | |||||
| 2 | W10177201 | Knob, Accusimmer (black) (Replaces: 7733P532-60) |
|
$ 20.03 | |||||
| 3 | 7101P501-60 | Screw |
|
- | |||||
| 4 | W10181485 | Overlay (s.steel Mdl Only) |
|
- | |||||
| 5 | WPW10207932 | Membrane Switch (biscuit) (Replaces: W10207932) |
|
$ 331.57 | |||||
| 5 | WPW10207928 | Membrane Switch (black) (Replaces: W10207928) |
|
$ 272.84 | |||||
| 6 | 2001W231-88 | Cooktop (biscuit) |
|
- | |||||
| 6 | 2001W231-09 | Cooktop (black) |
|
- | |||||
| 7 | W10166279 | Shield, Control |
|
- | |||||
| 8 | 7720P531-60 | Panel, Cntl Shield (black) |
|
$ 139.61 | |||||
| 8 | 7720P533-60 | Panel, Cntl Shield (biscuit) |
|
- | |||||
| 8 | W10182766 | Panel, Cntl Shield (s.steel) |
|
- | |||||
| 9 | W10185609 | Panel, Cntl (lwr) (biscuit) |
|
- | |||||
| 9 | W10185606 | Panel, Cntl (lwr) (black) |
|
$ 130.08 | |||||
| 10 | W10177202 | Knob, Valve (3) (biscuit) (Replaces: 7733P528-60) |
|
$ 85.53 | |||||
| 10 | WP7733P526-60 | Knob, Valve (3) (black) (Replaces: 7733P526-60) |
|
Immediately | $ 23.96 | ||||
| 11 | 7518P486-60 | Grate, Burner (2) (gray) |
|
- | |||||
| 11 | 7518P485-60 | Grate, Burner (2) (black) |
|
- | |||||
| 12 | W10177370 | Cap, Burner (gray 16k (1)) |
|
- | |||||
| 12 | WPW10173832 | Cap, Burner (gray 12.5k (2)) (Replaces: W10173832) |
|
$ 75.84 | |||||
| 12 | WPW10183371 | Cap, Burner (black 12.5k (2)) (Replaces: W10183371) |
|
$ 103.50 | |||||
| 12 | WPW10183368 | Cap, Burner (gray 5k (1)) (Replaces: W10183368) |
|
$ 85.21 | |||||
| 12 | WP7504P298-60 | Cap, Burner (black 5k (1)) (Replaces: W10177373) |
|
$ 63.24 | |||||
| 12 | WPW10169975 | Cap, Burner (black 16k (1)) (Replaces: W10169975) |
|
$ 67.44 | |||||
| 13 | WPW10406797 | Base, Burner (12k Rr,lf (2)) (Replaces: 8286182) |
|
$ 88.49 | |||||
| 13 | WPW10406878 | Base, Burner (16k Rf (1)) (Replaces: 8286183) |
|
$ 102.36 | |||||
| 13 | WPW10406243 | Base, Burner (5k Lr) (1) (Replaces: 7540P031-60) |
|
Immediately | $ 37.22 | ||||
| 14 | 3807F769-51 | Support, Cntrl Pnl |
|
- | |||||
| 15 | WPW10177195 | Control, (erc) (Replaces: 8507P389-60) |
|
Immediately | $ 328.30 | ||||
| 16 | 7724P201-60 | Cover, Vent (black) |
|
- | |||||
| 16 | 7724P202-60 | Cover, Vent (gray) |
|
- | |||||
| 17 | 3601F221-45 | Baffle, Vent Cover |
|
$ 28.30 |
