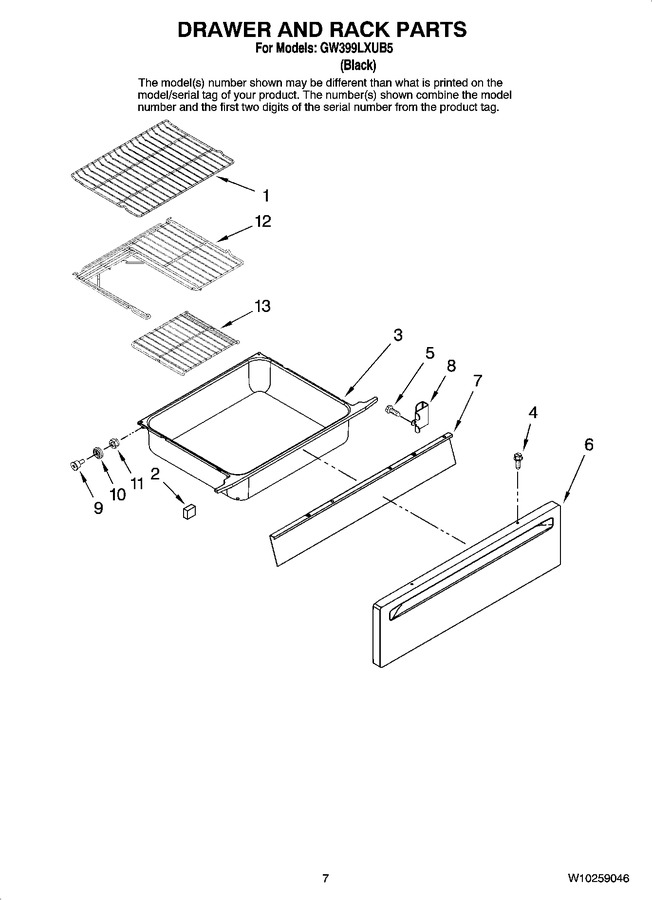

05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7801P173-60		Rack, Oven (2)				$ 55.72
2	WP74005546		Spacer, Rubber   (Replaces: 8010P130-60)				$ 11.06
3	WP3405F037-80		Drawer, Service   (Replaces: 3405F033-80)				$ 355.81
4	W10828565		Screw, Panel   (Replaces: 7101P635-60)				$ 7.85
5	W11233072		Screw   (Replaces: 7101P388-60)			Immediately	$ 14.72
6	2416F059-70		Panel, Drawer Frnt				$ 120.99
7	2404F030-51		Lining, Drawer		Appelez-nous	-
8	3801F887-51		Bracket, Drawer				$ 8.32
9	8014P002-60		Roller, Drawer (2)		Appelez-nous	-
10	7118P032-60		Shaft, Roller (2)		Appelez-nous	-
11	WP488130		Nut, Lock   (Replaces: 7103P082-60)				$ 7.32
12	7801P137-60		Rack, Half		Appelez-nous	-
13	7801P142-60		Insert, Rack		Appelez-nous	-
