SELECT A DIAGRAM

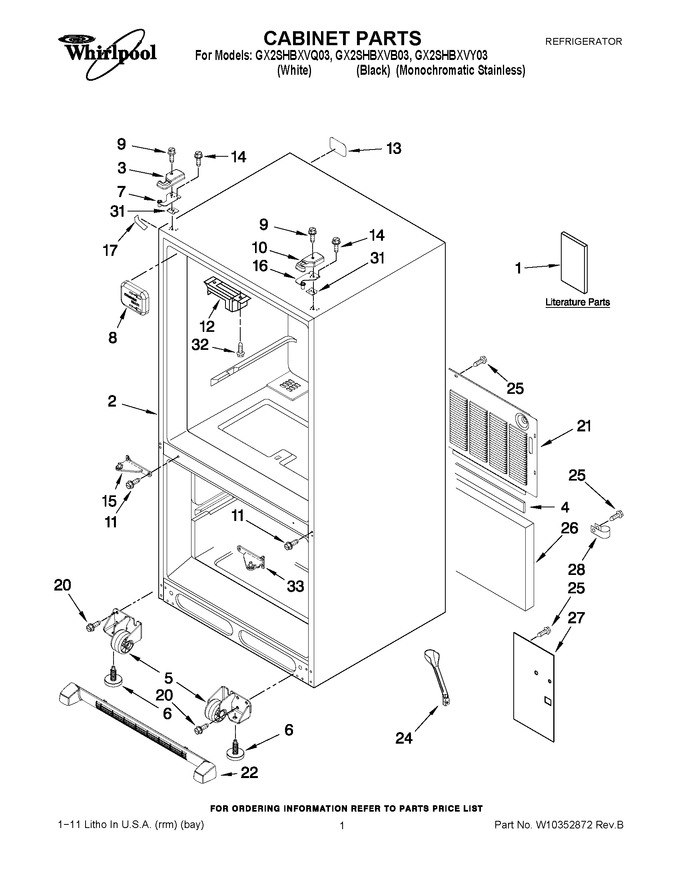

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Freezer Door Parts


04 - Refrigerator Liner Parts


05 - Refrigerator Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10208431		Use & Care Guide		Appelez-nous	-
1	W10260548		Energy Guide		Appelez-nous	-
1	W10322959		Tech Sheet		Appelez-nous	-
2	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
3	WPW10337634		Cover, Left Hinge (white)   (Replaces: W10217491)			Immediately	$ 22.42
3	W10337647		Cover, Left Hinge (black)   (Replaces: W10217489)			Immediately	$ 22.22
3	WPW10337648		Cover, Left Hinge (apollo Grey)   (Replaces: W10217488)				$ 22.02
4	B5759655		Gasket Mc Back				$ 12.41
5	W11820444		Roller Assy. (2) (left)   (Replaces: W10275850)			Immediately	$ 35.57
5	W11820445		Roller Assy. (2) (right)   (Replaces: W10275849)			Immediately	$ 35.57
6	WPW10141622		Foot, Brake   (Replaces: W10141622)			Immediately	$ 7.85
7	W11592375		Hinge, Left Top   (Replaces: 12963204ED)				$ 29.09
8	WP67001098		Cover-fill Tube   (Replaces: 12477501)				$ 8.03
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.19
10	67005958		Cover, Right Hinge (white)   (Replaces: 12962302W)				$ 20.54
10	WPW10191117		Cover, Right Hinge (apollo Grey)   (Replaces: 12962302AP)				$ 21.95
10	WP67005956		Cover, Right Hinge (black)   (Replaces: 12962302B)				$ 21.47
11	WP489349		Screw   (Replaces: 12990101)			Immediately	$ 7.88
12	WP67003405		Block, Pivot   (Replaces: 12698403)			Immediately	$ 7.82
13	W11685757		Label-fill Tube   (Replaces: 12249902)				$ 7.06
14	WP489349		Screw (3)   (Replaces: 12992403)			Immediately	$ 7.88
15	W10918113		Hinge, Center (lt) (white)   (Replaces: 13000001WD)				$ 93.26
15	W10918164		Hinge, Center (lt) (black)   (Replaces: 13000007ED)				$ 86.64
15	W10917988		Hinge, Center (lt) (apollo Grey)   (Replaces: 13000001AP)			Immediately	$ 91.08
16	W11592374		Hinge, Right Top   (Replaces: 12963205ED)			Immediately	$ 29.02
17	67003485		Cover, Corner (black)   (Replaces: 12587703B)			Immediately	$ 21.09
17	WP12587703AP		Cover, Corner (apollo Grey)   (Replaces: 12587703AP)				$ 7.69
17	12587703W		Cover, Corner (white)				$ 21.81
20	67006564		Screw (4)   (Replaces: 12991302)			Immediately	$ 7.69
21	WPW10210979		Cover, Unit   (Replaces: W10210979)				$ 196.41
22	WPW10534161		Grille, Toe (white)   (Replaces: W10236195)				$ 140.09
22	WPW10534162		Grille, Toe (black)   (Replaces: W10236196)				$ 141.10
22	WPW10534160		Grille, Toe (apollo Grey)   (Replaces: W10236194)			Immediately	$ 72.60
24	W10619951		Tube, Drain   (Replaces: W10210988)			Immediately	$ 42.39
25	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.95
26	12820505		Fiber, Acoustic				$ 71.70
27	W11684617		Cover, Water Valve   (Replaces: W10217701)				$ 20.34
28	W10833902		Clamp, Tube   (Replaces: M0108105)				$ 10.99
31	12999502		Shim, Top Hinge (right)				$ 95.81
31	12999501		Shim, Top Hinge (left)				$ 94.79
32	W10854958		Screw, Block   (Replaces: 12990302)				$ 7.43
33	W10917988		Hinge, Center (rt) (apollo Grey)   (Replaces: 13000002AP)			Immediately	$ 91.08
33	13000002WD		Hinge, Center (rt) (white)				$ 153.32
33	W10918164		Hinge, Center (rt) (black)   (Replaces: 13000008ED)				$ 86.64

    View Diagram in Separate Window       Print Part List
