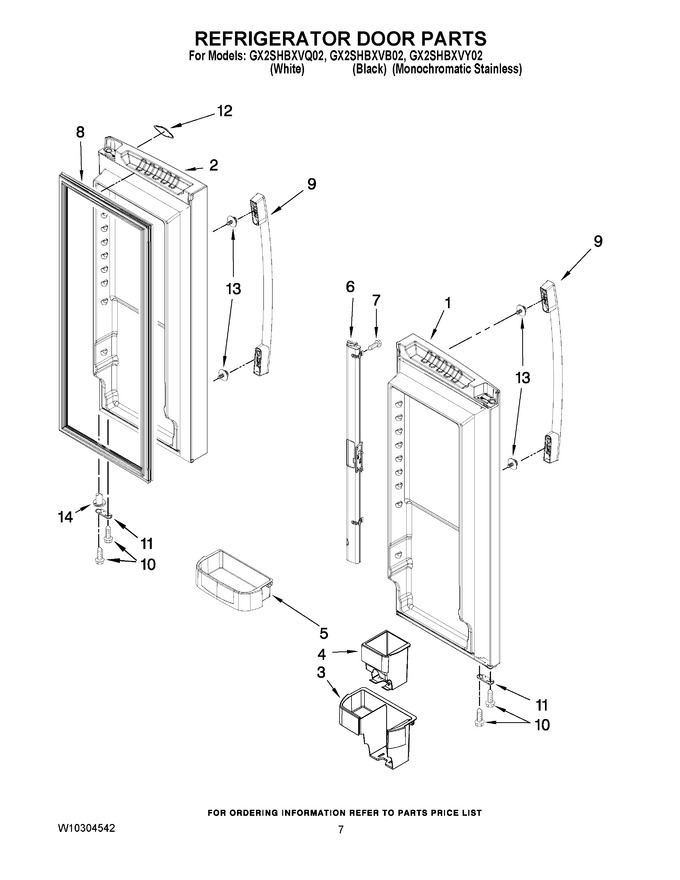

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12978044WQ | Door, Left (white) |
|
- | |||||
| 1 | 12978073BQ | Door, Left (black) |
|
- | |||||
| 1 | 12978049SQ | Door, Left (stainless) |
|
$ 487.22 | |||||
| 2 | 12978053SQ | Door, Right (stainless) |
|
- | |||||
| 2 | 12978043WQ | Door, Right (white) |
|
- | |||||
| 2 | 12978076BQ | Door, Right (black) |
|
- | |||||
| 3 | W10169347 | Bucket, Can Dispenser |
|
$ 50.02 | |||||
| 4 | WP13005401SP | Sleeve, Can Dispenser (Replaces: 13005401SP) |
|
Immediately | $ 79.12 | ||||
| 5 | WPW10371194 | Bucket, Door (medium (2)) (Replaces: 12849106V) |
|
Immediately | $ 77.23 | ||||
| 5 | WPW10351081 | Bucket, Door (small (2)) (Replaces: 12849103V) |
|
Immediately | $ 73.03 | ||||
| 6 | WP12722803B | Mullion, Door (black) (Replaces: 12722803B) |
|
Immediately | $ 206.80 | ||||
| 6 | WP12722803W | Mullion, Door (white) (Replaces: 12722803W) |
|
Immediately | $ 261.21 | ||||
| 6 | WP12722803AP | Mullion, Door (apollo Grey) (Replaces: 12722803AP) |
|
Immediately | $ 177.93 | ||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 8 | W10830189 | Gasket, Door (white - Rh) (Replaces: W10163894) |
|
Immediately | $ 228.91 | ||||
| 8 | W10830287 | Gasket, Door (white - Lh) (Replaces: W10218678) |
|
Immediately | $ 173.36 | ||||
| 8 | W10830289 | Gasket, Door (black - Lh) (Replaces: W10218679) |
|
Immediately | $ 204.87 | ||||
| 8 | W11368721 | Gasket, Door (black - Rh) (Replaces: W10163895) |
|
Immediately | $ 169.21 | ||||
| 8 | W10830283 | Gasket, Door (apollo Grey - Lh) (Replaces: W10218680) |
|
$ 205.44 | |||||
| 8 | W10830162 | Gasket, Door (apollo Grey - Rh) (Replaces: W10179332) |
|
Immediately | $ 212.57 | ||||
| 9 | W11351147 | Handle, Door (stainless) (Replaces: W10223019) |
|
$ 198.22 | |||||
| 9 | W11351146 | Handle, Door (black) (Replaces: W10222985) |
|
$ 189.08 | |||||
| 9 | WPW10222984K | Handle, Door (white) (Replaces: W10222984) |
|
$ 205.46 | |||||
| 10 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 11 | W11703060 | Stop, Door (apollo Grey) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 11 | 12968202W | Stop, Door (white) |
|
$ 69.29 | |||||
| 11 | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 14.75 | ||||
| 12 | 2220214 | Nameplate |
|
$ 32.43 | |||||
| 13 | WP12992902 | Mount, Handle (Replaces: 12992902) |
|
$ 11.91 | |||||
| 14 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 14 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 8.15 | ||||
| 14 | WP12028505AP | Closure, Door (apollo Grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 |
