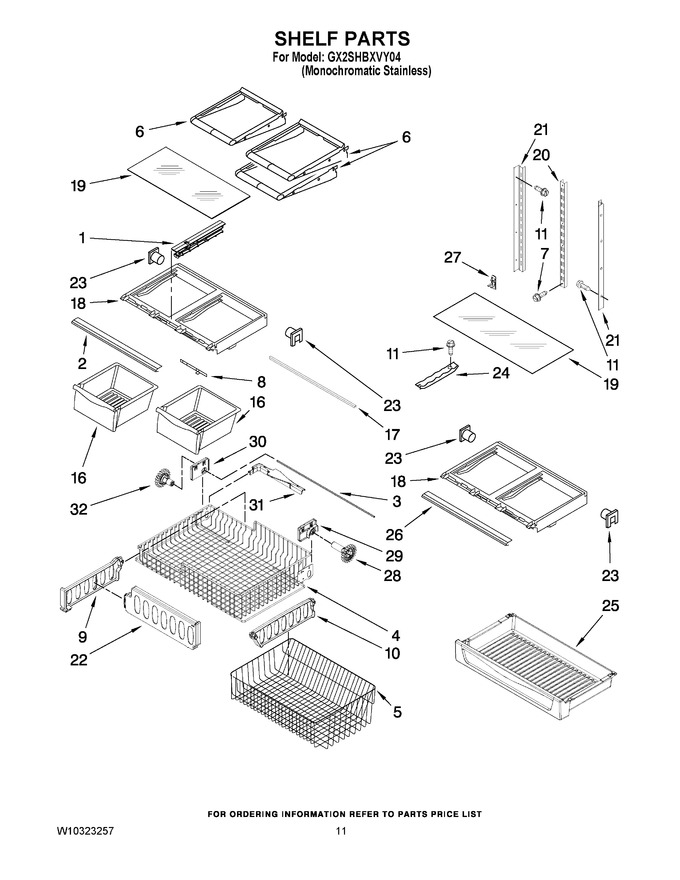

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10671238 | Rail, Center Crisper (Replaces: 12530701) |
|
Immediately | $ 118.46 | ||||
| 2 | WPW10231482 | Trim, Crisper (Replaces: W10231482) |
|
$ 118.70 | |||||
| 3 | W10802339 | Shaft (Replaces: 12812905WD) |
|
$ 104.17 | |||||
| 4 | W10348238 | Basket, Freezer (upper) (Replaces: W10169950) |
|
$ 228.13 | |||||
| 5 | WPW10503183 | Basket, Freezer (lower) (Replaces: W10150038) |
|
Immediately | $ 249.35 | ||||
| 6 | W11402523 | Shelf (3) (Replaces: 12463509) |
|
Immediately | $ 232.46 | ||||
| 7 | W10215666 | Screw |
|
$ 9.53 | |||||
| 8 | WP67005864 | Slide, Humidity Control (2) (Replaces: 12530805SP) |
|
Immediately | $ 8.20 | ||||
| 9 | W10241046 | Divider, Basket (upper) |
|
Immediately | $ 29.19 | ||||
| 10 | W10205416 | Divider, Basket (lower) |
|
- | |||||
| 11 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 16 | WP67002633 | Pan, Crisper (2) (Replaces: 12530505SP) |
|
Immediately | $ 149.12 | ||||
| 17 | WP12227303WD | Brace, Crisper (2) (Replaces: 12227303WD) |
|
$ 111.25 | |||||
| 18 | WPW10568041 | Frame, Crisper (2) (Replaces: 12530401SP) |
|
Immediately | $ 137.23 | ||||
| 19 | WP67006878 | Glass, Crisper Cover (Replaces: 12204822) |
|
Immediately | $ 185.19 | ||||
| 20 | W10273463 | Ladder, Center |
|
$ 29.61 | |||||
| 21 | W10251969 | Ladder, Side |
|
$ 31.44 | |||||
| 22 | W10311695 | Divider, Upper Frz |
|
$ 30.20 | |||||
| 23 | WP67001722 | Support, Crisper Frame (right) (Replaces: 12531002) |
|
Immediately | $ 8.93 | ||||
| 23 | WP67001721 | Support, Crisper Frame (left) (Replaces: 12531001) |
|
Immediately | $ 8.70 | ||||
| 24 | WP67001719 | Track, Pantry (Replaces: 12531901) |
|
Immediately | $ 8.99 | ||||
| 25 | 12645027 | Drawer, Pantry |
|
- | |||||
| 26 | W10656986 | Trim, Pantry (Replaces: W10231334) |
|
$ 124.12 | |||||
| 27 | WP67001716 | Ladder Hook (Replaces: 12531802) |
|
Immediately | $ 11.14 | ||||
| 28 | WPW10474715 | Gear (Replaces: W10146446) |
|
Immediately | $ 32.76 | ||||
| 29 | W10348260 | Mount, Rh Gear (Replaces: W10233899) |
|
$ 89.90 | |||||
| 30 | W10348259 | Mount, Lh Gear (Replaces: W10233898) |
|
$ 89.87 | |||||
| 31 | W10149389 | Lift-bail Arm (Replaces: W10149389N) |
|
$ 92.66 | |||||
| 32 | WPW10474716 | Gear (Replaces: W10158749) |
|
Immediately | $ 32.42 |
