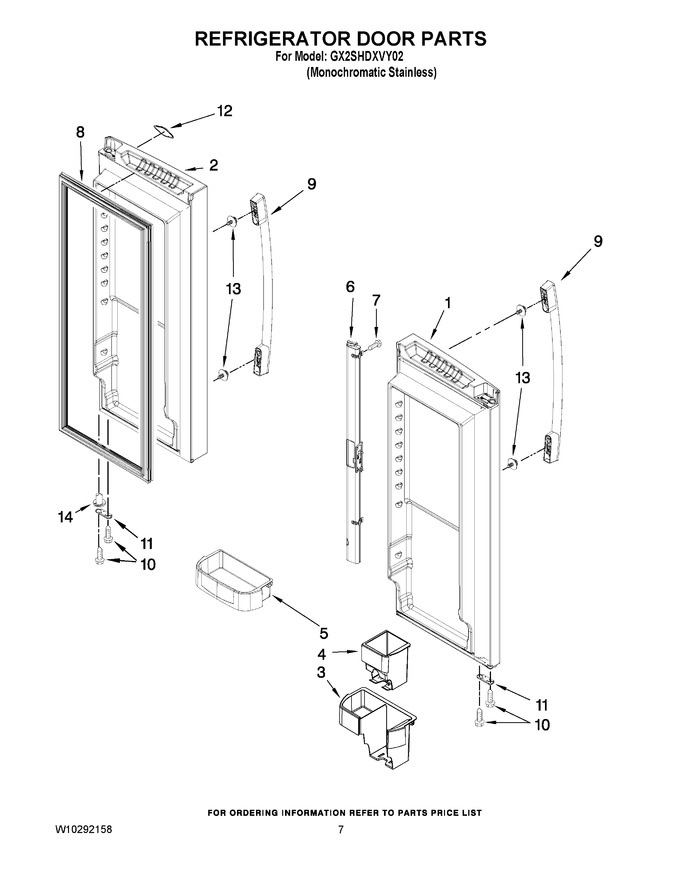

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12978049SQ | Door, Left (stainless) |
|
$ 487.22 | |||||
| 2 | 12978053SQ | Door, Right (stainless) |
|
- | |||||
| 3 | W10169347 | Bucket, Can Dispenser |
|
$ 50.02 | |||||
| 4 | WP13005401SP | Sleeve, Can Dispenser (Replaces: 13005401SP) |
|
Immediately | $ 79.12 | ||||
| 5 | WPW10351081 | Bucket, Door (small (2)) (Replaces: 12849103V) |
|
Immediately | $ 73.03 | ||||
| 5 | WPW10371194 | Bucket, Door (medium (2)) (Replaces: 12849124K) |
|
Immediately | $ 77.23 | ||||
| 6 | WP12722803AP | Mullion, Door (apollo Grey) (Replaces: 12722803APN) |
|
Immediately | $ 177.93 | ||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 8 | W10830162 | Gasket, Door (apollo Grey - Rh) (Replaces: W10179332) |
|
Immediately | $ 212.57 | ||||
| 8 | W10830283 | Gasket, Door (apollo Grey - Lh) (Replaces: W10218680) |
|
$ 205.44 | |||||
| 9 | W11351147 | Handle, Door (stainless) (Replaces: W10223019N) |
|
$ 198.22 | |||||
| 10 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 11 | W11703060 | Stop, Door (apollo Grey) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 12 | 2220214 | Nameplate |
|
$ 32.43 | |||||
| 13 | WP12992902 | Mount, Handle (Replaces: 12992902) |
|
$ 11.91 | |||||
| 14 | WP12028505AP | Closure, Door (apollo Grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 |
