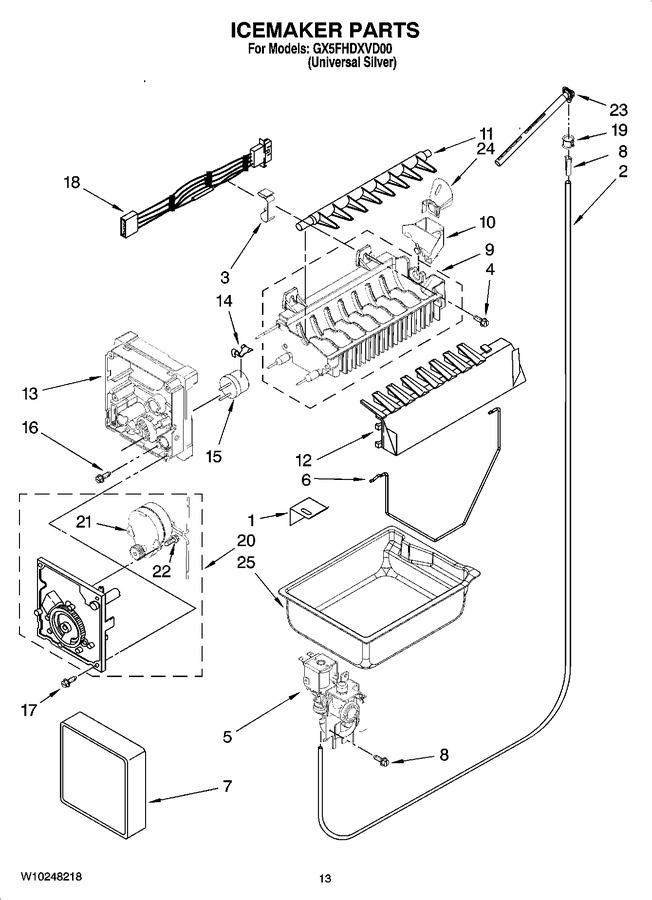

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2256087 | Bracket, Ice Maker (Replaces: 2256086) |
|
$ 93.00 | |||||
| 2 | WPB5705307 | Tube, Plastic (Replaces: 67003729) |
|
$ 12.43 | |||||
| 3 | 67003932 | Clamp |
|
- | |||||
| 4 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.86 | ||||
| 5 | WP67003753 | Valve, Inlet (Replaces: 67003753) |
|
Immediately | $ 109.40 | ||||
| 6 | WP67004028 | Arm, Shutoff (Replaces: 67004028) |
|
Immediately | $ 91.35 | ||||
| 7 | WPW10289690 | Cover, Front (Replaces: 12582501) |
|
Immediately | $ 8.40 | ||||
| 8 | WPA3223101 | Inert, Tube (Replaces: A3223101) |
|
Immediately | $ 7.82 | ||||
| 9 | WPW10190929 | Mold & Heater Assembly (alsoorder 542638) (Replaces: W10122527) |
|
$ 233.15 | |||||
| 10 | W10122561 | Cup, Water Fill (Replaces: 628515) |
|
$ 27.77 | |||||
| 11 | WP627843 | Ejector (Replaces: 627843) |
|
$ 83.60 | |||||
| 12 | WP2182124 | Ice Stripper (Replaces: 2182124) |
|
$ 86.05 | |||||
| 13 | WP2195914 | Support (Replaces: 2194712) |
|
$ 104.57 | |||||
| 14 | WP2315522 | Retainer (Replaces: 2315522) |
|
$ 11.05 | |||||
| 15 | WP627985 | Thermostat (order 542369 Cement Alumilastic) (Replaces: 627985) |
|
$ 109.18 | |||||
| 16 | 8533917 | Screw |
|
$ 13.37 | |||||
| 17 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.83 | ||||
| 18 | WPD7813010 | Harness, Ice Maker (Replaces: W10153408) |
|
Immediately | $ 73.97 | ||||
| 19 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 11.05 | |||||
| 20 | 8201515 | Module Assembly (includes Items 21 & 22) (Replaces: 626678) |
|
Immediately | $ 141.64 | ||||
| 21 | W10190935 | Motor (Replaces: 626684) |
|
Immediately | $ 110.07 | ||||
| 22 | 489136 | Screw |
|
$ 10.29 | |||||
| 23 | W11176463 | Elbow, Fill Tube (Replaces: W10137519) |
|
Immediately | $ 114.15 | ||||
| 24 | 12918001 | Funnel-fill Tube |
|
Immediately | $ 12.41 | ||||
| 25 | WPW10171529 | Pan-ice (Replaces: W10171529) |
|
Immediately | $ 180.52 | ||||
| 100 | D7824706Q | Complete Ice Maker |
|
Immediately | $ 167.35 | ||||
| 31462 | Cleaner, 10 Oz. Stainless Steel |
|
- | ||||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | |||||
| 285006 | Paint, Pressurized Spray (12 Oz.) (black) (Replaces: 350939) |
|
$ 57.04 | ||||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | ||||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | |||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | ||||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | ||||||
| 833938 | Kit, Terminal Connector |
|
$ 8.07 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (black) (uncut) |
|
$ 237.46 | ||||||
| 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | ||||||
| WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.18 | |||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 117.94 | ||||||
| WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 173.95 | |||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) |
|
$ 89.66 |
