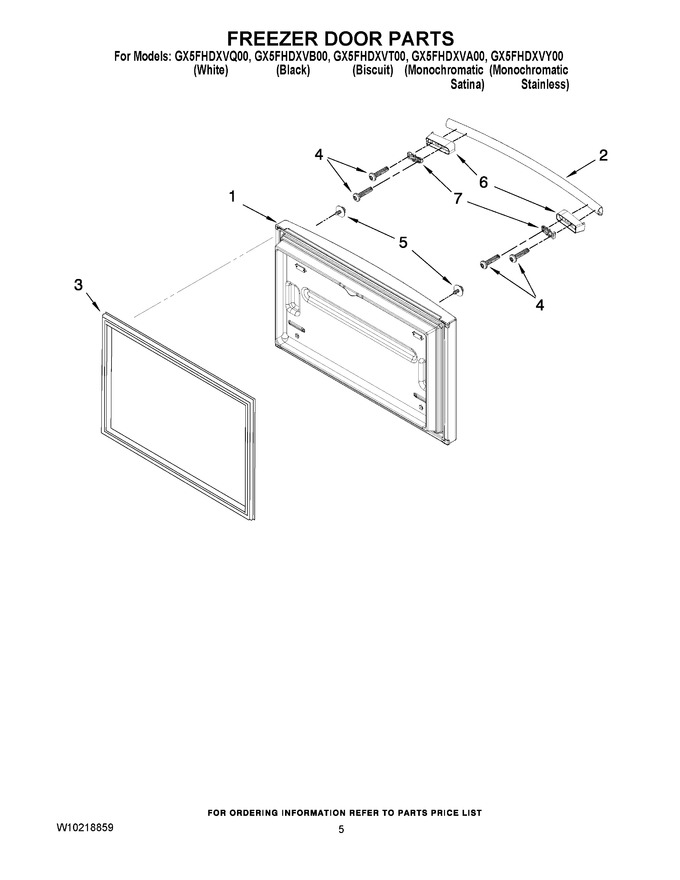

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12977864WQ		Door, Freezer (white)   (Replaces: W10199889)				$ 1,029.38
1	W10199891		Door, Freezer (black)		Appelez-nous	-
1	W10199890		Door, Freezer (biscuit)		Appelez-nous	-
1	W10199885		Door, Freezer (stainless)		Appelez-nous	-
1	W10205735		Door, Freezer (satina)		Appelez-nous	-
2	W10159708		Handle, Door (white)		Appelez-nous	-
2	W10159709		Handle, Door (black)				$ 90.70
2	W10159710		Handle, Door (biscuit)		Appelez-nous	-
2	W10159711		Handle, Door (stainless)		Appelez-nous	-
3	W10443319		Gasket, Door (white)   (Replaces: W10164040)				$ 281.76
3	W10436252		Gasket, Door (black)   (Replaces: W10164041)			Immediately	$ 345.03
3	W10443320		Gasket, Door (apollo Grey)   (Replaces: W10164042)			Immediately	$ 125.25
4	W10267047		Screw, Handle   (Replaces: W10201588)				$ 12.83
5	WP12992902		Mount, Handle   (Replaces: 12992902)				$ 11.07
6	W10157435		Endcap, Handle (white)				$ 30.29
6	W10157436		Endcap, Handle (black)		Appelez-nous	-
6	W10157437		Endcap, Handle (biscuit)		Appelez-nous	-
6	W10172586		Endcap, Handle (stainless)		Appelez-nous	-
7	13067102SP		Clip, Handle				$ 27.57
