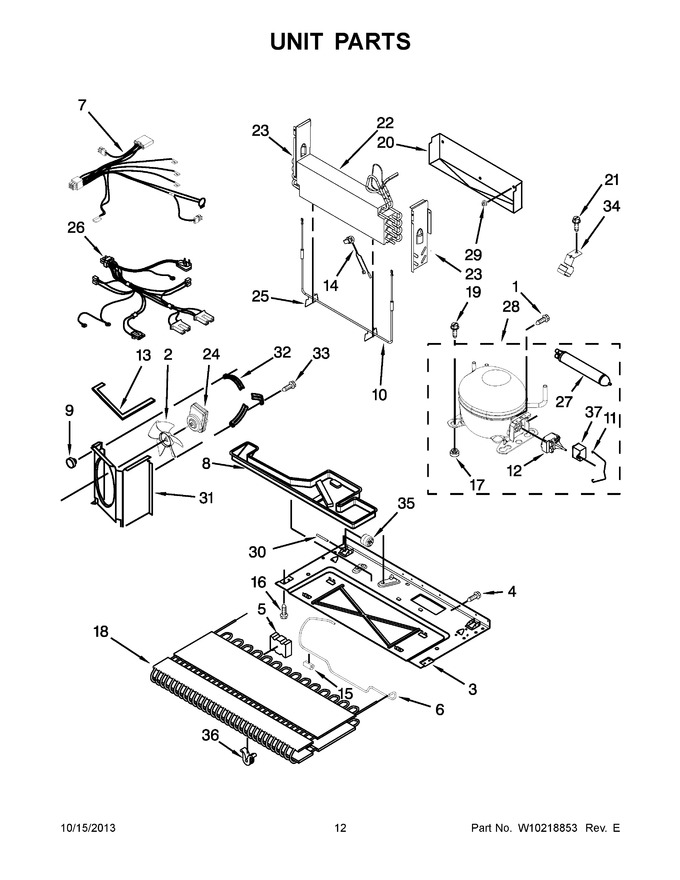

07 - Unit Parts


08 - Shelf Parts


09 - Icemaker Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw   (Replaces: 67006433)				$ 7.32
2	W10156818		Blade, Cond. Fan   (Replaces: W10162928)			Immediately	$ 62.11
3	67005889		Pan, Base		Appelez-nous	-
4	67006425		Screw			Immediately	$ 6.95
5	67005491		Block, Condenser		Appelez-nous	-
6	W10134293		Tube, Discharge				$ 55.52
7	W10119856		Harness, Evap. Heater				$ 105.98
8	WP12579803		Pan, Drain   (Replaces: 67007175)				$ 245.45
9	61004743		Grommet, Bracket				$ 5.51
10	WP67002493		Heater, Defrost   (Replaces: 67002493)			Immediately	$ 146.15
11	2255199		Bale Strap		Appelez-nous	-
12	WPW10197428		Relay, Start   (Replaces: W10128791)			Immediately	$ 89.21
13	WP854334		Gasket   (Replaces: 61003210)				$ 13.28
14	WPW10165425		Bi-metal, Defrost   (Replaces: W10165425)			Immediately	$ 74.57
15	67005680		Grommet, Condenser				$ 21.05
16	12992101		Screw   (Replaces: 67006573)		Appelez-nous	-
17	WPW10169124		Grommet   (Replaces: W10169124)			Immediately	$ 7.19
18	WP67006131		Condenser   (Replaces: 67006131)				$ 366.74
19	12846902		Screw   (Replaces: 67006432)				$ 12.99
20	W11547653		Tray, Drip   (Replaces: 67002490)				$ 54.30
21	WP33001882		Screw, Clip   (Replaces: 67006737)				$ 79.72
22	12002041		Evaporator Kit				$ 348.63
23	67001084		Dam (right Hand)		Appelez-nous	-
23	67001083		Dam (left Hand)		Appelez-nous	-
24	W11613295		Motor, Condenser   (Replaces: 67004432)			Immediately	$ 136.84
25	W11673433		Clip, Heater   (Replaces: 10428101)				$ 141.12
26	W10188474		Harness, Unit With Power Cord		Appelez-nous	-
27	WPW10143759		Drier   (Replaces: W10143759)			Immediately	$ 30.78
28	W10160407		Compressor   (Replaces: W10134623)				$ 599.92
29	10623002		Clip, Evaporator				$ 11.53
30	67006434		Axle, Roller			Immediately	$ 7.52
31	12575309		Shroud, Condenser				$ 185.38
32	WP67004953		Bracket, Evaporator Motor   (Replaces: 67004953)				$ 68.83
33	WP67004954		Screw   (Replaces: 67004954)				$ 7.79
34	10547003		Clip, Drier		Appelez-nous	-
35	WP67005149		Roller   (Replaces: 67005149)			Immediately	$ 22.02
36	WPW10137529		Grommet-condenser   (Replaces: W10137529)				$ 8.34
37	WPW10662129		Capacitor   (Replaces: 2264017)			Immediately	$ 58.86
NI	WP978025		Valve, Access (Œ``)   (Replaces: 978025)			Immediately	$ 105.25
NI	978026		Valve, Access			Immediately	$ 128.09
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access		Appelez-nous	-
NI	978029		Valve, Access				$ 93.85
NI	978030		Valve, Access Ÿ``)				$ 130.71
NI	876764		Valve, Access			Immediately	$ 91.35
NI	N/P		Refrigerant Charge 5.25 Oz. (r-134a)		Appelez-nous	-
