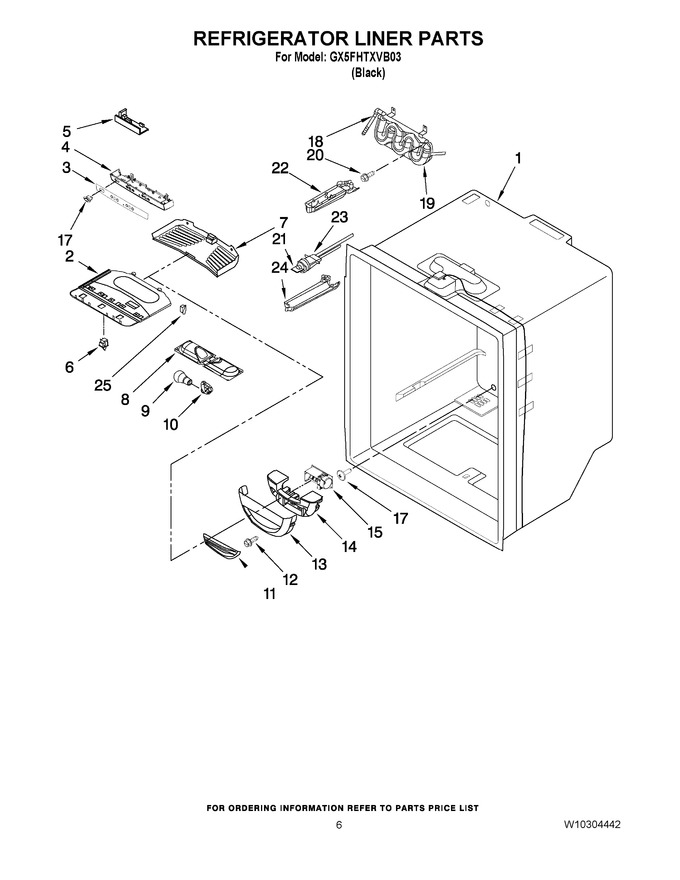

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 12806302 | Module, Light |
|
- | |||||
| 3 | W10180451 | Overlay |
|
$ 36.07 | |||||
| 4 | 12806407 | Module, Control |
|
$ 48.18 | |||||
| 5 | WPW10503278 | Board, Control (Replaces: 12868513) |
|
Immediately | $ 55.44 | ||||
| 6 | W11384469 | Switch, Light (2) (Replaces: C3680310V) |
|
Immediately | $ 39.09 | ||||
| 7 | W11284721 | Cover, Light (Replaces: 12806501) |
|
$ 106.02 | |||||
| 8 | 12806601 | Housing, Light (Replaces: 12806601V) |
|
$ 110.20 | |||||
| 9 | W11679940 | Bulb, Light (2) (Replaces: W10194422V) |
|
Immediately | $ 11.30 | ||||
| 10 | W11447232 | Socket, Light (2) (Replaces: 12570701V) |
|
Immediately | $ 13.87 | ||||
| 11 | 67003900 | Insert, Damper Cover` (Replaces: 12806801) |
|
Immediately | $ 8.55 | ||||
| 12 | W11772394 | Screw (Replaces: 12990604) |
|
Immediately | $ 13.22 | ||||
| 13 | WP12806701 | Cover, Damper (Replaces: 12806701) |
|
$ 118.65 | |||||
| 14 | W11750607 | Insulation (Replaces: 13012402) |
|
$ 50.15 | |||||
| 15 | WPW10196393 | Control, Damper (includes Harness) (Replaces: W10127429) |
|
Immediately | $ 166.07 | ||||
| 17 | W11478401 | Switch, Energy Saver (Replaces: 12861601) |
|
Immediately | $ 137.72 | ||||
| 18 | WP2300868 | Union (Replaces: 61006182) |
|
Immediately | $ 29.05 | ||||
| 19 | W11361728 | Tank, Water (Replaces: W10153959) |
|
$ 172.35 | |||||
| 20 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 21 | W11395888 | Plug, Filter Bypass (Replaces: 12664501SP) |
|
Immediately | $ 50.72 | ||||
| 22 | WP67001668 | Plate, Filter (Replaces: 12704801) |
|
Immediately | $ 16.75 | ||||
| 23 | W11844302 | Head Water Filter Assembly (Replaces: 12590620) |
|
$ 154.88 | |||||
| 24 | WP12568001 | Cover, Filter (Replaces: 12568001) |
|
Immediately | $ 86.76 | ||||
| 25 | WP12575501 | Switch, Limit (Replaces: 12575501) |
|
$ 72.35 | |||||
| NI | WP12868601 | Harness, Controls (refrigerator) (includes Thermistor) (Replaces: 12868601) |
|
$ 130.80 |
