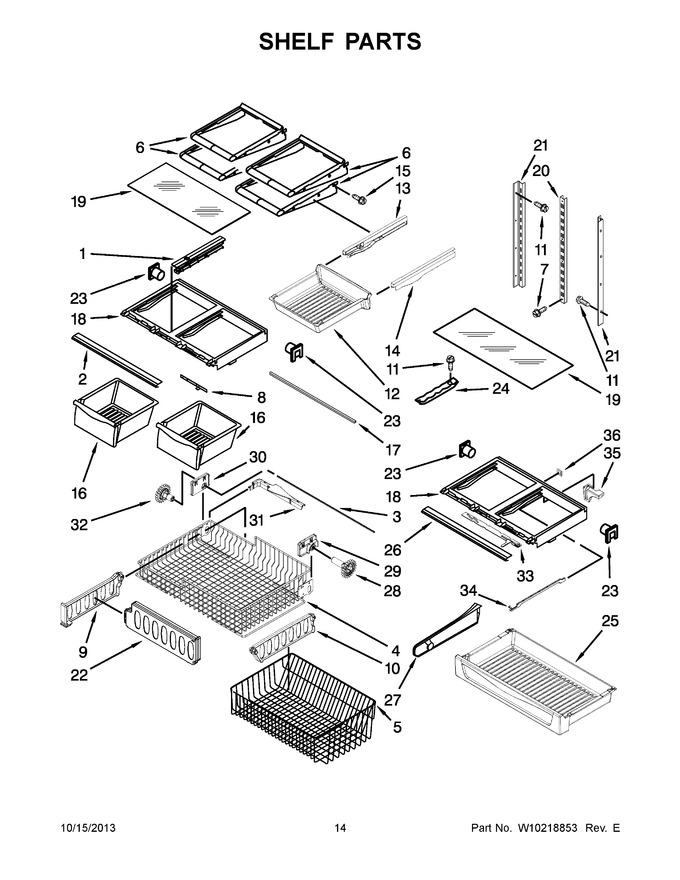

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10326469		Rail, Center Crisper   (Replaces: 67004514)			Immediately	$ 33.37
2	12530651		Trim, Crisper		Appelez-nous	-
3	W10199044		Shaft, Rack		Appelez-nous	-
4	WPW10348246		Basket, Freezer (upper)   (Replaces: W10169949)				$ 274.97
5	W10150039		Basket, Lower Freezer				$ 128.38
6	W10208663		Shelf, Glide Out				$ 115.65
7	W10709795		Screw   (Replaces: 67006360)				$ 13.79
8	WP67005864		Slide, Humidity Control   (Replaces: 67005864)			Immediately	$ 8.20
9	W10171557		Divider, Basket (upper)		Appelez-nous	-
10	W10847995		Divider, Lower Basket   (Replaces: W10146440)				$ 92.48
11	67006425		Screw   (Replaces: 67006400)			Immediately	$ 7.30
12	WP67004515		Pan, Crisper   (Replaces: 67004515)			Immediately	$ 176.72
13	WP67001054		Glide, Deli (left Hand)   (Replaces: 12656601)			Immediately	$ 8.82
14	WP67001053		Glide, Deli (right Hand)   (Replaces: 12656602V)			Immediately	$ 9.24
15	W11233072		Screw   (Replaces: 67006626)			Immediately	$ 14.72
16	WP67004515		Pan, Crisper   (Replaces: 67004515)			Immediately	$ 176.72
17	WP12642303WD		Brace, Crisper Cover   (Replaces: 67002748)				$ 112.26
18	WP67003854		Frame, Crisper   (Replaces: 67003854)			Immediately	$ 227.55
19	WP67006704		Glass, Crisper   (Replaces: 67006704)				$ 212.77
20	67001073		Ladder, Center				$ 56.89
21	67001317		Ladder, Side				$ 39.13
22	W10171558		Divider, Basket (upper)				$ 42.49
23	WP12603701		Support, Crisper Frame   (Replaces: 12603701)				$ 10.83
24	WP67001719		Track, Drawer   (Replaces: 67001719)			Immediately	$ 8.99
25	12645026		Drawer, Pantry		Appelez-nous	-
26	67004554		Trim, Pantry Front		Appelez-nous	-
27	67004556		Divider, Pantry				$ 21.41
28	WPW10474715		Gear Spur (left Hand)   (Replaces: W10146446)			Immediately	$ 32.76
29	W10348260		Mount, Gear (right Hand)   (Replaces: W10146442)				$ 89.90
30	W10348259		Mount, Gear (left Hand)   (Replaces: W10146441)				$ 89.87
31	W10149389		Lift, Bail Arm				$ 92.66
32	WPW10474716		Gear Spur (right Hand)   (Replaces: W10158749)			Immediately	$ 32.42
33	67002002		Slide, Pantry			Immediately	$ 16.04
34	67004555		Bar, Pantry Control		Appelez-nous	-
35	WP12531601		Tunnel, Pantry   (Replaces: 67002004)				$ 11.04
36	67002005		Gasket, Pantry		Appelez-nous	-
