SELECT A DIAGRAM

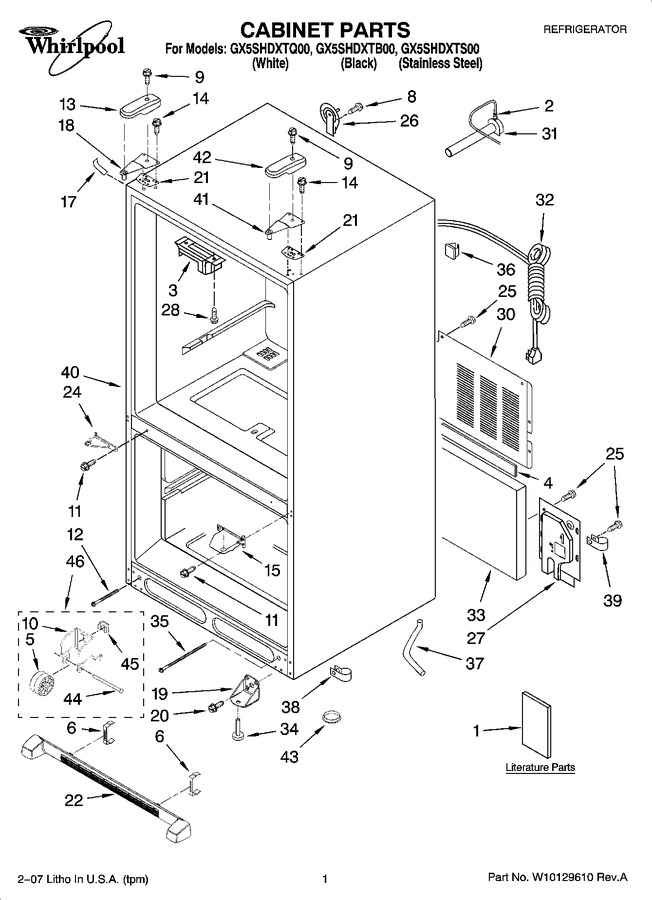

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	16025690		Tech Sheet		Appelez-nous	-
1	12863068		Tag, Energy		Appelez-nous	-
1	12828178		Owners Manual		Appelez-nous	-
2	W11176463		Elbow, Fill Tube   (Replaces: 8170414)			Immediately	$ 119.86
3	WP67003405		Plate, Pivot   (Replaces: 8208254)			Immediately	$ 8.21
4	8170924		Gasket		Appelez-nous	-
5	WP10450603		Roller   (Replaces: 67005127)				$ 8.27
6	4344155		Clip, Grille		Appelez-nous	-
8	WP98165		Screw   (Replaces: 67006287)				$ 8.57
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 7.55
10	12456801V		Bracket, Roller   (Replaces: 12456801)				$ 53.10
11	W11573362		Screw   (Replaces: 67006380)				$ 14.72
12	71003131		Bolt, Adjusting (front)   (Replaces: 67006611)			Immediately	$ 7.08
13	8208248		Cover, Left Hinge (black)		Appelez-nous	-
13	8208247		Cover, Left Hinge (white)		Appelez-nous	-
14	WP489349		Screw   (Replaces: 67006303)			Immediately	$ 8.43
15	67006379		Hinge, Center (rt) (white)		Appelez-nous	-
15	W10918164		Hinge, Center (rt) (black)   (Replaces: 67006443)				$ 91.53
17	67003485		Cover, Corner (black)   (Replaces: 8170858)			Immediately	$ 22.14
17	67003484		Cover, Corner (white)   (Replaces: 8170860)				$ 21.42
18	WP12566607ED		Hinge, Top Left   (Replaces: 12566603ED)				$ 91.09
19	12906303WD		Bracket, Foot (2)   (Replaces: 67007174)				$ 88.58
20	67006564		Screw			Immediately	$ 8.15
21	8208257		Shim, Hinge		Appelez-nous	-
22	WPW10534153		Grille Assembly (includes Clips) (black)   (Replaces: 67006375)				$ 154.57
22	WPW10534154		Grille Assembly (includes Clips) (white)   (Replaces: 67006377)				$ 153.66
24	W10918113		Hinge, Center (lh) (white)   (Replaces: 8208392)				$ 97.92
24	67006442		Hinge, Center (lh) (black)				$ 120.77
25	67006425		Screw			Immediately	$ 7.30
26	12726003		Cover, Water Line   (Replaces: 8208155)				$ 19.19
27	12479803		Cover, Water Valve		Appelez-nous	-
28	W11233072		Screw   (Replaces: 67006626)			Immediately	$ 14.72
30	8170910		Cover, Unit		Appelez-nous	-
31	W11817981		Fill Tube Assy.   (Replaces: 8208154)			Immediately	$ 91.27
32	67007121		Cord, Power		Appelez-nous	-
33	8171247		Insulation, Sound		Appelez-nous	-
34	W11177593		Foot Brake   (Replaces: 8171272)				$ 12.18
35	67006612		Bolt, Adjusting (rear)		Appelez-nous	-
36	WPM0104106		Clip   (Replaces: 4344265)				$ 8.17
37	8170861		Tube, Drain		Appelez-nous	-
38	67001067		Clip, Drain Tube   (Replaces: 8170862)				$ 9.66
39	W10833902		Clamp, Tube   (Replaces: 8170942)				$ 11.54
41	WP12566606ED		Hinge, Top Right   (Replaces: 8170974)			Immediately	$ 47.13
42	8208261		Cover, Right Hinge (white)		Appelez-nous	-
42	8208262		Cover, Right Hinge (black)		Appelez-nous	-
43	4344287		Plug, Button		Appelez-nous	-
44	M1205302		Pin				$ 5.85
45	M0286708		Nut, Speed				$ 47.85
46	8170886		Roller Assembly		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
