SELECT A DIAGRAM

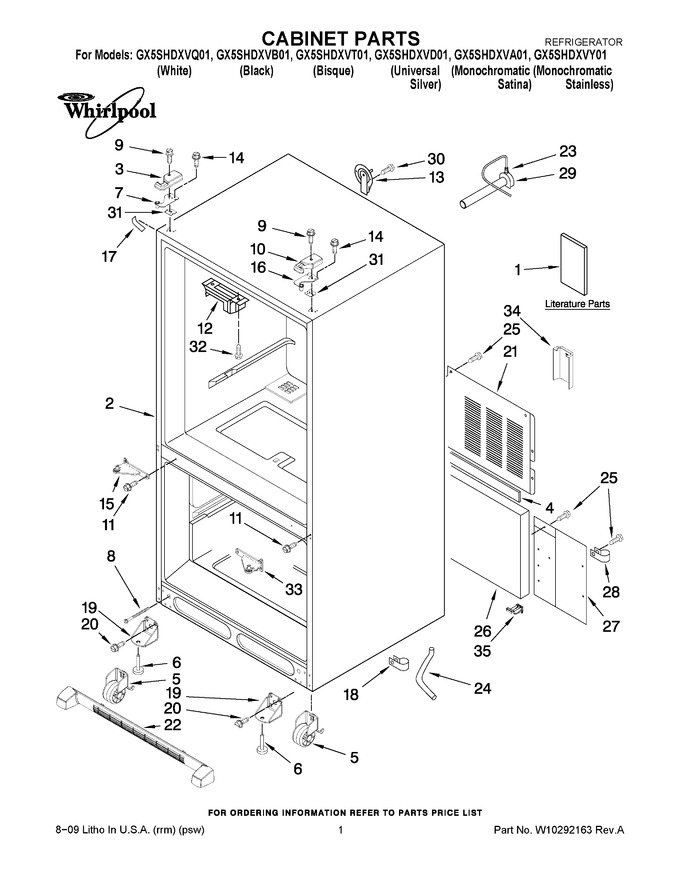

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Freezer Door Parts


04 - Refrigerator Liner Parts


05 - Refriger


06 - Unit Parts


07 - Shelf Parts


08 - Icemaker Parts


09 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10187811		Energy Guide		Appelez-nous	-
1	W10238844		Tech Sheet		Appelez-nous	-
1	W10200283		Use & Care Guide		Appelez-nous	-
2	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
3	WPW10337634		Cover, Left Hinge (white)   (Replaces: 12962301W)			Immediately	$ 22.42
3	W10337647		Cover, Left Hinge (black)   (Replaces: 12962301B)			Immediately	$ 22.22
3	12962301Q		Cover, Left Hinge (biscuit)		Appelez-nous	-
3	WPW10337648		Cover, Left Hinge (apollo Grey)   (Replaces: 12962301AP)				$ 22.02
4	B5759655		Gasket				$ 12.41
5	12580304		Roller Assy. (2)				$ 5.84
6	10354002		Foot, Brake			Immediately	$ 7.38
7	W11592375		Hinge, Left Top   (Replaces: 12963204ED)				$ 29.09
8	71003131		Bolt, Adjusting (front Roller)   (Replaces: 12606103)			Immediately	$ 6.74
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.19
10	WP67005956		Cover, Right Hinge (black)   (Replaces: 12962302B)				$ 21.47
10	67005958		Cover, Right Hinge (white)   (Replaces: 12962302W)				$ 20.54
10	WPW10191117		Cover, Right Hinge (apollo Grey)   (Replaces: 12962302AP)				$ 21.95
10	12962302Q		Cover, Right Hinge (biscuit)		Appelez-nous	-
11	WP489349		Screw   (Replaces: 12990101)			Immediately	$ 7.88
12	WP67003405		Block, Pivot   (Replaces: 12698403)			Immediately	$ 7.82
13	12726003		Cover, Water Line				$ 18.28
14	WP489349		Screw (3)   (Replaces: 12992403)			Immediately	$ 7.88
15	W10917988		Hinge, Center (lt) (apollo Grey)   (Replaces: 13000001AP)			Immediately	$ 91.08
15	W10918164		Hinge, Center (lt) (black)   (Replaces: 13000007ED)				$ 86.64
15	W10918113		Hinge, Center (lt) (white)   (Replaces: 13000001WD)				$ 93.26
16	W11592374		Hinge, Right Top   (Replaces: 12963205ED)			Immediately	$ 29.02
17	67003485		Cover, Corner (black)   (Replaces: 12587703B)			Immediately	$ 21.09
17	WP12587703AP		Cover, Corner (apollo Grey)   (Replaces: 12587703AP)				$ 7.69
17	12587703C		Cover, Corner (biscuit)		Appelez-nous	-
17	12587703W		Cover, Corner (white)				$ 21.81
18	W10157973		Clip, Drain				$ 7.80
19	12906303WD		Bracket, Foot (2)				$ 84.36
20	67006564		Screw (4)   (Replaces: 12991302)			Immediately	$ 7.69
21	W10211854		Cover, Unit				$ 169.88
22	WPW10534155		Grille, Toe (apollo Grey)   (Replaces: W10244558)			Immediately	$ 119.56
22	WPW10534154		Grille, Toe (white)   (Replaces: W10244559)				$ 146.34
22	WPW10534153		Grille, Toe (black)   (Replaces: W10244561)				$ 147.21
22	W10244562		Grille, Toe (bisque)		Appelez-nous	-
23	WPM0114003		Clip, Speed   (Replaces: M0114003SP)				$ 11.05
24	W10619951		Tube, Drain   (Replaces: W10210988)			Immediately	$ 42.39
25	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.95
26	12820505		Fiber, Acoustic				$ 71.70
27	12479803		Cover, Water Valve		Appelez-nous	-
28	W10833902		Clamp, Tube   (Replaces: M0108105)				$ 10.99
29	W11176463		Elbow, Fill Tube   (Replaces: 10463203SP)			Immediately	$ 114.15
30	WP98165		Screw   (Replaces: 12990504)				$ 8.00
31	12999502		Shim, Top Hinge (right)				$ 95.81
31	12999501		Shim, Top Hinge (left)				$ 94.79
32	WP7101P126-60		Screw, Block   (Replaces: 12990303)			Immediately	$ 7.61
33	W10918164		Hinge, Center (rt) (black)   (Replaces: 13000008ED)				$ 86.64
33	W10917988		Hinge, Center (rt) (apollo Grey)   (Replaces: 13000002AP)			Immediately	$ 91.08
33	13000002WD		Hinge, Center (rt) (white)				$ 153.32
34	W10208592		Guard-water Valve		Appelez-nous	-
35	W10216614		Sweep-water Valve				$ 18.51

    View Diagram in Separate Window       Print Part List
