Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13107801SQ Door, Left (stainless) Appelez-nous -
2 13107802SQ Door, Right (stainless) Appelez-nous -
3 W10169346 Bucket, Can Dispenser Special Order $ 49.22

4 WP13005401SP Sleeve, Can Dispenser   (Replaces: 13005401SP) In-Stock Immediately $ 79.12

5 WPW10289497 Bucket, Door (gallon(1))   (Replaces: 12699208) In-Stock Immediately $ 81.09

5 WPW10371194 Bucket, Door Medium (4)   (Replaces: 12849106) In-Stock Immediately $ 77.23

6 WP12722803AP Mullion, Door (apollo Grey)   (Replaces: 12732501AP) In-Stock Immediately $ 177.93

7 W11311945 Screw   (Replaces: 12990204) Special Order $ 14.72

8 W10830162 Gasket, Door (apollo Grey)   (Replaces: W10179332) In-Stock Immediately $ 212.57

9 W11351147 Handle, Door (stainless)   (Replaces: W10223019) Special Order $ 198.22

10 WP98165 Screw   (Replaces: 12990504) Special Order $ 8.57

11 W11703060 Stop, Door (apollo Grey)   (Replaces: 12968202AP) Special Order $ 15.46

12 2220214 Nameplate Special Order $ 32.43

13 WP12992902 Mount, Handle   (Replaces: 12992902) Special Order $ 11.91

15 WP12028505AP Closure, Door (apollo Grey)   (Replaces: 12028505AP) In-Stock Immediately $ 61.46

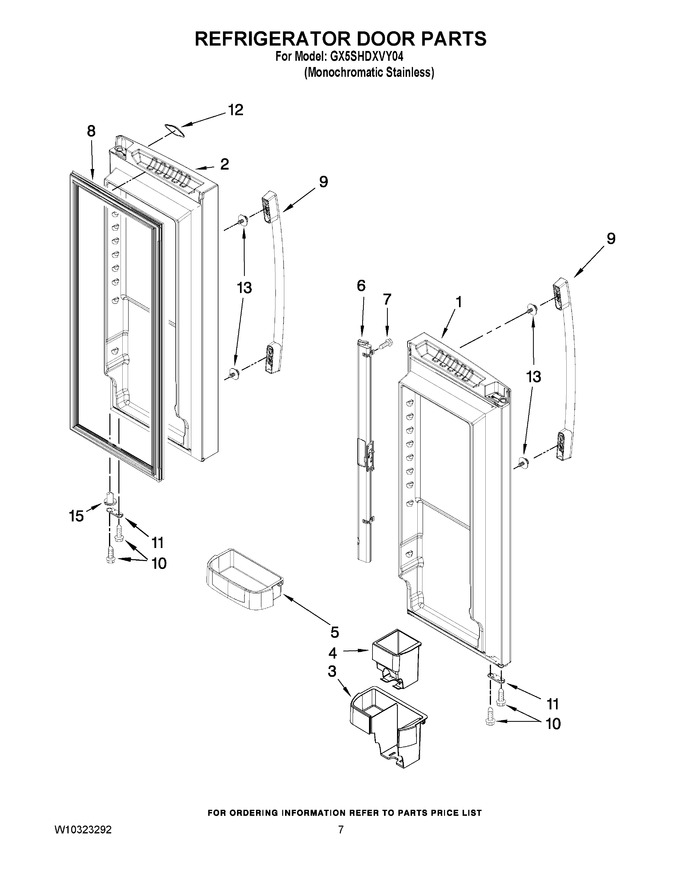

    View Diagram in Separate Window     Print Icon   Print Part List
