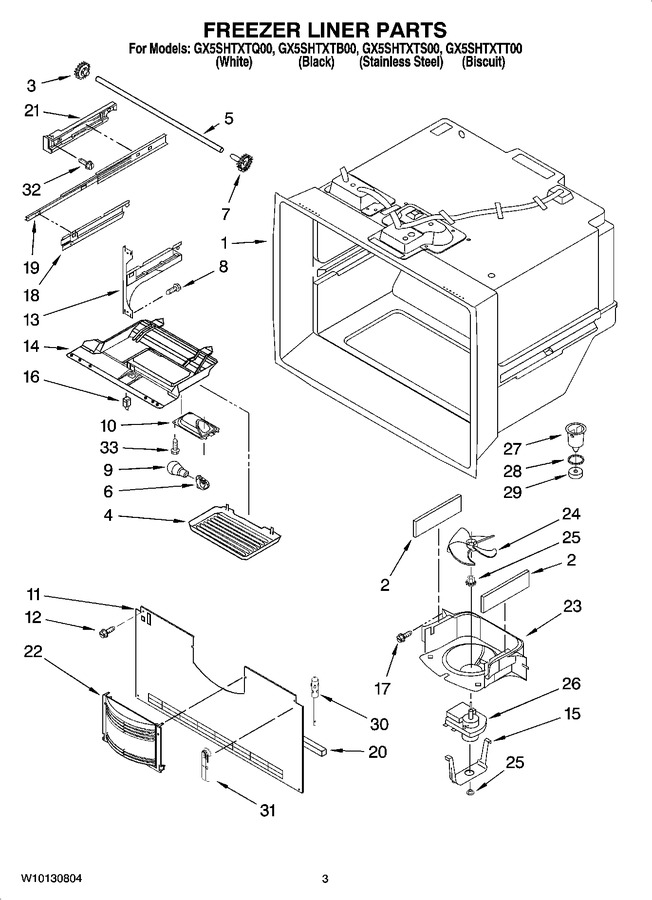

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | W10856123 | Gasket, Foam (Replaces: 8170897) |
|
Immediately | $ 8.06 | ||||
| 3 | 12002497 | Gear (left) (includes Item 7) (Replaces: 8171236) |
|
Immediately | $ 22.51 | ||||
| 4 | 8208205 | Cover, Light |
|
- | |||||
| 5 | W11028221 | Shaft (Replaces: 8171278) |
|
$ 33.24 | |||||
| 6 | W11447232 | Socket, Light (Replaces: 8170839) |
|
Immediately | $ 13.87 | ||||
| 7 | 12002497 | Gear (right) (includes Item 3) (Replaces: 8171237) |
|
Immediately | $ 22.51 | ||||
| 8 | WP98165 | Screw (Replaces: 67006473) |
|
$ 8.57 | |||||
| 9 | W11679940 | Bulb, Light (Replaces: A0282812) |
|
Immediately | $ 11.30 | ||||
| 10 | 8170838 | Housing, Light |
|
- | |||||
| 11 | W11727809 | Cover, Evaporator (Replaces: 67005873) |
|
$ 94.02 | |||||
| 12 | 67006425 | Screw |
|
Immediately | $ 7.30 | ||||
| 13 | 8171232 | Bracket, Door (left) |
|
- | |||||
| 13 | 8171233 | Bracket, Door (right) |
|
- | |||||
| 14 | 8208206 | Housing, Lighting |
|
- | |||||
| 15 | WP67005633 | Clip, Evap. Motor (Replaces: 8208285) |
|
$ 8.07 | |||||
| 16 | W11396033 | Switch, Light (Replaces: 8208349) |
|
Immediately | $ 37.30 | ||||
| 17 | WP33001882 | Screw (Replaces: 67006737) |
|
$ 83.71 | |||||
| 18 | WPW10280613 | Bracket, Basket (right) (Replaces: 8171235) |
|
$ 92.15 | |||||
| 18 | WPW10280608 | Bracket, Basket (left) (Replaces: 8171234) |
|
$ 92.15 | |||||
| 19 | W11658402 | Slide, Drawer (2) (Replaces: 67006607) |
|
Immediately | $ 127.51 | ||||
| 20 | W11159728 | Gasket, Bottom (Replaces: 8171083) |
|
Immediately | $ 28.86 | ||||
| 21 | 8208216 | Bracket, Slide (right) |
|
- | |||||
| 21 | 8208215 | Bracket, Slide (left) |
|
- | |||||
| 22 | WPW10175909 | Cover, Fan Shroud (Replaces: 13024802) |
|
Immediately | $ 85.72 | ||||
| 23 | 8171153 | Shroud, Evap.fan |
|
- | |||||
| 24 | WP2169142 | Blade, Fan (evaporator) (Replaces: 8170544) |
|
Immediately | $ 43.41 | ||||
| 25 | WP67002780 | Grommet (2) (Replaces: 8171086) |
|
$ 8.20 | |||||
| 26 | WPW10128551 | Motor, Evaporator (Replaces: 8170894) |
|
Immediately | $ 78.75 | ||||
| 27 | W10815413 | Funnel, Drain (Replaces: 4344385) |
|
Immediately | $ 51.50 | ||||
| 28 | WPM0500703 | Seal (Replaces: 4344311) |
|
$ 11.47 | |||||
| 29 | WPB8381501 | Gasket (Replaces: 4344310) |
|
$ 7.78 | |||||
| 30 | 12002355 | Thermistor (Replaces: 8208196) |
|
Immediately | $ 47.36 | ||||
| 31 | WP67003924 | Cover, Thermistor (Replaces: 8208202) |
|
$ 8.21 | |||||
| 32 | WP489474 | Screw (Replaces: 67006406) |
|
Immediately | $ 8.55 | ||||
| 33 | 67006530 | Screw |
|
- | |||||
| 33 | 67006095 | Harness, Lights (freezer) |
|
- |
