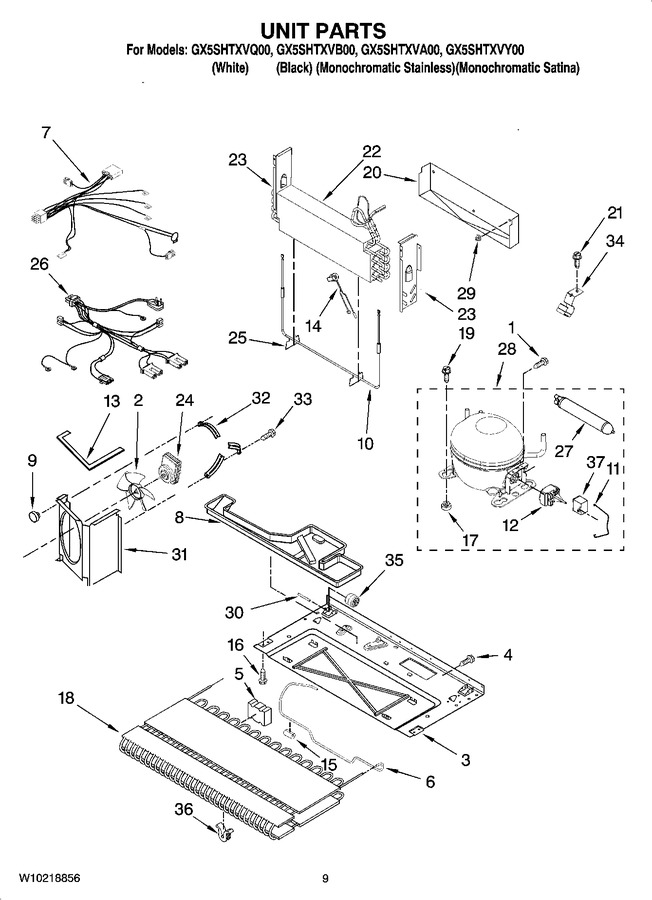

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12992301 | Screw (Replaces: 67006433) |
|
$ 7.32 | |||||
| 2 | W10156818 | Blade, Fan (Replaces: W10162928) |
|
Immediately | $ 62.11 | ||||
| 3 | 67005889 | Basepan |
|
- | |||||
| 4 | 67006425 | Screw |
|
Immediately | $ 6.95 | ||||
| 5 | 67005491 | Block, Condenser |
|
- | |||||
| 6 | W10134293 | Tube, Discharge |
|
$ 55.52 | |||||
| 7 | W10119856 | Harness, Evap. Heater |
|
$ 105.98 | |||||
| 8 | WP12579803 | Pan, Drain (Replaces: 67007175) |
|
$ 245.45 | |||||
| 9 | 61004743 | Grommet (3) |
|
$ 5.51 | |||||
| 10 | WP67002493 | Heater, Defrost (Replaces: 67002493) |
|
Immediately | $ 146.15 | ||||
| 11 | 2255199 | Clip, Retainer |
|
- | |||||
| 12 | WPW10197428 | Start Device (Replaces: W10128791) |
|
Immediately | $ 89.21 | ||||
| 13 | WP854334 | Gasket (Replaces: 61003210) |
|
$ 13.28 | |||||
| 14 | WPW10165425 | Thermostat, Defrost (Replaces: W10165425) |
|
Immediately | $ 74.57 | ||||
| 15 | 67005680 | Grommet (2) |
|
$ 21.05 | |||||
| 16 | 12992101 | Screw (Replaces: 67006573) |
|
- | |||||
| 17 | WPW10169124 | Grommet (4) (Replaces: W10169124) |
|
Immediately | $ 7.19 | ||||
| 18 | WP67006131 | Condenser (Replaces: 67006131) |
|
$ 366.74 | |||||
| 19 | 12846902 | Screw (Replaces: 67006432) |
|
$ 12.99 | |||||
| 20 | W11547653 | Tray, Drip (Replaces: 67002490) |
|
$ 54.30 | |||||
| 21 | WP33001882 | Screw (Replaces: 67006737) |
|
$ 79.72 | |||||
| 22 | 12002041 | Evaporator Kit (incl. Evap., Heat Shield, & Instr. Sheet) |
|
$ 348.63 | |||||
| 23 | 67001084 | Dam (right Side) |
|
- | |||||
| 23 | 67001083 | Dam (left Side) |
|
- | |||||
| 24 | W11613295 | Motor, Fan (Replaces: 67004432) |
|
Immediately | $ 136.84 | ||||
| 25 | W11673433 | Clip, Heater (Replaces: 10428101) |
|
$ 141.12 | |||||
| 26 | W10188474 | Harness, Unit With Power Cord |
|
- | |||||
| 27 | WPW10143759 | Drier (Replaces: W10143759) |
|
Immediately | $ 30.78 | ||||
| 28 | W10160407 | Compressor (includes Items 11,12,17,27) (Replaces: W10134623) |
|
$ 599.92 | |||||
| 29 | 10623002 | Clip, Evaporator |
|
$ 11.53 | |||||
| 30 | 67006434 | Axle, Roller (2) |
|
Immediately | $ 7.52 | ||||
| 31 | 12575309 | Shroud |
|
$ 185.38 | |||||
| 32 | WP67004953 | Bracket, Fan Motor (Replaces: 67004953) |
|
$ 68.83 | |||||
| 33 | WP67004954 | Screw (Replaces: 67004954) |
|
$ 7.79 | |||||
| 34 | 10547003 | Clip, Drier |
|
- | |||||
| 35 | WP67005149 | Roller (2) (Replaces: 67005149) |
|
Immediately | $ 22.02 | ||||
| 36 | WPW10137529 | Grommet, Cond. (4) (Replaces: W10137529) |
|
$ 8.34 | |||||
| 37 | WPW10662129 | Capacitor (Replaces: 2264017) |
|
Immediately | $ 58.86 | ||||
| WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 105.25 | |||||
| 978028 | Valve, Access (1/2) |
|
- | ||||||
| SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | ||||||
| 978026 | Valve, Access (5/16``) |
|
Immediately | $ 128.09 | |||||
| 876764 | Valve, Access(3/16``) |
|
Immediately | $ 91.35 | |||||
| 978030 | Valve, Access (3/4``) |
|
$ 130.71 | ||||||
| 978029 | Valve Access (5/8``) |
|
$ 93.85 |
