Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 12978051SQ Door, Left Stainless Appelez-nous -
2 12978052SQ Door, Right Stainless Appelez-nous -
3 WP13005401SP Sleeve, Can Dispenser   (Replaces: 13005401SP) In-Stock Immediately $ 75.35

4 W10169346 Bucket, Can Dispenser Special Order $ 49.22

5 WPW10289497 Bucket, Door (gallon (1) (gripperno.12567309))   (Replaces: 12699208SP) In-Stock Immediately $ 77.23

5 12849127 Bucket, Door (medium (3) (gripperno.12567307)) Appelez-nous -
6 WP12722803AP Mullion, Door (apollo Grey)   (Replaces: 12722803APK) In-Stock Immediately $ 177.93

7 W11311945 Screw   (Replaces: 12990204) Special Order $ 14.02

8 W10830162 Gasket, Door (apollo Grey)   (Replaces: W10179332) In-Stock Immediately $ 212.57

9 W11351147 Handle, Door (stainless)   (Replaces: W10223019) Special Order $ 188.78

10 WP98165 Screw   (Replaces: 12990504) Special Order $ 8.00

11 W11703060 Stop, Door (apollo Grey)   (Replaces: 12968202AP) Special Order $ 14.72

12 2220214 Nameplate Special Order $ 32.43

13 WP12992902 Mount, Handle   (Replaces: 12992902) Special Order $ 11.07

15 WP12028505AP Closure, Door (apollo Grey)   (Replaces: 12028505AP) In-Stock Immediately $ 61.46


    View Diagram in Separate Window     Print Icon   Print Part List

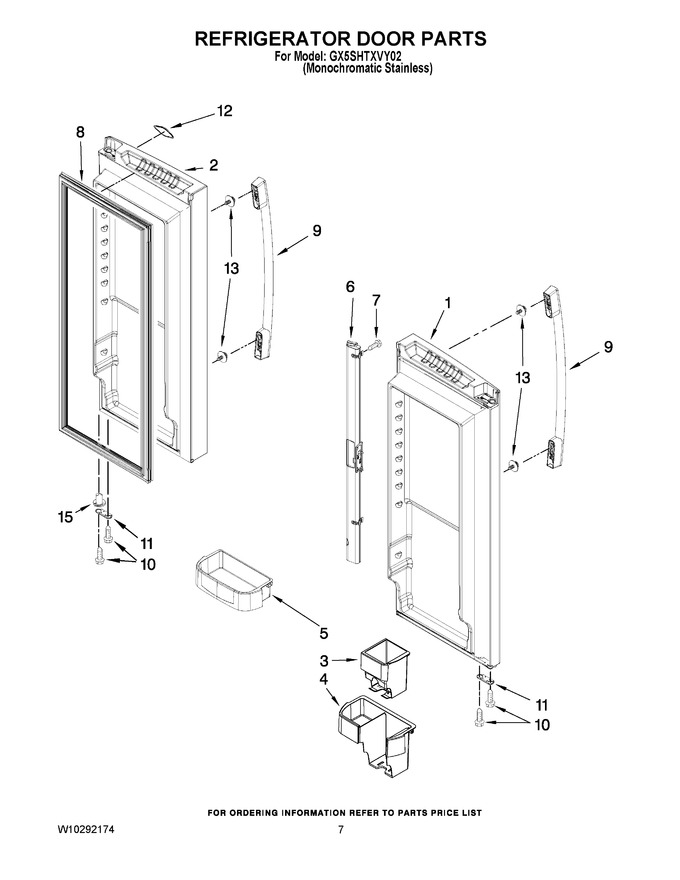

Diagram for GX5SHTXVY02
