SELECT A DIAGRAM

01 - Motor And Drive, Literature


02 - Frame

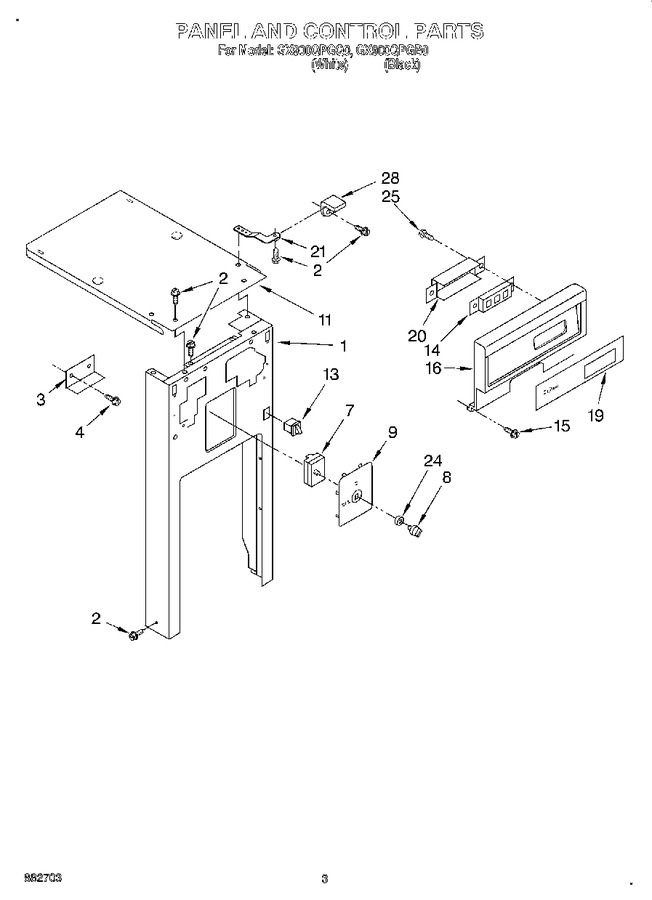

03 - Panel And Control


04 - Container


05 - Powerscrew And Ram


06 - Accessory


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9871073		Panel, Front (white)		Appelez-nous	-
1	9871072		Panel, Front (black)				$ 246.38
2	WP489478		Screw, 8-18 X 1/2   (Replaces: 489478)				$ 7.75
3	9870125		Bracket, Protector		Appelez-nous	-
4	WP489069		Screw, 8-18 X 1/2   (Replaces: 780230)			Immediately	$ 7.86
7	777380		Switch, Rotary				$ 154.58
8	WP4155141		Knob, Switch   (Replaces: 4155141)				$ 56.84
9	9870356		Plate, Switch (white)		Appelez-nous	-
9	9871161		Plate, Switch (black)				$ 90.67
11	W11684543		Cover, Top (recessed)   (Replaces: 608572)		Appelez-nous	-
13	WP4387911		Switch, Drawer Tilt   (Replaces: 4152058)			Immediately	$ 39.66
14	WP9871567		Assembly, Switch (white)   (Replaces: 9871567)				$ 241.16
14	9871140		Assembly, Switch (black)				$ 159.55
15	246131		Screw, 6-20 X 3/8		Appelez-nous	-
16	9871136		Escutcheon, Control (white)		Appelez-nous	-
16	9871137		Escutcheon, Control (black)		Appelez-nous	-
19	9871545		Insert, Decorative (black)		Appelez-nous	-
19	9871544		Insert, Decorative (white)		Appelez-nous	-
20	9870244		Shield, Switch		Appelez-nous	-
21	W11729437		Bracket, Retainer (r.h.)   (Replaces: 9870157)			Immediately	$ 23.31
21	W11729437		Bracket, Retainer (l.h.)   (Replaces: 9870158)			Immediately	$ 23.31
24	WP777383		Nut, Rotary Switch   (Replaces: 777383)				$ 11.60
25	777459		Screw		Appelez-nous	-
28	WP780239		Bracket, Mounting (2) (alternate)   (Replaces: 780239)				$ 27.17
