SELECT A DIAGRAM

01 - Motor And Drive, Literature


02 - Frame


03 - Panel And Control


04 - Powerscrew And Ram


05 - Container


06 - Accessory

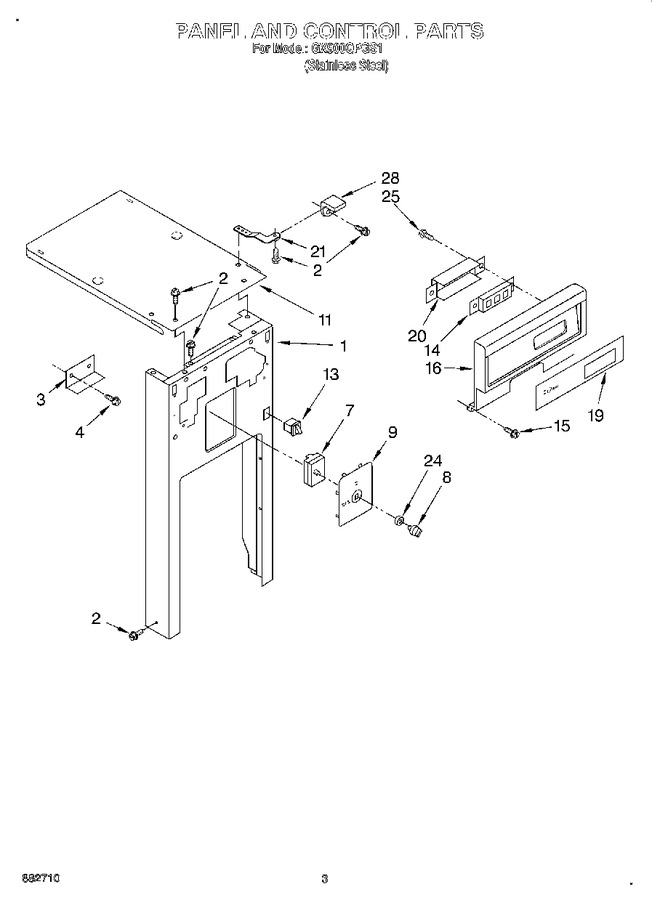

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9871072		Panel, Front				$ 246.38
2	WP489478		Screw, 8-18 X 1/2   (Replaces: 489478)				$ 8.18
3	9870125		Bracket, Protector		Appelez-nous	-
4	WP489069		Screw, 8-18 X 1/2   (Replaces: 780230)			Immediately	$ 8.40
7	777380		Switch, Rotary				$ 162.31
8	WP4155141		Knob, Switch   (Replaces: 4155141)				$ 59.68
9	9871161		Plate, Switch				$ 95.20
11	W11684543		Cover, Top (recessed)   (Replaces: 608572)		Appelez-nous	-
13	WP4387911		Switch, Drawer Tilt   (Replaces: 4152058)			Immediately	$ 41.64
14	9871140		Assembly, Switch				$ 159.55
15	246131		Screw, 6-20 X 3/8		Appelez-nous	-
16	9871137		Escutcheon, Control		Appelez-nous	-
19	9871545		Insert, Decorative		Appelez-nous	-
20	9870244		Shield, Switch		Appelez-nous	-
21	W11729437		Bracket, Retainer (r.h.)   (Replaces: 9870157)			Immediately	$ 24.48
21	W11729437		Bracket, Retainer (l.h.)   (Replaces: 9870158)			Immediately	$ 24.48
24	WP777383		Nut, Rotary Switch   (Replaces: 777383)				$ 12.83
25	777459		Screw		Appelez-nous	-
28	WP780239		Bracket, Mounting (2) (alternate)   (Replaces: 780239)				$ 28.53

    View Diagram in Separate Window       Print Part List
