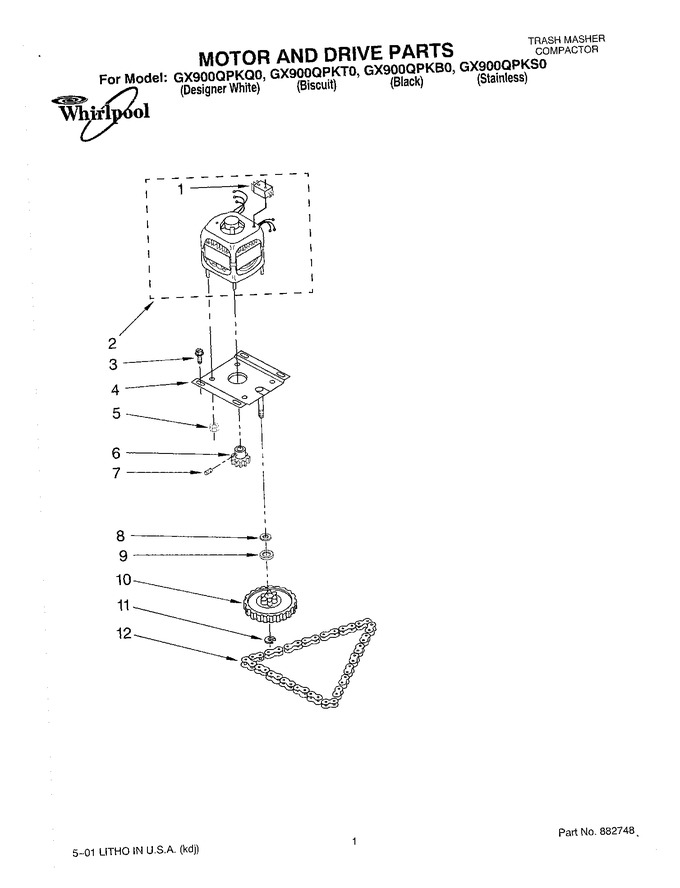

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10439651		Switch, Motor   (Replaces: 777971)				$ 326.85
2	W10439651		Motor, Drive (includes Illus. 1)   (Replaces: 9870343)				$ 326.85
3	WP8204624		Screw,   (Replaces: 9871067)				$ 16.65
4	776327		Plate, Motor		Appelez-nous	-
5	WP776338		Locknut, 10-32 (4)   (Replaces: 776338)				$ 19.35
6	882699		Gear, Drive   (Replaces: 4149667)				$ 117.67
7	WP454512		Pin, Slotted Spring   (Replaces: 454512)				$ 7.54
8	776035		Washer, Wave				$ 13.38
9	W11214485		Washer, Thrust   (Replaces: 297462)				$ 13.56
10	882699		Gear, Driven   (Replaces: 777124)				$ 117.67
11	WP776036		Clip, Ring   (Replaces: 776036)				$ 7.43
12	9870118A		Undercounter Conversion Kit   (Replaces: 9870118)				$ 57.48
12	780477		Chain, Drive				$ 206.73
	LIT9871676		Guide, Use And Care		Appelez-nous	-
	677821		Do-it-yourself Manual   (Replaces: LIT677821)				$ 35.01
	LIT8052029		Label, 1-800 Number		Appelez-nous	-
	LIT9871765		Sheet, Tech		Appelez-nous	-
