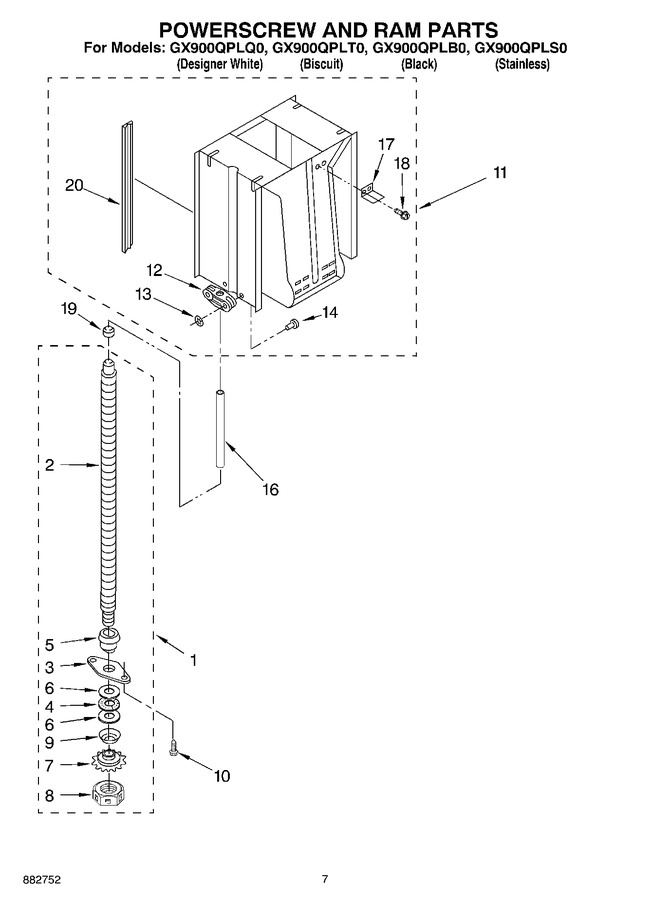

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10451272		Screw, Power Complete Assembly (2)   (Replaces: 9870500)			Immediately	$ 252.19
2	N/A		Screw, Power (available Only As Complete Assembly)		Appelez-nous	-
3	779121		Plate, Bearing (2)				$ 27.83
4	W10917043		Bearing, Needle (2)   (Replaces: 775482)				$ 13.78
5	776941		Hub, Power Screw (2)				$ 26.80
6	775481		Race, Thrust (4)				$ 50.10
7	W11679164		Sprocket, Washer (2)   (Replaces: 777385)		Appelez-nous	-
8	4154842		Nut, Power Screw (2)		Appelez-nous	-
9	WP777332		Washer, Cone (2)   (Replaces: 777332)				$ 6.27
10	WP8204624		Screw,   (Replaces: 9871067)				$ 16.65
11	W11696573		Ram Assembly   (Replaces: 9871251)				$ 318.82
12	WP9870163		Nut, Power   (Replaces: 9870163)				$ 94.02
13	WP90296		Clip   (Replaces: 90296)				$ 7.85
14	882694		Stud   (Replaces: 9870187)				$ 7.92
16	WP9870037		Stop, Ram Powerscrew (2)   (Replaces: 9870037)				$ 8.06
17	W11684541		Bracket, Top Limit Switch   (Replaces: 9870498)		Appelez-nous	-
18	WP489399		Screw, (2) 8-32 X 5/16   (Replaces: 489399)				$ 6.95
19	W11724671		Cap, Stop   (Replaces: 9870775)				$ 13.10
20	W10917246		Slide, Ram (4)   (Replaces: 9870169)				$ 119.54
