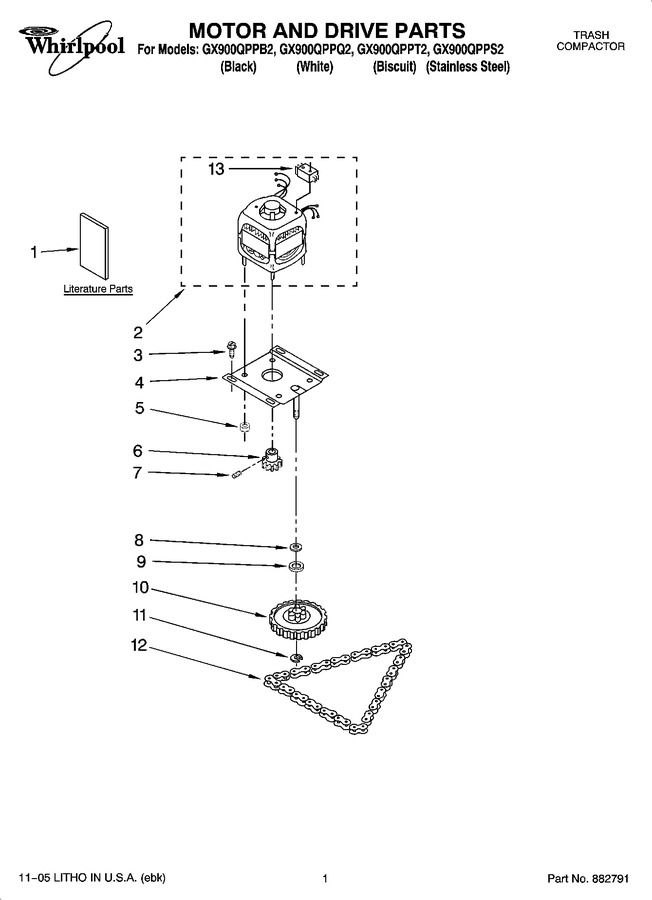

01 - Motor And Drive Parts
02 - Frame Parts
03 - Panel And Control Parts
04 - Container Parts
05 - Powerscrew And Ram Parts
06 - Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9872208 | Use & Care Guide |
|
- | |||||
| 1 | 9871765 | Sheet, Tech |
|
- | |||||
| 1 | 8052029 | Label, 1-800 Number |
|
- | |||||
| 1 | 677821 | Do-it-yourself Manual |
|
$ 35.01 | |||||
| 1 | N/A | Do-it-yourself Repair Manuals |
|
- | |||||
| 2 | W10439651 | Motor, Drive (includes Item 13) (Replaces: 9870343) |
|
$ 326.85 | |||||
| 3 | WP8204624 | Screw, (Replaces: 9871067) |
|
$ 16.65 | |||||
| 4 | 776327 | Plate, Motor |
|
- | |||||
| 5 | WP776338 | Locknut, 10-32 (4) (Replaces: 776338) |
|
$ 19.35 | |||||
| 6 | 882699 | Gear, Drive (Replaces: 4149667) |
|
$ 117.67 | |||||
| 7 | WP454512 | Pin, Slotted Spring (Replaces: 454512) |
|
$ 7.54 | |||||
| 8 | 776035 | Washer, Wave |
|
$ 13.38 | |||||
| 9 | W11214485 | Washer, Thrust (Replaces: 297462) |
|
$ 13.56 | |||||
| 10 | 882699 | Gear, Driven (Replaces: 777124) |
|
$ 117.67 | |||||
| 11 | WP776036 | Clip, Ring (Replaces: 776036) |
|
$ 7.43 | |||||
| 12 | 780477 | Chain, Drive |
|
$ 206.73 | |||||
| 13 | 9870118A | Undercounter Conversion Kit (Replaces: 9870118) |
|
$ 57.48 | |||||
| 13 | W10439651 | Switch, Motor Parts Not Illustrated And Optional Parts (not Included) (Replaces: 777971) |
|
$ 326.85 |
