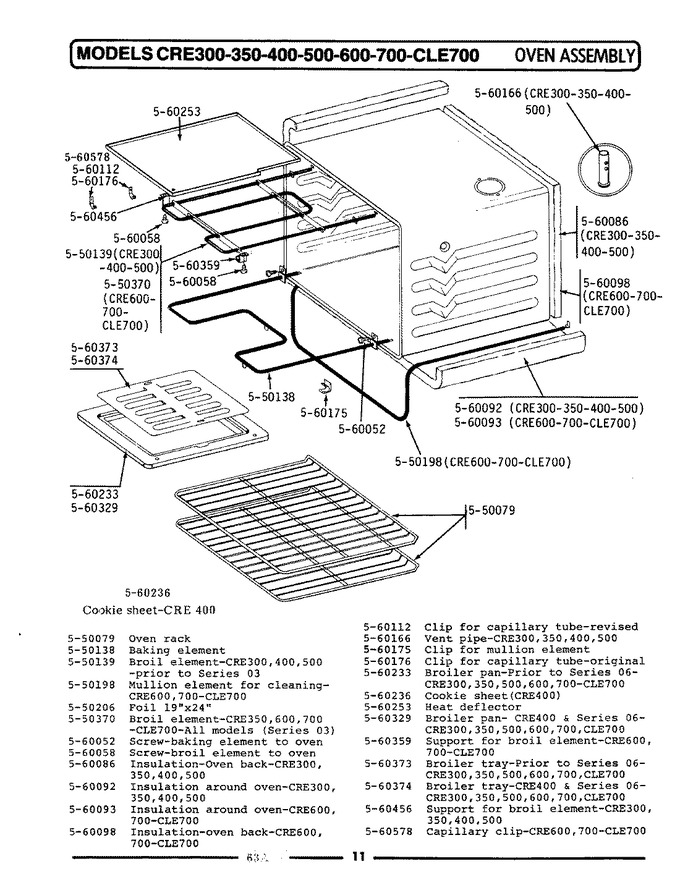

SELECT A DIAGRAM

01 - Auxiliary Blower Assembly


02 - Base Assembly & Components


03 - Control Panel


04 - Door Assembly


05 - Drawer Assembly


06 - Front View


07 - Latch Assembly


08 - Microwave Base Assembly


09 - Microwave Blower & Exhaust Components


10 - Microwave Cabinet Assembly


11 - Microwave Door


12 - Microwave Oven Cavity


13 - Microwave Turn Tray


14 - Microwave Turntable


15 - Microwave-rear View


16 - Oven Assembly


17 - Rear View


18 - Top Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10282492		Oven Rack   (Replaces: 550079)			Immediately	$ 70.54
2	WP7406P043-60		Baking Element   (Replaces: 550138)				$ 123.36
3	550198		Mullion Element		Appelez-nous	-
4	550206		Foil		Appelez-nous	-
5	550370		Element Kit, Broil	03	Appelez-nous	-
6	560052		Screw		Appelez-nous	-
7	D517256		Screw   (Replaces: 560058)				$ 220.03
8	560093		Insulation		Appelez-nous	-
9	D510184P		Insulation   (Replaces: 560098)			Immediately	$ 84.20
10	560112		Clip For Capillary Tube		Appelez-nous	-
11	560175		Clip-mullion Element		Appelez-nous	-
12	560176		Clip-capillary Tube		Appelez-nous	-
13	4396923		Broiler Pan   (Replaces: 560233)			Immediately	$ 54.64
14	560253		Heat Deflector		Appelez-nous	-
15	4396923		Broiler Pan   (Replaces: 560329)	06		Immediately	$ 54.64
16	560359		Support-broil Element		Appelez-nous	-
17	4396923		Broiler Tray   (Replaces: 560373)			Immediately	$ 54.64
18	4396923		Broiler Tray   (Replaces: 560374)	06		Immediately	$ 54.64
19	560578		Capillary Clip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
