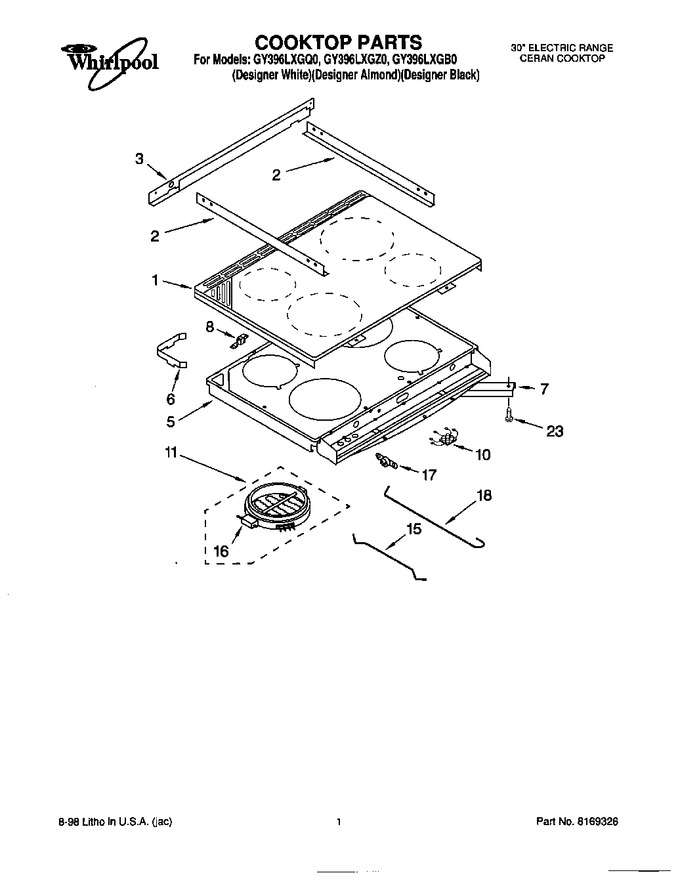

SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Door And Drawer


04 - Oven Chassis


05 - Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9752896CW		Cooktop, Ceran (white)		Appelez-nous	-
1	9752896CT		Cooktop, Ceran (almond)		Appelez-nous	-
1	9752896CB		Cooktop, Ceran (black)		Appelez-nous	-
2	9780265		Screw		Appelez-nous	-
2	9752890		Trim, Side (2)		Appelez-nous	-
3	9780265		Screw		Appelez-nous	-
3	9752889		Trim, Back		Appelez-nous	-
5	9752892		Support, Element		Appelez-nous	-
6	9752869		Sleeve, Vent		Appelez-nous	-
7	9781553		Brace, Support		Appelez-nous	-
8	9751629		Bracket, Pivot		Appelez-nous	-
10	9781497		Hot Light		Appelez-nous	-
11	3189894		Element, Surface (1400w - Lr)		Appelez-nous	-
11	3189897		Element, Surface (2400w - Lf)		Appelez-nous	-
11	3189896		Element, Surface (2100w - Rr)		Appelez-nous	-
11	3189895		Element, Surface (1700w - Rf)		Appelez-nous	-
15	9781460		Rod, Small Ceran Element		Appelez-nous	-
16	3190250		Limiter, Temp (1700w - Rf)		Appelez-nous	-
16	3190253		Limiter, Temp. (1400 W - Lr)		Appelez-nous	-
16	3190251		Limiter, Temp. (2400 W - Lf)		Appelez-nous	-
16	3190252		Limiter, Temp (2100w - Rr)		Appelez-nous	-
17	341196		Thermo-disc				$ 33.17
18	9781459		Rod, Large Ceran Element		Appelez-nous	-
23	9780272		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
