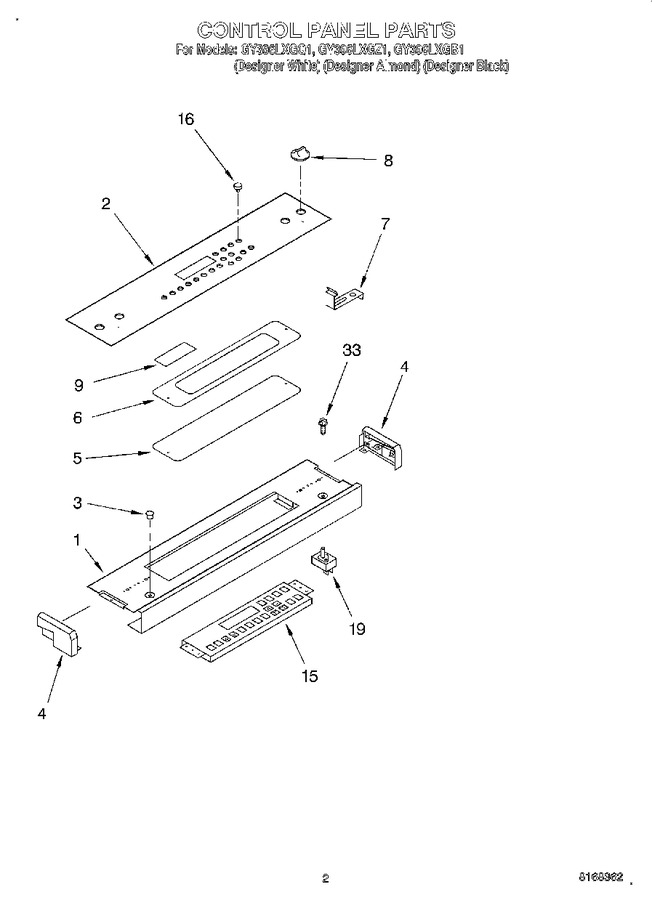

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9752897PB		Panel, Control (black)		Appelez-nous	-
1	9752897PW		Panel, Control (white)				$ 40.63
1	9752897PT		Panel, Control (almond)		Appelez-nous	-
1	9780265		Panel, Control (screw2)		Appelez-nous	-
2	9752899CW		Panel, Control (glass-console) (white)		Appelez-nous	-
2	9752899CB		Panel, Control (glass-console) (black)		Appelez-nous	-
2	9752899CT		Panel, Control (glass-console) (almond)		Appelez-nous	-
3	9780799		Lens, Indic. (2)		Appelez-nous	-
4	9780265		(end Cap Right) (screw)		Appelez-nous	-
4	9752908FB		End Cap Left (black)		Appelez-nous	-
4	814562		End Cap Left (white)   (Replaces: 9752908FW)				$ 7.53
4	9752908FT		End Cap Left (almond)		Appelez-nous	-
4	9752907FB		(end Cap Right) (black)		Appelez-nous	-
4	814562		(end Cap Right) (white)   (Replaces: 9752907FW)				$ 7.53
4	9752907FT		(end Cap Right) (almond)		Appelez-nous	-
5	9753504		Gasket, Cover		Appelez-nous	-
6	9752955		Cover, Control		Appelez-nous	-
7	9752906		Clip, Glass (2)		Appelez-nous	-
7	9780265		Screw		Appelez-nous	-
8	9752405FT		Knobs, Control (4) (almond)		Appelez-nous	-
8	WP9752405FW		Knobs, Control (4) (white)   (Replaces: 9752405FW)				$ 22.20
8	9752405FB		Knobs, Control (4) (black)				$ 17.20
9	9753503		Label-wpsi Control		Appelez-nous	-
15	423247		Screw		Appelez-nous	-
15	9752902		Control, Range		Appelez-nous	-
16	9752547FT		Knob, Timer (18) (almond)		Appelez-nous	-
16	9752547FW		Knob, Timer (18) (white)		Appelez-nous	-
16	9752547FB		Knob, Timer (18) (black)		Appelez-nous	-
19	WP9750646		Infinite Switch (2400w (2))   (Replaces: 9750646)			Immediately	$ 98.69
19	9750644		Infinite Switch (1700w)				$ 53.99
19	WP9750643		Infinite Switch (1400w)   (Replaces: 9750643)			Immediately	$ 145.12
33	WP3400882		Screw   (Replaces: 3400816)			Immediately	$ 7.55

    View Diagram in Separate Window       Print Part List
