SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

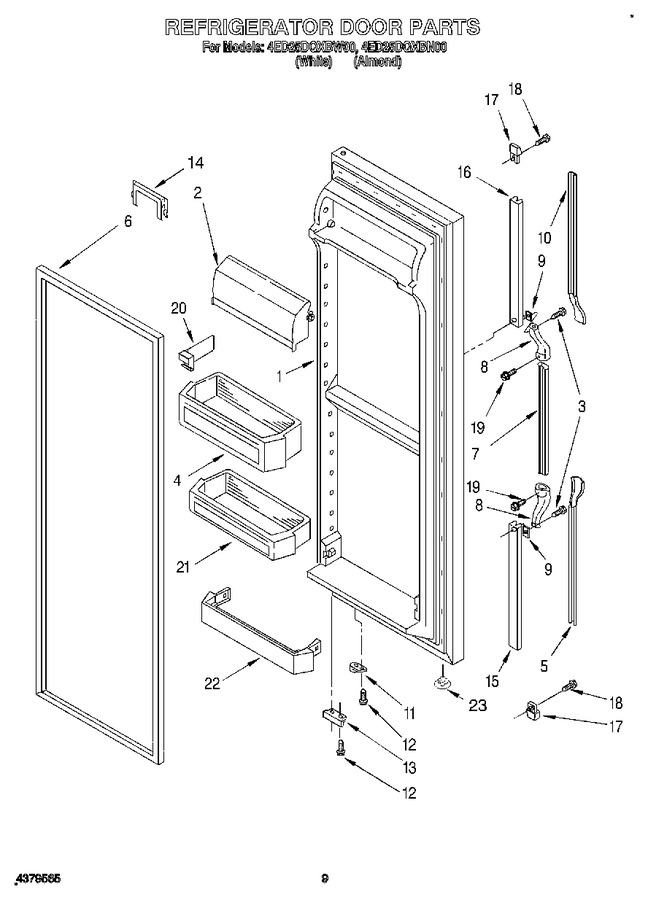

1	2159337		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
1	2159374		Refrigerator Door (includes Item 6) (almond)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2162903)			Immediately	$ 85.16
3	WP489128		Screw   (Replaces: 488500)				$ 10.88
4	2162888		Shelf Bin (2)		Appelez-nous	-
5	1119363		Insert, Handle (almond)		Appelez-nous	-
5	1119373		Insert, Handle (white)		Appelez-nous	-
6	2159075		Door Gasket, Magnetic (repair) (mist Beige)			Immediately	$ 317.14
6	2159075		Door Gasket, Magnetic (repair) (light Grey)   (Replaces: 2159079)			Immediately	$ 317.14
7	1124713		Handle, Center (white)		Appelez-nous	-
7	943079		Handle, Center (almond)		Appelez-nous	-
8	1119359		End Cap, Center Handle		Appelez-nous	-
9	935075		Shim		Appelez-nous	-
10	1119375		Insert, Handle (almond)		Appelez-nous	-
10	1119361		Insert, Handle (white)		Appelez-nous	-
11	4318165		Door Closer, Upper Cam   (Replaces: 2155313)			Immediately	$ 27.36
12	WP999367		Screw   (Replaces: 489367)				$ 7.86
13	2155332		Bracket, Door Stop		Appelez-nous	-
14	2163566		Retainer, Bottle		Appelez-nous	-
15	1119360		Retainer, Insert (bottom)		Appelez-nous	-
16	1119372		Retainer, Insert		Appelez-nous	-
17	2156220		End Cap (2)		Appelez-nous	-
18	489075		Screw		Appelez-nous	-
19	489022		Screw		Appelez-nous	-
20	2152335		Divider (3)		Appelez-nous	-
21	2162889		Shelf Bin		Appelez-nous	-
22	WP2177962K		Trivet, Shelf   (Replaces: 2171163)				$ 81.09
23	2151653		Hole Plug		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
