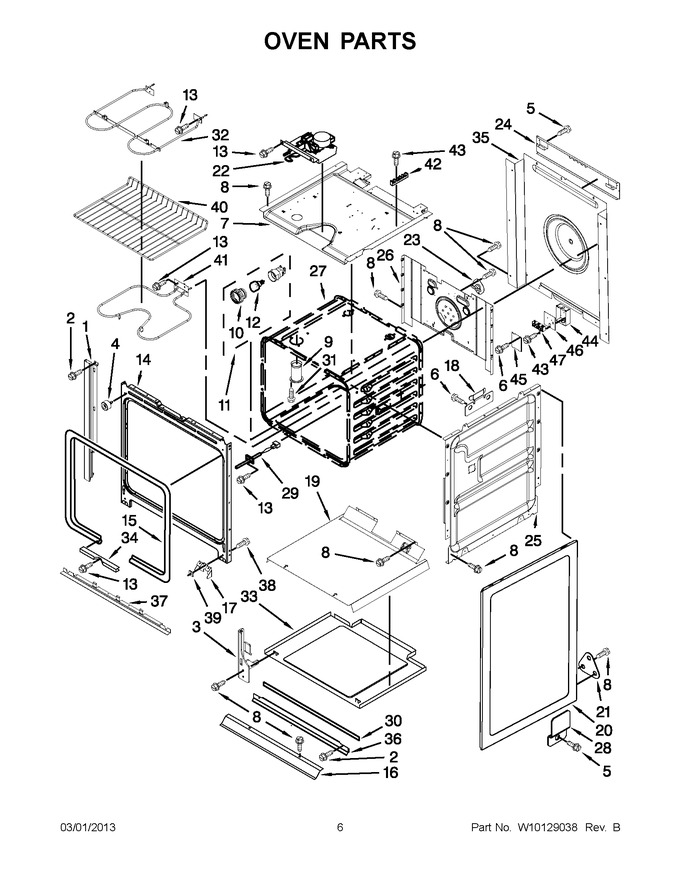

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9757735WH		Trim, Side (white (right))		Appelez-nous	-
1	9757735BL		Trim, Side (black (right))		Appelez-nous	-
1	9757734BT		Trim, Side (biscuit (left))		Appelez-nous	-
1	9757734SS		Trim, Side (stainless (left))		Appelez-nous	-
1	9757734WH		Trim, Side (white (left))		Appelez-nous	-
1	9757734BL		Trim, Side (black (left))		Appelez-nous	-
1	9757735SS		Trim, Side (stainless (right))		Appelez-nous	-
1	9757735BT		Trim, Side (biscuit (right))		Appelez-nous	-
2	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 7.75
3	WP4455606		Receiver, Hinge (right)   (Replaces: 4455606)			Immediately	$ 119.41
3	WP4455605		Receiver, Hinge (left)   (Replaces: 4455605)			Immediately	$ 115.36
4	W10105790		Bumper & Screw				$ 7.06
5	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
6	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.19
7	8303099		Chassis, Top				$ 70.97
8	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 116.63
10	W10067870		Lens, Light				$ 65.50
11	WPW10734065		Assembly, Light   (Replaces: W10009930)				$ 96.63
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
13	WP4449154		Screw   (Replaces: 4449154)				$ 7.56
14	WPW10115831		Frame, Front   (Replaces: 9760756)				$ 335.13
15	W11675844		Gasket, Door   (Replaces: W10074200)			Immediately	$ 69.75
16	4453951		Deflector, Vent Bottom		Appelez-nous	-
17	4452152		Bracket, Bottom Vent				$ 35.18
18	9757685		Guide, Side Panel				$ 36.23
19	4451478		Support, Insulation				$ 54.10
20	9760723PB		Body, Side Black		Appelez-nous	-
20	9760723PW		Body, Side (white)		Appelez-nous	-
20	9760723PC		Body, Side (biscuit)		Appelez-nous	-
21	9757461		Bracket,side Panel				$ 37.11
22	WP9760889		Latch, Motorized   (Replaces: 9760888)			Immediately	$ 328.65
23	WP9759243		Thermostat, Oven   (Replaces: 9759243)			Immediately	$ 55.44
24	9757811		Brace, Side Panel		Appelez-nous	-
25	W10782197		Side, Panel   (Replaces: 4455641)				$ 143.51
26	4452234		Back, Chassis		Appelez-nous	-
27	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
28	9759890		Clip, Side Panel				$ 9.71
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
30	9757717		Insulation, Bottom Vent		Appelez-nous	-
31	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.02
32	WP9760771		Element, Broil   (Replaces: 9760771)			Immediately	$ 116.41
33	9759713		Base, Chassis (not Serviceable)				$ 100.19
34	WP4448933		Gasket, Retainer   (Replaces: 4448933)				$ 8.86
35	WP4451747		Cover, Back   (Replaces: 4451747)				$ 142.92
36	9756481BL		Vent, Bottom Upper (black)		Appelez-nous	-
36	9756481SS		Vent, Bottom Upper (stainless)		Appelez-nous	-
36	9756481BT		Vent, Bottom Upper (biscuit)		Appelez-nous	-
36	9756481WH		Vent, Bottom Upper (white)		Appelez-nous	-
37	9756485WH		Trim, Bottom Vent (white)		Appelez-nous	-
37	9756485BL		Trim, Bottom Vent (black)		Appelez-nous	-
37	9756485BT		Trim, Bottom Vent (biscuit)		Appelez-nous	-
37	9756485SS		Trim, Bottom Vent (stainless)		Appelez-nous	-
38	WP4449743		Screw   (Replaces: 4449743)				$ 7.19
39	WP4450118		Nut   (Replaces: 4450118)				$ 7.95
40	WPW10179152		Rack, Oven   (Replaces: 4448717)			Immediately	$ 119.61
41	WPW10207397		Element, Convection Bake   (Replaces: 9760766)			Immediately	$ 77.15
42	WP8203546		Block, Terminal   (Replaces: 4449868)			Immediately	$ 30.13
43	W11684512		Screw   (Replaces: 3400080)				$ 14.10
44	W10115858		Box, Terminal   (Replaces: 9757404)				$ 116.19
45	9757405		Cover, Terminal Box				$ 43.66
46	9759721		Insulator, Terminal Box		Appelez-nous	-
47	WP9761958		Block, Terminal   (Replaces: 9761958)			Immediately	$ 44.13
NI	9756817		Insulation, Wrap				$ 76.03
NI	9756470		Insulation, Back				$ 68.08
