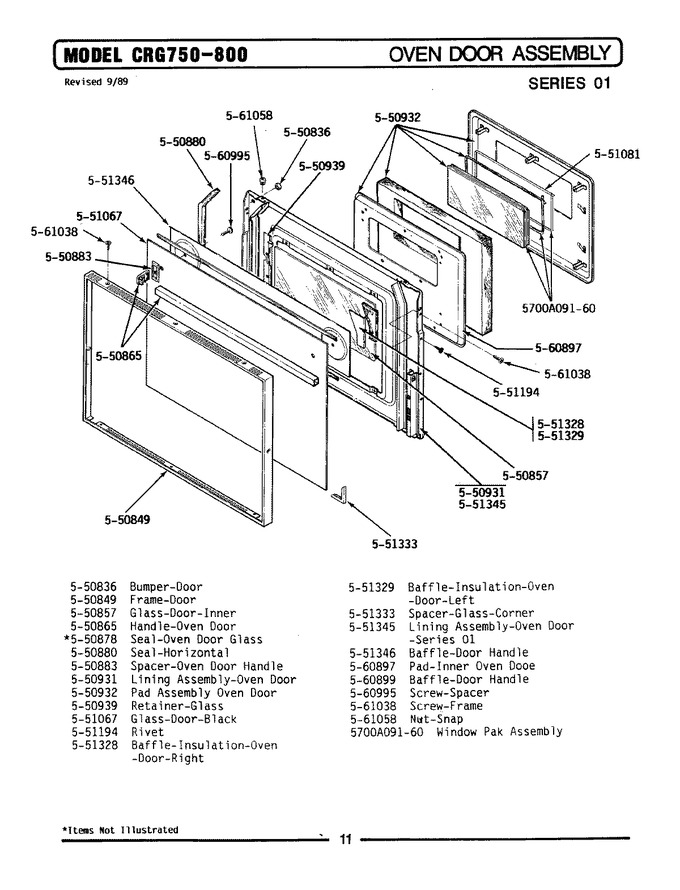

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	550836		Bumper, Door		Appelez-nous	-
2	550849		Frame Assy, Door		Appelez-nous	-
3	550857		Glass, Inner Door		Appelez-nous	-
4	550865		Handle, Oven Door		Appelez-nous	-
5	WP854334		Seal, Oven Door Glass   (Replaces: 550878)				$ 12.55
6	Y550880		Seal, Horizontal		Appelez-nous	-
7	550883		Spacer, Oven Door Handle		Appelez-nous	-
8	550931		Lining Assy, Oven Door		Appelez-nous	-
9	Y550932		Pad, Oven Door		Appelez-nous	-
10	550939		Retainer, Glass		Appelez-nous	-
11	551067		Glass, Door Black		Appelez-nous	-
12	551194		Rivet		Appelez-nous	-
13	551328		Baffle, Insulation Oven Doo		Appelez-nous	-
14	551329		Baffle, Insulation Oven Doo		Appelez-nous	-
15	551333		Spacer, Glass Corner		Appelez-nous	-
16	551345		Lining Assy, Oven Door		Appelez-nous	-
17	551346		Baffle, Oven Door Handle		Appelez-nous	-
18	560897		Pad, Inner Oven Door		Appelez-nous	-
19	560899		Baffle, Dr. Handle		Appelez-nous	-
20	WP4159193		Screw, Spacer   (Replaces: 560995)				$ 4.56
21	WP7101P126-60		Screw, Door Frame   (Replaces: 561038)			Immediately	$ 7.52
22	WP7103P114-60		Nut, Snap   (Replaces: 561058)				$ 10.52
23	5700A091-60		Window Pak Assy.		Appelez-nous	-
