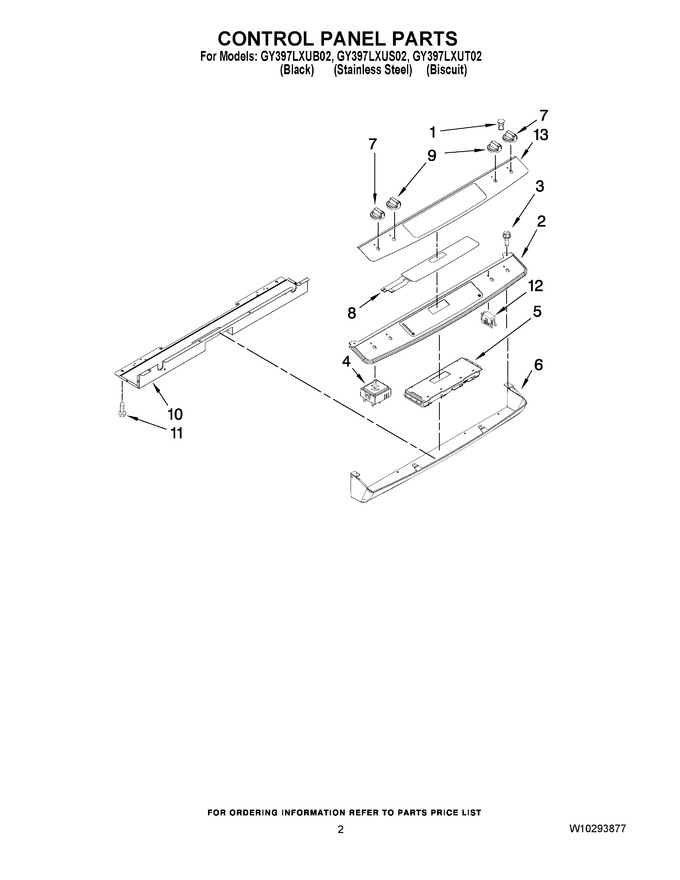

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP22001948 | Lens (Replaces: 7730P031-60) |
|
$ 12.69 | |||||
| 2 | 7720P537-60 | Panel, Control (biscuit) |
|
- | |||||
| 2 | 7720P535-60 | Panel, Control (black) |
|
$ 147.50 | |||||
| 2 | W10182766 | Panel, Control (s.steel) |
|
- | |||||
| 3 | WP59002061 | Screw (Replaces: 7101P077-60) |
|
$ 7.75 | |||||
| 4 | WP74010824 | Switch, Infinte (8`` (rf,lr)) (Replaces: 7450P011-60) |
|
Immediately | $ 112.13 | ||||
| 4 | WP7403P238-60 | Switch, Infinte (6`` (lf,rr)) (Replaces: 7403P373-60) |
|
Immediately | $ 64.20 | ||||
| 5 | 8507P390-60 | Control |
|
$ 367.00 | |||||
| 6 | 7720P541-60 | Panel,control(lwr) (biscuit) |
|
- | |||||
| 6 | W10185606 | Panel, Control (lwr) (black) |
|
$ 130.08 | |||||
| 7 | 7737P419-60 | Knob (lf,rr) (biscuit) |
|
- | |||||
| 7 | WP7737P414-60 | Knob (lf, Rr) (black) (Replaces: 7737P414-60) |
|
$ 21.07 | |||||
| 8 | WPW10207928 | Switch, Membrane (black) (Replaces: W10207928) |
|
$ 272.84 | |||||
| 8 | WPW10207932 | Switch, Membrane (biscuit) (Replaces: W10207932) |
|
$ 331.57 | |||||
| 9 | WP7737P417-60 | Knob (rf, Lr) (black) (Replaces: 7737P417-60) |
|
Immediately | $ 20.50 | ||||
| 9 | 7737P416-60 | Knob (rf,lr) (biscuit) |
|
$ 80.55 | |||||
| 10 | 3807F769-51 | Support, Control Panel |
|
- | |||||
| 11 | W10179558 | Screw |
|
- | |||||
| 12 | WP74004153 | Light, Indicator (Replaces: 7407P136-60) |
|
Immediately | $ 8.91 | ||||
| 13 | W10279829 | Overlay (s.steel Mdl Only) |
|
- |
